1080P Fiber Video Converter 4 channel Single Fiber SM 1310 / 1550nm FC For CCTV
1080P Fiber Video Converter 4 channel Single Fiber SM 1310 / 1550nm FC For CCTV
1080P Fiber Video Converter 4 channel Single Fiber SM 1310 / 1550nm FC For CCTV
1080P Fiber Video Converter 4 channel Single Fiber SM 1310 / 1550nm FC For CCTV
1080P Fiber Video Converter 4 channel Single Fiber SM 1310 / 1550nm FC For CCTV
1080P Fiber Video Converter 4 channel Single Fiber SM 1310 / 1550nm FC For CCTV
1080P Fiber Video Converter 4 channel Single Fiber SM 1310 / 1550nm FC For CCTV
1080P Fiber Video Converter 4 channel Single Fiber SM 1310 / 1550nm FC For CCTV
1080P Fiber Video Converter 4 channel Single Fiber SM 1310 / 1550nm FC For CCTV
1080P Fiber Video Converter 4 channel Single Fiber SM 1310 / 1550nm FC For CCTV
1080P Fiber Video Converter 4 channel Single Fiber SM 1310 / 1550nm FC For CCTV
1080P Fiber Video Converter 4 channel Single Fiber SM 1310 / 1550nm FC For CCTV
Specifications
Brand Name :
NUFIBER
Model Number :
NF-4V-T/R-F20-1080P
Certification :
CE,FCC,ROHS
Place of Origin :
China
MOQ :
1 pair
Payment Terms :
T/T, Western Union
Supply Ability :
1000 pairs per month
Delivery Time :
1-2 work days
Packaging Details :
10 pairs/ carton, carton size: 550*320*320mm
Product Name :
HD Fiber Video Converter
Color :
Black
Video :
4Channel BNC
Fiber Type :
Single mode Simplex
Distance :
20km
Fiber Connector :
FC (SC/ST Optional)
OEM & ODM :
Accepted
Power Supply :
5VDC
Wavelength :
1310nm/1550nm
Manufacturer :
Yes
Material :
Iron Case
Description

1080P Fiber Video Converter Transmitter Receiver 4channel Video Single Fiber SM 1310/1550nm FC for CCTV

Description

The converter can simultaneously transmit 4ch HD-CVI/TVI/AHD over one multimode or single-mode optical fiber. LED indicates instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment. It is without loss and non-compression real time transmission.

Key Features

Non-compression coding technology;
Automatically identify formats of input videos;
Support 4ch HD-CVI/TVI/AHD signal and controlling data simultaneously through coaxial cable;
DC 5V power supply;
Support 720p/25,720p/30,720p/50,720p/60,960p,1080p/25,1080p/30 video etc;
Through LED indicators to inform its functional mode;
Industrial wide range of operational temperature;
Plug and play, simple installation.

Applications

City traffic monitoring system
Public security, safe city monitoring system
Highway security protection, charging system

Building, campus monitoring net
Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
electric power, oilfield, television program transmission system
Gymnasium (live video, audio transmission)


Technical Parameters

Feature Description





optical

 Fiber Type Multi-mode fiber or Single mode fiber
Fiber Connector FC/ST/SC
Distance 0~80km (Optional)
Wavelength

Transmitter
Tx1310nm, Rx1550nm
Receiver
Tx1550nm,Rx1310nm.



Tx

 Input level >500mVp-p
self-adaption cable equilibrium

1080p:75-5
coaxial cable,300m
720p:75-5 coaxial cable,500m
Input/Output Impe 75Ω
Physical Interface 1/2/4/8/16channel BNC connector


Rx

 Output level 1Vp-p
Input/Output Impedance 75Ω
Physical Interface 1/2/4/8/16 channel BNC connector




Data

 Transmission Media Coaxial cable
Baud Rate 1200～9600bit/s
Bit Error Rate ≤10
Operation Mode Half-Duplex
Indicators LOS,PWR,DATA,VIDEO
Mean time between ailures (MTBF) ＞100 000 hours




General

 EPS DC5V
Power Consumption ≤5W
Operation temperature 0℃~75℃
Operation Humidity 10%～90%
Atmospheric Pressure 86kpa~106kpa
Mounting Method Wall-mounted

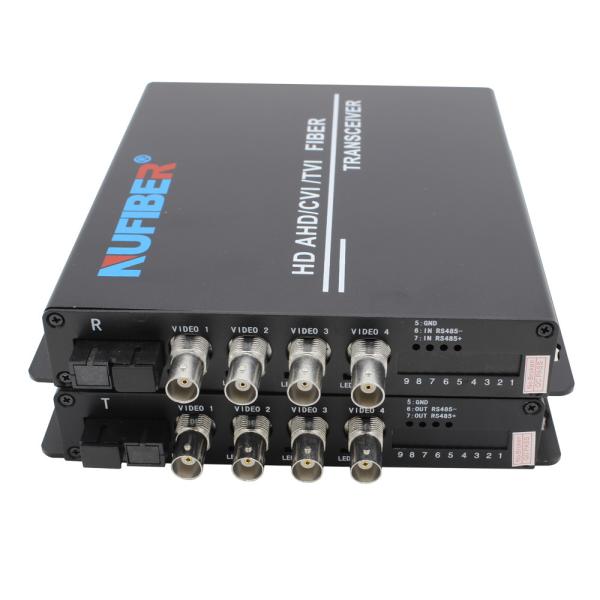

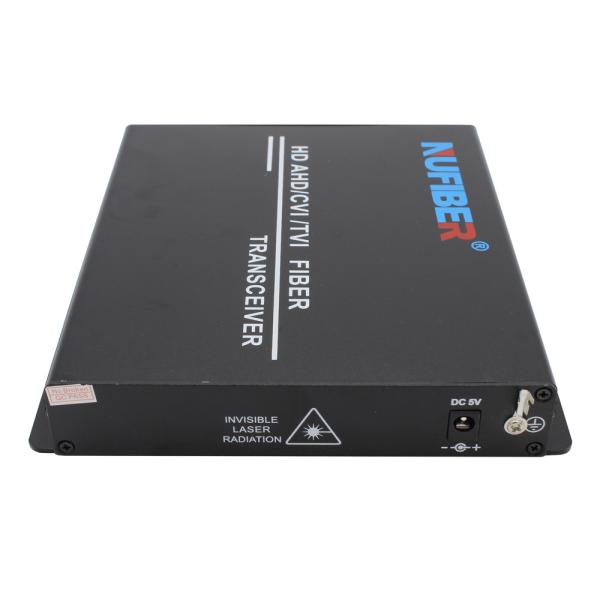

Products Show
1080P Fiber Video Converter 4 channel Single Fiber SM 1310 / 1550nm FC For CCTV1080P Fiber Video Converter 4 channel Single Fiber SM 1310 / 1550nm FC For CCTV1080P Fiber Video Converter 4 channel Single Fiber SM 1310 / 1550nm FC For CCTV1080P Fiber Video Converter 4 channel Single Fiber SM 1310 / 1550nm FC For CCTV



Connection Diagram
1080P Fiber Video Converter 4 channel Single Fiber SM 1310 / 1550nm FC For CCTV

Packing&Shipping Method

1080P Fiber Video Converter 4 channel Single Fiber SM 1310 / 1550nm FC For CCTV

1080P Fiber Video Converter 4 channel Single Fiber SM 1310 / 1550nm FC For CCTV
