XFP-10G-LR XFP Transceiver 10Gbps XFP LR Dual Fiber Single Mode 1310nm 20km LC DDM compatible with Cisco
XFP-10G-LR XFP Transceiver 10Gbps XFP LR Dual Fiber Single Mode 1310nm 20km LC DDM compatible with Cisco
XFP-10G-LR XFP Transceiver 10Gbps XFP LR Dual Fiber Single Mode 1310nm 20km LC DDM compatible with Cisco
XFP-10G-LR XFP Transceiver 10Gbps XFP LR Dual Fiber Single Mode 1310nm 20km LC DDM compatible with Cisco
XFP-10G-LR XFP Transceiver 10Gbps XFP LR Dual Fiber Single Mode 1310nm 20km LC DDM compatible with Cisco
XFP-10G-LR XFP Transceiver 10Gbps XFP LR Dual Fiber Single Mode 1310nm 20km LC DDM compatible with Cisco
XFP-10G-LR XFP Transceiver 10Gbps XFP LR Dual Fiber Single Mode 1310nm 20km LC DDM compatible with Cisco
XFP-10G-LR XFP Transceiver 10Gbps XFP LR Dual Fiber Single Mode 1310nm 20km LC DDM compatible with Cisco
Specifications
Brand Name :
NUFIBER
Model Number :
XFP-10G-LR
Certification :
CE FCC Rohs
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
L/C, T/T, Western Union,Credit Card
Supply Ability :
10,000 pcs per month
Delivery Time :
Within 1-3 work days
Packaging Details :
10pcs/plastic bag, 500pcs/carton
Data Rate :
10Gb/s
Wavelength :
1310nm
Distance :
10km/20km
Connector :
LC
DDM :
Support
Fiber Type :
Single Mode Duplex
Power Supply :
3.3V
Working Temperature :
0~70℃
Warranty :
1 year
Compatibility :
Cisco, HP, Huawei, Finisar...
Manufacturer :
Yes
Description

10Gbps XFP LR Dual Fiber Single Mode 1310nm 20km LC DDM compatible with Cisco

Ordering List:

10G XFP BIDI
XFP-10G-BX20-SM1270 10G XFP 1270nmTx/1330nmRx BIDI SMF LC 20KM
XFP-10G-BX20-SM1330 10G XFP 1330nmTx/1270nmRx BIDI SMF LC 20KM
XFP-10G-BX40-SM1270 10G XFP 1270nmTx/1330nmRx BIDI SMF LC 40KM
XFP-10G-BX40-SM1330 10G XFP 1330nmTx/1270nmRx BIDI SMF LC 40KM
XFP-10G-BX60-SM1270 10G XFP 1270nmTx/1330nmRx BIDI SMF LC 60KM
XFP-10G-BX60-SM1330 10G XFP 1330nmTx/1270nmRx BIDI SMF LC 60KM
10G XFP Duplex
XFP-10GB-SR 10G XFP SR Multi mode dual fiber LC 850nm 300M
XFP-10GB-LR 10G XFP LR Single mode dual fiber LC 1310nm 20km
XFP-10GB-ER 10GXFP ER Single mode dual fiber LC 1550nm 40km
XFP-10GB-ZR 10G XFP ZR Single mode dual fiber LC 1550nm 80km
XFP-10GB-ZR100 10G XFP ZR Single mode dual fiber LC 1550nm 100km
XFP-10G-CW10-XX 1270-1330nm CWDM XFP 10km
XFP-10G-CW10-XX 1350-1450nm CWDM XFP 10km
XFP-10G-CW20-XX 1270-1330nm CWDM XFP 20km
XFP-10G-CW40-XX 1470-1610nm CWDM XFP 40km
XFP-10G-CW80-XX 1470-1610nm CWDM XFP 80km
XFP-10G-DW40-CHXX DWDM XFP 40km
XFP-10G-DW80-CHXX DWDM XFP 80km
XFP-10G-DW100-CHXX DWDM XFP 100km

Description

NuFiber XFP-10G-LR Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification. They comply with 10-Gigabit Ethernet 10GBASE-LR/LW per IEEE 802.3ae and 10G Fibre Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA.

Features:

1. Supports 9.95 to 11.3Gb/s bit rates

2. Hot-Pluggable 30 pin connector

3. Compliant with XFP MSA
4.Transmission distance of 10km over Single mode fiber
5.1310nm DFB laser transmitter.
6.Duplex LC connector
7.2-wire interface for management and diagnostic monitor
8.XFI electrical interface with AC coupling
9.Single power supply voltages : +3.3V
10.Temperature range 0°C to 70°C
11.Power dissipation: <1.5W
12.RoHS Compliant Part

Applications:

10GBASE-LR/LW Ethernet
SONET OC-192 /SDH
1200-SM-LL-L 10G Fibre Channel
Other optical links

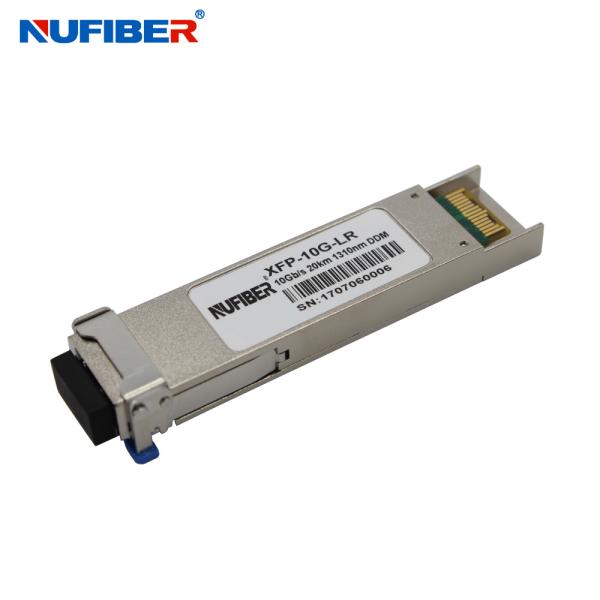

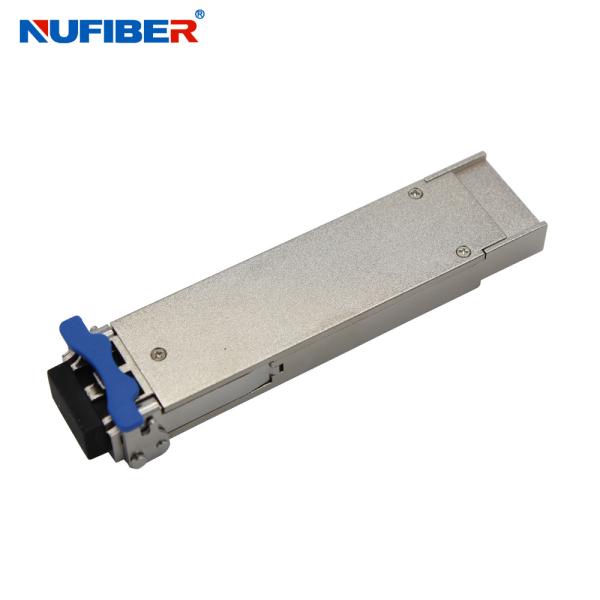

Product Pictures:

XFP-10G-LR XFP Transceiver 10Gbps XFP LR Dual Fiber Single Mode 1310nm 20km LC DDM compatible with CiscoXFP-10G-LR XFP Transceiver 10Gbps XFP LR Dual Fiber Single Mode 1310nm 20km LC DDM compatible with Cisco

XFP-10G-LR XFP Transceiver 10Gbps XFP LR Dual Fiber Single Mode 1310nm 20km LC DDM compatible with CiscoXFP-10G-LR XFP Transceiver 10Gbps XFP LR Dual Fiber Single Mode 1310nm 20km LC DDM compatible with Cisco

Packaging & Shipping

XFP-10G-LR XFP Transceiver 10Gbps XFP LR Dual Fiber Single Mode 1310nm 20km LC DDM compatible with Cisco

XFP-10G-LR XFP Transceiver 10Gbps XFP LR Dual Fiber Single Mode 1310nm 20km LC DDM compatible with Cisco

Factory Show

XFP-10G-LR XFP Transceiver 10Gbps XFP LR Dual Fiber Single Mode 1310nm 20km LC DDM compatible with Cisco
