Fiber Media Converter Single Mode to Multimode 1310nm to 850nm SFP to SFP Media Converter
Fiber Media Converter Single Mode to Multimode 1310nm to 850nm SFP to SFP Media Converter
Fiber Media Converter Single Mode to Multimode 1310nm to 850nm SFP to SFP Media Converter
Fiber Media Converter Single Mode to Multimode 1310nm to 850nm SFP to SFP Media Converter
Fiber Media Converter Single Mode to Multimode 1310nm to 850nm SFP to SFP Media Converter
Fiber Media Converter Single Mode to Multimode 1310nm to 850nm SFP to SFP Media Converter
Specifications
Brand Name :
NUFIBER
Model Number :
NF-T101
Certification :
CE
Place of Origin :
Shenzhen, China ( mainland)
MOQ :
1 piece
Payment Terms :
T/T, Western Union, Credit card
Supply Ability :
10000 pairs per month
Delivery Time :
within 1-3 working days after payment
Packaging Details :
Carton Packaging, the products are packed in international standard. Each carton is lined with a polythene sheet, thus preventng the contents from dampness
Fiber Type :
Depend on the SFP
Fiber Interface :
SFP
Connector :
SFP to SFP
Transmission rate :
10/100M,10/100/1000M
Distance :
Depend on the SFP
Wavelength :
Depend on the SFP
Warranty :
1 Year
Description

Fiber Media Converter Single Mode to Multimode 1310nm to 850nm SFP to SFP Media Converter

Overview
Nufiber’s NF-T101 has two SFP interfaces. It can converts various fiber digital signals between SFP modules of different wavelength, distance, mode(single / multi-mode,UTP/ fiber) under the two same signal rate, including Ethernet, ATM, SDH and monitor signal. Such as the converter of 1310/1550nm, 1490/1550nm. It adopts high rate convert circuit and high quality IC chips, high stability and performance, can be widely used in all kinds of fiber digital transmission.

Key Features
1. Realize digital signal conversion between the SFP modules under two same signal rate, but different wavelength, distance and mode type.

2. Support 2~2.5Gbs Digital optical signal conversion

3. Fast speed, shorter delay, High efficiency

4. Includes two SFP ports

5. Protocal-independent operation

6. Converts between dissimilar fiber modes and Wavelengths

7. Includes diagnostic LEDs

8. Hot-swappable architecture Small and Wavelengths

9. Supports an external 5VDC power module

10.Extended temperature range from 0°C to 70 °C

11. Cam use all standard MSA compliant SFP devices

12. Provides Extensive Diagnostic LED function

Technical Parameter

Interface 2 SFP port
Transfer speed rate 2~2.5Gbps
Power External power supply AC100~240V/DC5V

LED indicator

 Power: power status
FX1Link, FX2 Link: SFP connection status indicator, easy to monitor working and bug diagnose.
Environment Temp. 0 °C to +70 °C
Storage Temp. -20 °C to +80 °C
Humidity 5% to 90% (non-condensing)
Dimensions 26×71×93mm(H×W×D)


Connection Diagram


Fiber Media Converter Single Mode to Multimode 1310nm to 850nm SFP to SFP Media ConverterFiber Media Converter Single Mode to Multimode 1310nm to 850nm SFP to SFP Media Converter

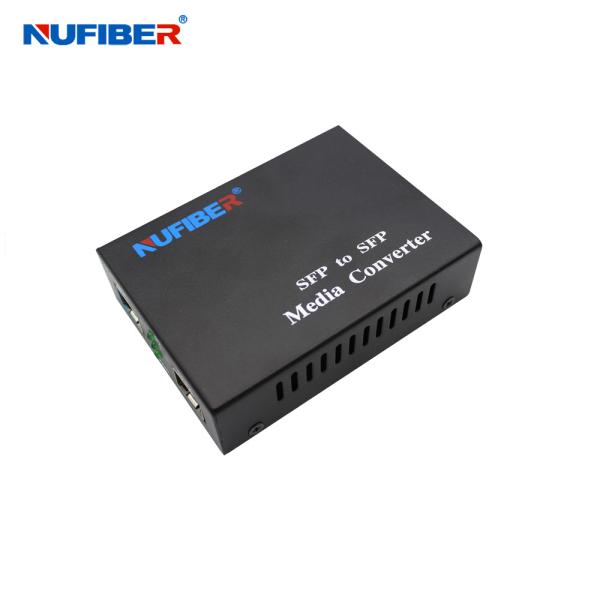

Products show

Fiber Media Converter Single Mode to Multimode 1310nm to 850nm SFP to SFP Media Converter

Fiber Media Converter Single Mode to Multimode 1310nm to 850nm SFP to SFP Media Converter

Fiber Media Converter Single Mode to Multimode 1310nm to 850nm SFP to SFP Media Converter

Fiber Media Converter Single Mode to Multimode 1310nm to 850nm SFP to SFP Media Converter

Fiber Media Converter Single Mode to Multimode 1310nm to 850nm SFP to SFP Media Converter




Packaging and shipping

Fiber Media Converter Single Mode to Multimode 1310nm to 850nm SFP to SFP Media ConverterFiber Media Converter Single Mode to Multimode 1310nm to 850nm SFP to SFP Media Converter
