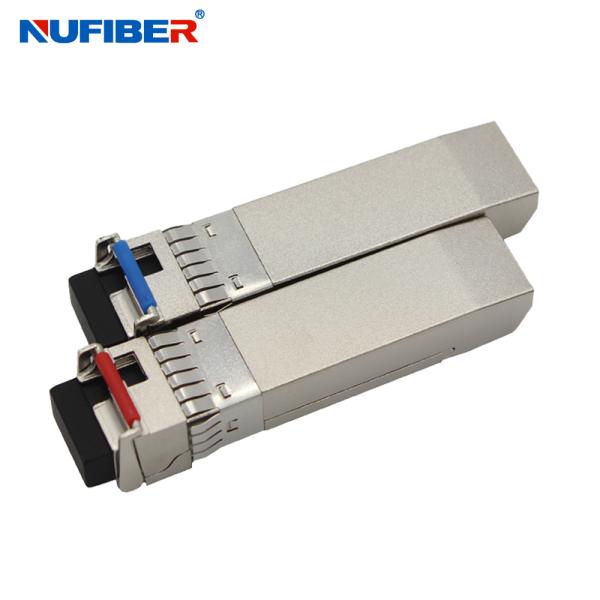

Singlemode 60km 10g Sfp+ Module SFP-10G-BX60-SM1270 OEM ODM
Singlemode 60km 10g Sfp+ Module SFP-10G-BX60-SM1270 OEM ODM
Singlemode 60km 10g Sfp+ Module SFP-10G-BX60-SM1270 OEM ODM
Singlemode 60km 10g Sfp+ Module SFP-10G-BX60-SM1270 OEM ODM
Specifications
Brand Name :
NuFiber
Model Number :
SFP-10G-BX60-SM1270
Certification :
CE FCC Rohs
Place of Origin :
China
MOQ :
1 pair
Payment Terms :
L/C, T/T, Western Union,Credit Card
Supply Ability :
10,000 pcs per month
Delivery Time :
Within 1-3 work days
Packaging Details :
10pcs/plastic bag, 500pcs/carton
Data Rate :
10Gb/s
Wavelength :
1270/1330nm
Distance :
60km
Connector :
LC
DDM :
Support
Fiber Type :
Single fiber SM
Power Supply :
3.3V
Working Temperature :
0~70℃
Warranty :
1 year
Compatibility :
Huawei, Cisco, HP, H3C...
Manufacturer :
Yes
Description

10Gb/s SFP+ Transceiver SFP-10G-BX60-SM1270 single fiber singlemode 60km LC DDM

Description

Nufiber’ SFP-10G-BX60-SM1270 & SFP-10G-BX60-SM1330 Bi-directional 10Gb/s (SFP+) transceivers are compliant with the current SFP+ Multi-Source Agreement (MSA) Specification. They comply with 10GBASE-LR/LW Ethernet, SONET OC-192 / SDH and 10G Fiber Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the SFP+ MSA.

Features

  • Supports 9.95Gb/s to 11.3Gb/s bit rates
  • Hot-pluggable SFP+ footprint
  • Single LC for Bi-directional Transmission
  • Maximum link length of 60km
  • Built-in 1270/1330 WDM Filter
  • Uncooled 1270nm or 1330nm CWDM DFB Laser.
  • Power dissipation <1.5W
  • No Reference Clock required
  • Built-in digital diagnostic functions
  • Temperature range 0°C to 70°C
  • Very low EMI and excellent ESD protection
  • RoHS Compliant Part

Applications

  • 10GBASE-ER/EW Ethernet
  • SONET OC-192 / SDH
  • 10G Fibre Channel

Optical Parameters

Parameter Symbol Min Typ Max Unit Ref.
Transmitter
Bit Rate BR 9.9 11.3 Gb/s
Optical Wavelength SFP-10G-BX60-SM1270 λ 1260 1270 1280 nm
SFP-10G-BX60-SM1330 1320 1330 1340
Average output power Po +1 +5 dBm
Optical Extinction Ratio ER 3.5 dB
Spectral width Δλ 1 nm
Side Mode Suppression Ratio SMSR 30 dB
Optical Eye Mask Compliant with IEEE802.3ae
Receiver
Bit Rate BR 9.9 11.3 Gb/s
Optical Wavelength SFP-10G-BX60-SM1330 λ 1320 1330 1340 nm
SFP-10G-BX60-SM1270 1260 1270 1280
Receiver Sensitivity Sen -22 dBm 1
Maximum Input Power PMAX -7 dBm
LOS De-Assert LOSD -23 dBm
LOS Assert LOSA -33 dBm
LOS Hysteresis LOSH 0.5 4 dB

Ordering information

BiDi SFP Transceiver
Part Number Product Description
155Mb/s SFP Transceiver
FE-BX20-SM1310/1550 155Mbps,BiDi 1310nm/1550nm SM 20km LC, DDM 0°C~+70°C
FE-BX40-SM1310/1550 155Mbps, BiDi 1310nm/1550nm SM 40km LC, DDM 0°C~+70°C
FE-BX80-SM1310/1550 155Mbps, BiDi 1310nm/1550nm SM 80km LC, DDM 0°C~+70°C
FE-BX100-SM1310/1550 155Mbps, BiDi 1310nm/1550nm SM 120km LC, DDM 0°C~+70°C
1.25Gbps SFP Transceiver
GE-BX10-SM1310/1550 1.25Gbps, BiDi 1310nm/1550nm SM 10km LC,DDM 0°C~+70°C
GE-BX20-SM1310/1550 1.25Gbps, BiDi 1310nm/1550nm SM 20km LC, DDM 0°C~+70°C
GE-BX40-SM1310/1550 1.25Gbps, BiDi 1310nm/1550nm SM 40km LC, DDM 0°C~+70°C
GE-BX60-SM1310/1550 1.25Gbps, BiDi 1310nm/1550nm SM 60km LC, DDM 0°C~+70°C
GE-BX80-SM1310/1550 1.25Gbps, BiDi 1310nm/1550nm SM 80km LC, DDM 0°C~+70°C
GE-BX100-SM1310/1550 1.25Gbps, BiDi 1310nm/1550nm SM 120km LC, DDM 0°C~+70°C
10Gbps SFP+ Transceiver
SFP-10G-BX20-SM1330/1270 10Gbps, BiDi 1330nm/1270nm SM 20km LC,DDM 0°C~+70°C
SFP-10G-BX40-SM1330/1270 10Gbps, BiDi 1330nm/1270nm SM 40km LC,DDM 0°C~+70°C
SFP-10G-BX60-SM1330/1270 10Gbps, BiDi 1330nm/1270nm SM 60km LC,DDM 0°C~+70°C
SFP-10G-BX80-SM1490/1550 10Gbps, BiDi 1490nm/1550nm SM 80km LC,DDM 0°C~+70°C
XFP Transceiver
XFP-BX20-SM1330/1270 10Gbps, BiDi 1330nm/1270nm SM 20km LC,DDM 0°C~+70°C
XFP-BX40-SM1330/1270 10Gbps, BiDi 1330nm/1270nm SM 40km LC,DDM 0°C~+70°C
XFP-BX60-SM1330/1270 10Gbps, BiDi 1330nm/1270nm SM 60km LC,DDM 0°C~+70°C
