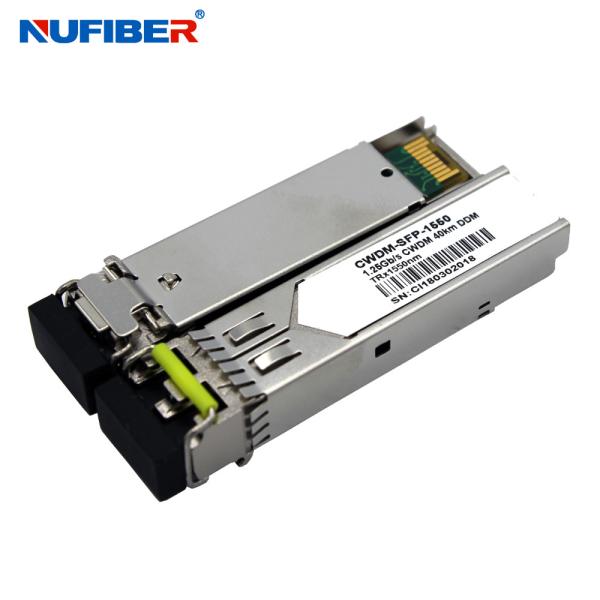

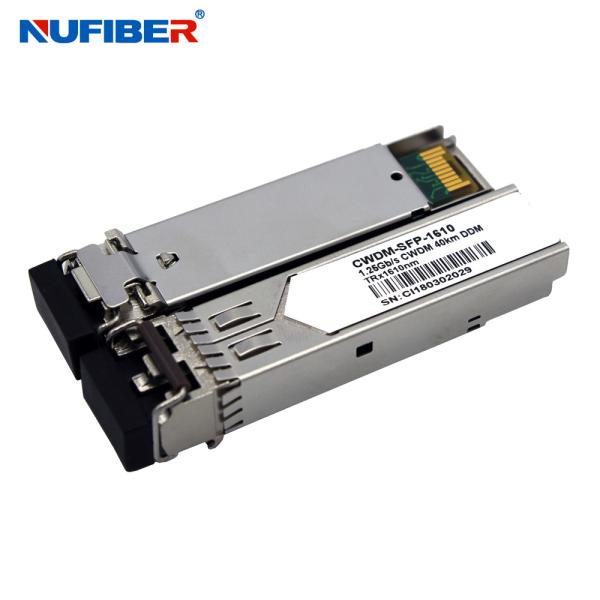

CWDM 1.25G SFP Transceiver 160km 1470nm 1610nm Duplex Sfp Lc Module
CWDM 1.25G SFP Transceiver 160km 1470nm 1610nm Duplex Sfp Lc Module
CWDM 1.25G SFP Transceiver 160km 1470nm 1610nm Duplex Sfp Lc Module
CWDM 1.25G SFP Transceiver 160km 1470nm 1610nm Duplex Sfp Lc Module
CWDM 1.25G SFP Transceiver 160km 1470nm 1610nm Duplex Sfp Lc Module
CWDM 1.25G SFP Transceiver 160km 1470nm 1610nm Duplex Sfp Lc Module
CWDM 1.25G SFP Transceiver 160km 1470nm 1610nm Duplex Sfp Lc Module
CWDM 1.25G SFP Transceiver 160km 1470nm 1610nm Duplex Sfp Lc Module
Specifications
Brand Name :
NuFiber
Model Number :
CWDM-SFP-GE160-1470
Certification :
CE FCC Rohs
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
L/C, T/T, Western Union,Credit Card
Supply Ability :
100,000 pcs per month
Delivery Time :
Within 1-3 work days
Packaging Details :
10pcs/plastic bag, 500pcs/carton
Data Rate :
1.25Gb/s
Wavelength :
1470~1610nm
Distance :
160KM
Connector :
LC
Packaging :
CWDM SFP
Fiber Type :
Duplex LC SM
Power Supply :
3.3V
Working Temperature :
0-70℃
Manufacturer :
Yes
Compatible :
Cisco Huawei HP Juniper etc...
Warranty :
1 year
Description

1.25Gb/s 160km CWDM SFP Transceiver Duplex LC 1470nm ~ 1610nm SM DDM

Description

The CWDM-SFP160-1470~1610 series single mode transceiver is small form factor pluggable module for duplex optical data communications such as Gigabit Ethernet 1000BASE-ZX and Fiber Channel 1x SM-LC-L FC-PI. It is with the SFP 20-pin connector to allow hot plug capability. This module is designed for single mode fiber and operates at a nominal wavelength of CWDM wavelength. There are eighteen center wavelengths available from 1470nm to 1610nm, with each step 20nm.

The transmitter section uses a multiple quantum well CWDM DFB laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. The CWDM-SFP160-1470~1610 series are designed to be compliant with SFF-8472.

Features

  • Data-rate of 1.25Gbps operation
  • 8-Wavelength CWDM DFB LD Transmitter from
  • 1470nm to 1610nm, with Step 20nm
  • Compliant with SFP MSA and SFF-8472
  • Compatible with SONET OC-24-LR-1
  • Compatible with RoHS
  • +3.3V single power supply
  • Hot-Pluggable SFP Footprint Duplex LC
  • Operating case temperature
  • Standard : 0°C to +70°C
  • Extended: -20°C to +85°C
  • Industrial: -40°C to +85°C

Applications

  • Gigabit Ethernet
  • Fiber Channel Switch Infrastructure
  • Router/Server interface
  • Other optical transmission systems

Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)

Parameter Symbol Min. Typical Max. Unit Note
Transmitter Section:
Center Wavelength λc λ-6 λ λ+7.5 nm
Spectral Width(-20dB) △λ 1 nm
Side Mode Suppression Ratio SMSR 30 dB
Optical Output Power Pout 2 +5 dBm 1
Optical Rise/Fall Time tr / tf 260 ps 2
Extinction Ratio ER 8.2 dB
Eye Mask for Optical Output Compliant with IEEE802.3z(class 1 laser safety)
Receiver Section:
Optical Input Wavelength λc 1460 1620 nm
Receiver Overload Pol -8 dBm 3
RX Sensitivity Sen -34 dBm 3
RX_LOS Assert LOS A -40 dBm
RX_LOS De-assert LOS D -32 dBm
RX_LOS Hysteresis LOS H 0.5 dB
General Specifications:
Data Rate BR 1.063/1.25 Gb/s
Bit Error Rate BER 10-12
Max. Supported Link Length on 9/125μm SMF@1.25Gb/s LMAX 160 km
Total System Budget LB 24 dB

Ordering Information

Dual Fiber SFP Transceiver
Part Number Product Description
155Mbp/s SFP Transceiver
FE-SX-MM850 155Mbps, 850nm MM 2km Dual LC, DDM 0°C~+70°C
FE-SX-MM1310 155Mbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C
FE-LX20-SM1310 155Mbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C
FE-LX40-SM1310 155Mbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C
FE-LX80-SM1550 155Mbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C
FE-LX120-SM1550 155Mbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C
1.25Gbps SFP Transceiver
GE-SX-MM850 1.25Gbps, 850nm MM 500m Dual LC, DDM 0°C~+70°C
GE-SX-MM1310 1.25gbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C
GE-LX20-SM1310 1.25Gbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C
GE-LX40-SM1310 1.25Gbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C
GE-LX60-SM1550 1.25Gbps, 1550nm SM 60km Dual LC, DDM 0°C~+70°C
GE-LX80-SM1550 1.25Gbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C
GE-LX120-SM1550 1.25Gbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C
10Gbps SFP Transceiver
SFP+-10GB-SR 10G SFP+ SR Multi mode dual fiber LC 850nm 300M
SFP+-10GB-LRM 10G SFP+ LRM Multi mode dual fiber LC 1310nm 220M
SFP+-10GB-LR 10G SFP+ LR Single mode dual fiber LC 1310nm 20km
SFP+-10GB-ERM 10G SFP+ER Single mode dual fiber LC 1310nm 40km
SFP+-10GB-ER 10G SFP+ER Single mode dual fiber LC 1550nm 40km
SFP+-10GB-ZR 10G SFP+ZR Single mode dual fiber LC 1550nm 80km
SFP+10G40-CWDM 1470 ~1610nm CWDM SFP+ 40km
SFP+10G80-CWDM 1470~1570nm CWDM SFP+ 80km
SFP+10G80-CWDM 1590~1610nm CWDM SFP+ 80km
SFP+10G40-DWDM DWDM SFP+ 40km
SFP+10G80-DWDM DWDM SFP+ 80km
XFP Transceiver
XFP-10G-SR 10G XFP SR Multi mode dual fiber LC 850nm 300M
XFP-10G-LRM 10G XFP LRM Single mode dual fiber LC 1310nm 10kM
XFP-10G-LR 10G XFP LR Single mode dual fiber LC 1310nm 20km
XFP-10G-ER 10G XFP ER Single mode dual fiber LC 1550nm 40km
XFP-10G-ZR 10G XFP ZR Single mode dual fiber LC 1550nm 80km
CWDM DWDM Transceiver
XFP-CWDM-40xx 1470 ~1610nm CWDM XFP 40km
XFP-CWDM-80xx 1470~1570nm CWDM XFP 80km
XFP-CWDM-80xx 1590~1610nm CWDM XFP 80km
XFP-DWDM-40xx DWDM XFP 40km
XFP-DWDM-80xx DWDM XFP 80km
XFP-DWDM-100xx DWDM XFP100km

Products Show

CWDM 1.25G SFP Transceiver 160km 1470nm 1610nm Duplex Sfp Lc Module

CWDM 1.25G SFP Transceiver 160km 1470nm 1610nm Duplex Sfp Lc Module

CWDM 1.25G SFP Transceiver 160km 1470nm 1610nm Duplex Sfp Lc Module

CWDM 1.25G SFP Transceiver 160km 1470nm 1610nm Duplex Sfp Lc Module

Packing&Shipping

CWDM 1.25G SFP Transceiver 160km 1470nm 1610nm Duplex Sfp Lc ModuleCWDM 1.25G SFP Transceiver 160km 1470nm 1610nm Duplex Sfp Lc Module

Factory Show
CWDM 1.25G SFP Transceiver 160km 1470nm 1610nm Duplex Sfp Lc Module
