Specifications
Brand Name :
NUFIBER
Model Number :
QSFP-QSFP-AxM
Certification :
CE FCC Rohs
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
T/T, Western Union
Supply Ability :
5,000 pcs per month
Delivery Time :
1-3 working days
Packaging Details :
Standard Export Package
Product Name :

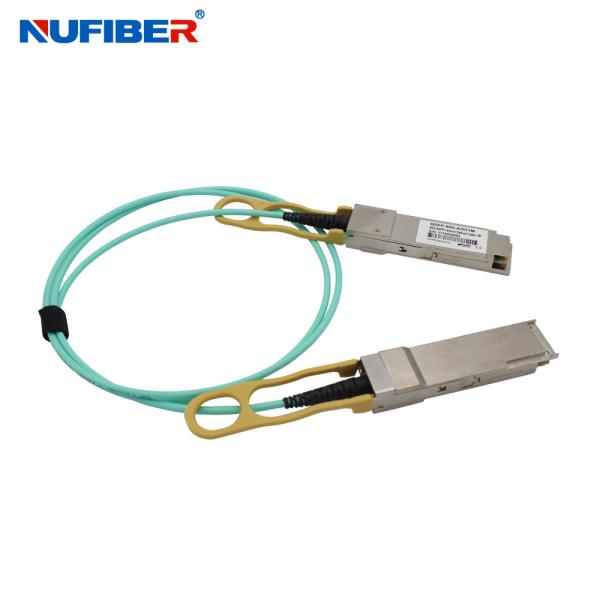

40G QSFP+ to 40G QSFP+ AOC
Connector Type :
QSFP+ to QSFP+
Max Data Rate :
40Gbps
Cable Length :
Customized
Temperature :
0 to 70°C
Optical :
VCSEL Laser
Warranty :
1 Year
Description

High Speed Compatible Cisco QSFP 40G AOC Active Optical Fiber jumper cable 1m 2m 3m 5m 7m 20m

Description:

The QSFP+ active optic cables are a high performance, low power consumption, long reach inter connect solution supporting Infini Band QDR/DDR/SDR,12.5G/10G/8G/4G/2G fiber channel ,PCIe and SAS. It is compliant with the QSFP MSA and IEEE P802.3ba. QSFP AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 11.3Gb/s, providing an aggregated rate of 45.2Gb/s.QSFP+AOC is one kind of parallel transceiver which provides increased port density and total system cost savings.

Key Features:

Four-channel full-duplex active optical cable
Transmission data rate up to 11.3Gbit/s per channel
Reliable VCSEL array technology using multimode fiber
Available in standard lengths of 3, 5, 10, 15, 20, 30, 50,100m
Low power consumption <1.5W
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS 6 compliant
Hot Pluggable QSFP form factor


Application:

Infiniband QDR/DDR/SDR
Datacenter
40G Ethernet
4G/8G/10G Fibre Channel

Standard:

(1)Compliant with IEEE 802.3ba-2010,Annex 86A for 40GBASE-SR4;

(2)Compliant with InfiniBand EDR,FDR,QDR,DDR,SDR;

(3)Compliant with QSFP MSA(SFF-8436);

(4)Compliant with SFP MSA(SFF-8431);

(5)RoHS Compliant:lead-free.

Products show:

Factory Show:

QSFP 40G AOC Cable Fiber Jumper Cable 3m 5m 7m 20m Compatible Cisco

QSFP 40G AOC Cable Fiber Jumper Cable 3m 5m 7m 20m Compatible Cisco

QSFP 40G AOC Cable Fiber Jumper Cable 3m 5m 7m 20m Compatible Cisco

Packing & Shipping:

QSFP 40G AOC Cable Fiber Jumper Cable 3m 5m 7m 20m Compatible Cisco

QSFP 40G AOC Cable Fiber Jumper Cable 3m 5m 7m 20m Compatible Cisco

FAQ:

QSFP 40G AOC Cable Fiber Jumper Cable 3m 5m 7m 20m Compatible Cisco
