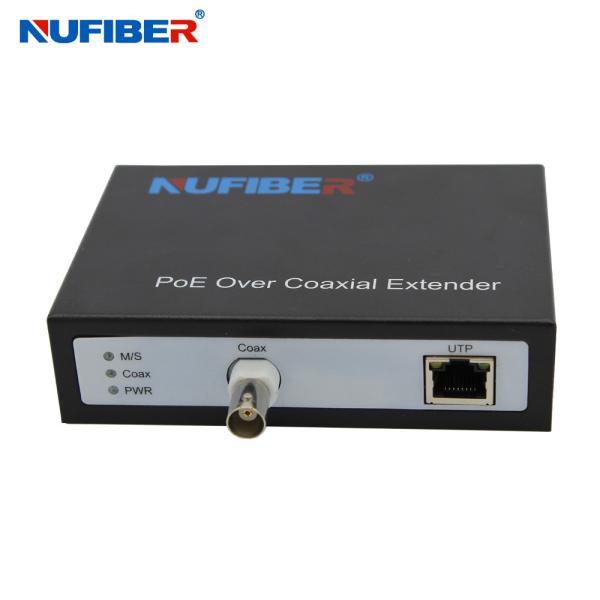

POC Ethernet Over Coaxial Converter 1BNC Port 1 RJ45 Port
POC Ethernet Over Coaxial Converter 1BNC Port 1 RJ45 Port
POC Ethernet Over Coaxial Converter 1BNC Port 1 RJ45 Port
POC Ethernet Over Coaxial Converter 1BNC Port 1 RJ45 Port
POC Ethernet Over Coaxial Converter 1BNC Port 1 RJ45 Port
POC Ethernet Over Coaxial Converter 1BNC Port 1 RJ45 Port
POC Ethernet Over Coaxial Converter 1BNC Port 1 RJ45 Port
POC Ethernet Over Coaxial Converter 1BNC Port 1 RJ45 Port
Specifications
Brand Name :
NuFiber
Model Number :
NF-9801-PSE/PD
Certification :
CE FCC ROHS
Place of Origin :
China
MOQ :
1 pair
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 pairs per month
Delivery Time :
1-3 work days
Packaging Details :
27pcs per caton, carton size: 550*320*320mm
Material :
Iron Case
Color :
Black
Transmission Media :
Coaxial Cable
Distance :
300 meters
BNC port :
1
RJ45 ports :
1
POE function :
Support
Power Supply :
48VDC
OEM :
Accepted
Size :
119mm*113mm*29mm
Description

10/100M 1 BNC port 1 RJ45 port POC Ethernet over Coaxial Converter with POE 300M

Description

Nufiber NF-9801-PSE/PD Ethernet over Coax Extender allows IP cameras to transmit over Coax cabling. It allows the system to extend IP cameras beyond cable distance limitations and also acts as a PoE inserter. The System transmits IP cameras over coax and can quickly turn any ordinary RG59U coaxial cable into a high speed network communication & PoE path. When operating over RG59U coaxial cable, the IP camera extender can operate for distances of up to 200 meters. NF-801E-PSE/PD Ethernet over Coax extender system consists of a transmitter and receiver which require very little installation time & absolutely no set up or configuration.

Features

1. Ethernet over Coax - Converts Ethernet UTP to transmit network data and PoE over standard coax cable.

2. Saves costs and time – Avoids rewiring and expense of traditional Ethernet UTP cable.

3. High data rate – Support 100 Base-T for high network bandwidth requirements of Mega-pixel cameras or multiple IP cameras.

4. Easy to install - No IP or MAC address configuration and other networking setup required.

5. Easy upgrade to IP - Converts existing analog CCTV system over coaxial cable to retrofit analog CCTV installations into IP Digital systems.

6. Extends standard Ethernet – Transmits10/100Base-T up to distances of 200 meters

7. Compatible capability - Fully transparent to Ethernet networks and higher layer protocols.

Parameter

Interface 10/100Base-TX IEEE 802.3af(15.4W) RJ45 ×1
BNC×1(Support POE/PSE-PD)
Transmission medium 75-5 coaxial cable, RG59
LED Indicators PWR(Power supply) M/S(Links/Data) LRE(Trunk Links) POE(Power over Ethernet) L/A(Links/Data)
Protocol standard IEEE 802.3i,IEEE 802.3u,IEEE 802.3x Flow Control,IEEE 802.3af DTE Power via MDI
Data rate 10/100Mbps
Transmission distance 1500M(No POE), 200~300M(with POE)
Performance Specification Store-and-forward
Network Latency Less than 20µs for 64-byte frames in Store and forwardmode for 100Mbps to 100Mbps transmission
DC Power input DC 48V(Peak Value 44~56V) , NF-9801-PD(NF801E-PD)
No power, NF-9801-PSE(NF801E-PSE)
Operating environment Operating temperature; -10℃~ +50℃
Storage temperature: -20℃~ +70℃
Operating humidity: 10%-90% non-condensing
Dimension 118*85*29mm

Products Show

POC Ethernet Over Coaxial Converter 1BNC Port 1 RJ45 Port

POC Ethernet Over Coaxial Converter 1BNC Port 1 RJ45 Port

Dimensions

POC Ethernet Over Coaxial Converter 1BNC Port 1 RJ45 Port

Connection Diagram

POC Ethernet Over Coaxial Converter 1BNC Port 1 RJ45 Port

Company Information

POC Ethernet Over Coaxial Converter 1BNC Port 1 RJ45 Port

FAQ

POC Ethernet Over Coaxial Converter 1BNC Port 1 RJ45 Port
