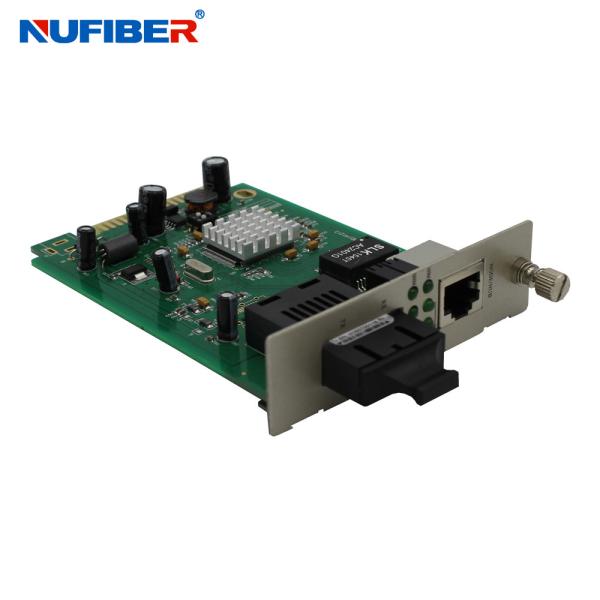

10/100/1000Mbps Card Type Fiber Media Converter 10/100/1000Base-TX to1000Base-FX Multi-Mode Dual Fiber SC NF-K1000C

Overview

The NF-K1000SX Series Card Type Gigabit Ethernet Media Converters are designed to transmit and receive 10/100/1000Mbps data over optical fiber. The electrical interface will Auto-Negotiate to a 100 Mbps or 1000Mbps Ethernet rate without any adjustments. The optical interface operates at a 1000 Mbps Ethernet rate. Both are environmentally hardened to operate in extreme temperatures. LED indicators are provided for confirming equipment operating status.

It can be used as a slide-in module to 19-inch 16-slot media converter chassis NF-RACK1600D-2U. These media chassis can assist in producing the power for the NF-K1000 to maintain the fiber-optic network at one location. As the Gigabit Media Converter fully complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX/SX, the Gigabit media conversion installation is quite quick and easy with its plug and play feature. The NF-K1000 also supports flow control and back pressure in half-duplex to eliminate packet loss.

Features

-10/100/1000Mbps Ethernet

-10/100/1000 BASE-T/TX electrical port

-1000 BASE-SX/LX optical port

-Electrical port supports Auto-Negotiation for 100Mbps or 1000Mbps, full duplex or half duplex data.

-Optical port supports 1000Mbps full duplex data

-Automatic MDI/MDI-X crossover

-Distances up to 2km for Multi mode;Up to 120km for Single mode

-Voltage transient protection on all power and signal input.output lines provides unconditional protection from power surges and other voltage transient events

-No in-field optical adjustments required

-LED Indicators

Applications

--Access Control Systems

--Building and Environmental Control Systems

--Tamper Switch

--10/100/1000 Mbps Ethernet Media Converter

--High Speed Computer Links

Parameter

Connection Diagram

Products show

Packaging and Shipping
