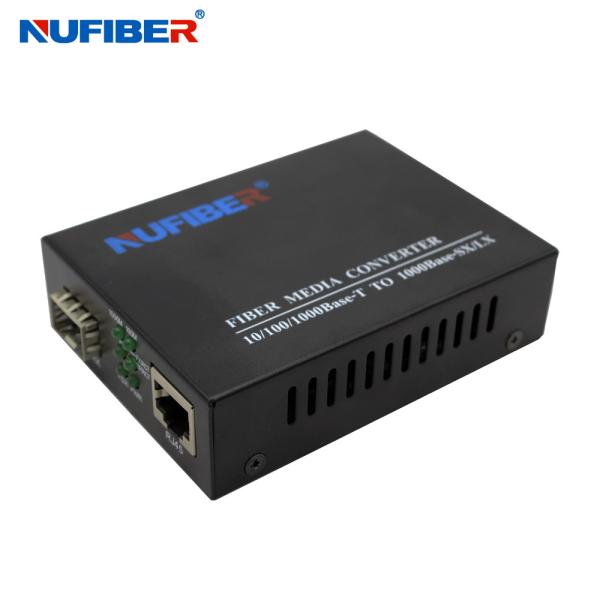

Sfp Fiber Media Converter TX RJ45 To FX SFP IEEE 802.3 Compliant
Sfp Fiber Media Converter TX RJ45 To FX SFP IEEE 802.3 Compliant
Sfp Fiber Media Converter TX RJ45 To FX SFP IEEE 802.3 Compliant
Sfp Fiber Media Converter TX RJ45 To FX SFP IEEE 802.3 Compliant
Sfp Fiber Media Converter TX RJ45 To FX SFP IEEE 802.3 Compliant
Sfp Fiber Media Converter TX RJ45 To FX SFP IEEE 802.3 Compliant
Sfp Fiber Media Converter TX RJ45 To FX SFP IEEE 802.3 Compliant
Sfp Fiber Media Converter TX RJ45 To FX SFP IEEE 802.3 Compliant
Specifications
Brand Name :
Nufiber
Model Number :
NF-C570-SFP
Certification :
CE
Place of Origin :
Shenzhen, China ( mainland)
MOQ :
1 piece
Payment Terms :
T/T, Western Union, Credit card
Supply Ability :
10000 pairs per month
Delivery Time :
within 1-3 working days after payment
Packaging Details :
Carton Packaging, the products are packed in international standard. Each carton is lined with a polythene sheet, thus preventng the contents from dampness
Fiber Type :
Depend on the SFP
Fiber Interface :
SFP
Connector :
RJ45 port
Transmission rate :
10/100M
Distance :
Depend on the SFP
Wavelength :
Depend on the SFP
Warranty :
1 year
Description

10/100Mbps SFP Fiber Media Converter 10/100Base-TX RJ45 Port to 100Base-FX SFP Slot NF-C570-SFP

Overview

This Ethernet media converter is designed to transmit and receive 10/100 Mbps data over optical fiber through user selectable SFP modules. These models require the ordering of sold-separately interchangeable SFP modules for fiber type, distance and connectors. The electrical interface will Auto-Negotiate to a 10 Mbps, or 100 Mbps Ethernet rate without any adjustments. The optical interface operates at a 100 Mbps Ethernet rate. LED indicators are provided for confirming equipment operating status.

Key Features

1. Plug and play, high performance, Low power consumption
2. Electrical port supports Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data.
3. Optical port supports 100 Mbps full duplex data
4. Automatic MDI/MDI-X crossover
5. Distances up to 120 km with optional SFPs
6. IEEE 802.3 compliant
7. Status LED's for TX,FX LINK/ACT, POWER,100M to easily monitor network status
8. 3 years warranty

Technical Parameter

Parameters Specifications
Standards IEEE802.3u (100Base-TX/FX), IEEE 802.3 (10Base-T)
Wavelength Multi-mode: 850 nm
Single-mode: 1310 nm, 1550 nm
Transmission Distance Fiber:
Multi-mode: 2km (fiber size: 50/125 μm)
Single-mode: 20/40/60/80 km (fiber size: 8.3/125, 8.7/125, 9/125 or 10/125 μm)
UTP:Cat. 5e or Cat. 6: 100 m
Port One RJ45 port, One SFP socket
MDI/MDI-X Auto selection
LED Indicator LED status indicators for rapidly ascertaining the operating status of the media converter and the link
Power Supply Outside: 5 V DC 1 A
Built-in: 100 V to 240 V AC 50 Hz to 60 Hz
Operating Temp 0 °C to 50 °C
Storage Temp -20 °C to 70 °C
Storage Humidity 5% to 95% (non-condensing)



Connection Diagram


Sfp Fiber Media Converter TX RJ45 To FX SFP IEEE 802.3 CompliantSfp Fiber Media Converter TX RJ45 To FX SFP IEEE 802.3 Compliant


Products show
Sfp Fiber Media Converter TX RJ45 To FX SFP IEEE 802.3 Compliant
Sfp Fiber Media Converter TX RJ45 To FX SFP IEEE 802.3 Compliant

Sfp Fiber Media Converter TX RJ45 To FX SFP IEEE 802.3 Compliant

Sfp Fiber Media Converter TX RJ45 To FX SFP IEEE 802.3 Compliant

Sfp Fiber Media Converter TX RJ45 To FX SFP IEEE 802.3 Compliant

Sfp Fiber Media Converter TX RJ45 To FX SFP IEEE 802.3 Compliant

Sfp Fiber Media Converter TX RJ45 To FX SFP IEEE 802.3 Compliant

Sfp Fiber Media Converter TX RJ45 To FX SFP IEEE 802.3 Compliant


Packaging and shipping

Sfp Fiber Media Converter TX RJ45 To FX SFP IEEE 802.3 CompliantSfp Fiber Media Converter TX RJ45 To FX SFP IEEE 802.3 Compliant
