Specifications
Brand Name :
Nufiber
Model Number :
NF-C2200SX
Certification :
CE
Place of Origin :
Shenzhen, China ( mainland)
MOQ :
1 piece
Payment Terms :
T/T, Western Union, Credit card
Supply Ability :
10000 pair per month
Delivery Time :
within 1-3 working days after payment
Packaging Details :
Carton Packaging, the products are packed in international standard. Each carton is lined with a polythene sheet, thus preventng the contents from dampness
Fiber Type :
MM Dual Fiber
Fiber Interface :
SC/ST/FC
Connector :
RJ45 port
Transmission rate :
10/100/1000M
Distance :
550m
Wavelength :
TRx850nm
Warranty :
1 year
Description

10/100/1000Mbps Fiber Media Converter 10/100/1000Base-TX to 1000Base-FX Multi-Mode Dual Fiber SC 550m NF-C2200SX

Overview

The NF-C2200LX20 Series Gigabit Ethernet Media Converters with external power supply are designed to transmit and receive 10/100/1000Mbps data over optical fiber. The electrical interface will Auto-Negotiate to a 100 Mbps or 1000Mbps Ethernet rate without any adjustments. The optical interface operates at a 1000 Mbps Ethernet rate. Both are environmentally hardened to operate in extreme temperatures. LED indicators are provided for confirming equipment operating status.

Key Features

1. 10/100/1000Mbps Ethernet

2. 10/100/1000 BASE-T/TX electrical port

3. 1000 BASE-SX/LX optical port

4. Electrical port supports Auto-Negotiation for 100Mbps or 1000Mbps, full duplex or half duplex data.

5. Optical port supports 1000Mbps full duplex data

6. Automatic MDI/MDI-X crossover

7. Distances up to 2km for Multi mode;Up to 120km for Single mode

8. Voltage transient protection on all power and signal input.output lines provides Voltage transient protection on all power and signal input.output lines provides

9. No in-field optical adjustments required

10.LED Indicators

Applications

1. Access Control Systems

2. Building and Environmental Control Systems

3. Tamper Switch

4. 10/100/1000 Mbps Ethernet Media Converter

5. High Speed Computer Links

Technical Parameter

Parameters Specifications
Standards IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-TX/FX
Optic Wavelength

NF-C2000SX: 850nm

NF-C2000LX20: 1310nm

NF-C2000-SFP: N/A

NF-C2000LX20A:TX:1310nm/RX:1550nm

NF-C2000LX20B:TX:1550nm/RX:1310nm
Transmission Distance

Multimode: 2km

Single mode:10km~120km
Port

Optical: 2 Fibers (SC/ST/FC Optional)

Power: Terminal Block

Electrical: RJ45
Led Indicators

Optical Link/Data Activity

Electrical Link/Data Activity
MDI/MDI-X Auto selection
Mac address table 4K
Memory buffer 256K

Data

Data Interface: Ethernet

Data Rate:10/100/1000 Mbps
Power Supply

External : 5V DC 2A
Built-in: 100 V to 240 V AC 50Hz to 60 Hz

Power Consumption : ≤5W
Operating Temperature 0 °C to +70 °C
Storage Temperature -20 °C to +80 °C
Relative Humidity

5% to 90% (non-condensing)

MTBF: >100,000 hours
Dimensions 95mm * 70 mm * 25mm
Net Weight 0.165 kg
Emissions FCC , Class A, RoHS, CE Mark


Connection Diagram

Multimode 10 100 1000Base TX FX Media Converter Gigabit Ethernet Media ConverterMultimode 10 100 1000Base TX FX Media Converter Gigabit Ethernet Media Converter

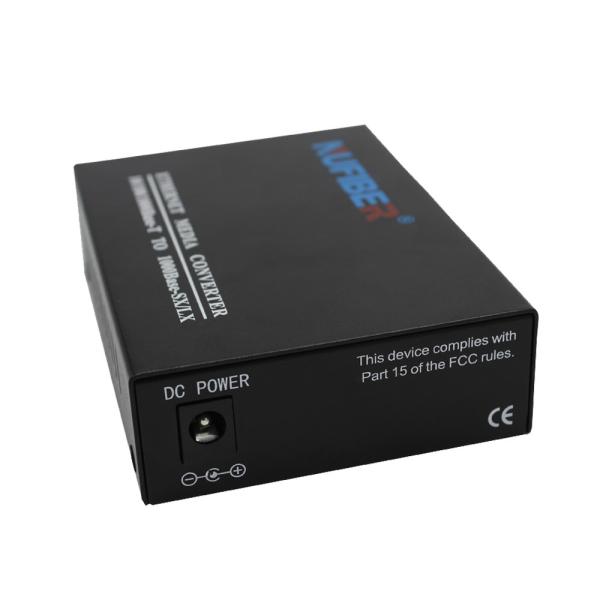

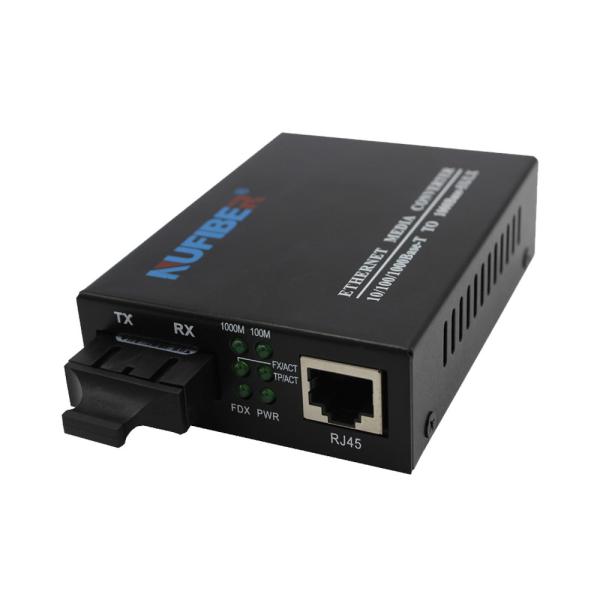

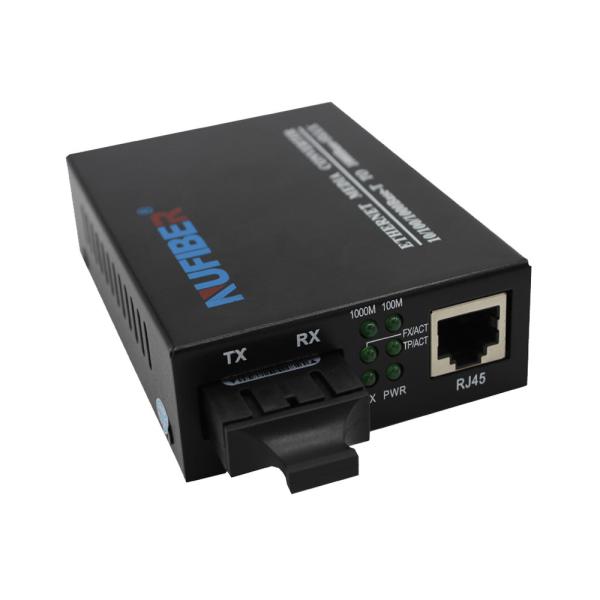

Products show

Multimode 10 100 1000Base TX FX Media Converter Gigabit Ethernet Media ConverterMultimode 10 100 1000Base TX FX Media Converter Gigabit Ethernet Media Converter

Multimode 10 100 1000Base TX FX Media Converter Gigabit Ethernet Media Converter

Multimode 10 100 1000Base TX FX Media Converter Gigabit Ethernet Media Converter

Packaging and shipping

Multimode 10 100 1000Base TX FX Media Converter Gigabit Ethernet Media ConverterMultimode 10 100 1000Base TX FX Media Converter Gigabit Ethernet Media Converter
