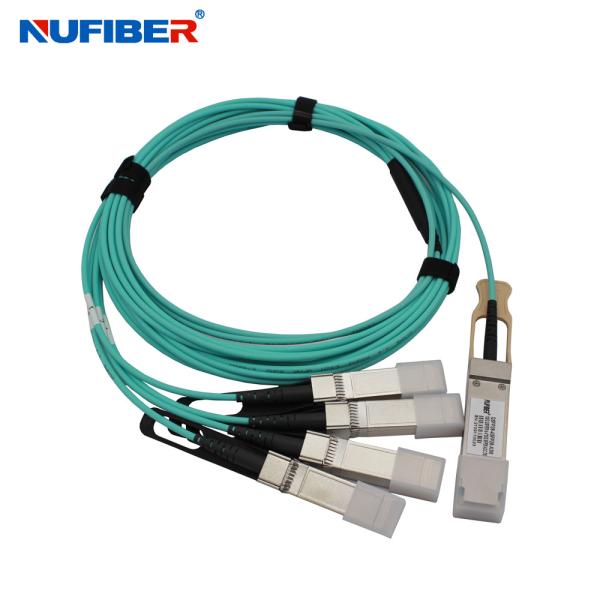

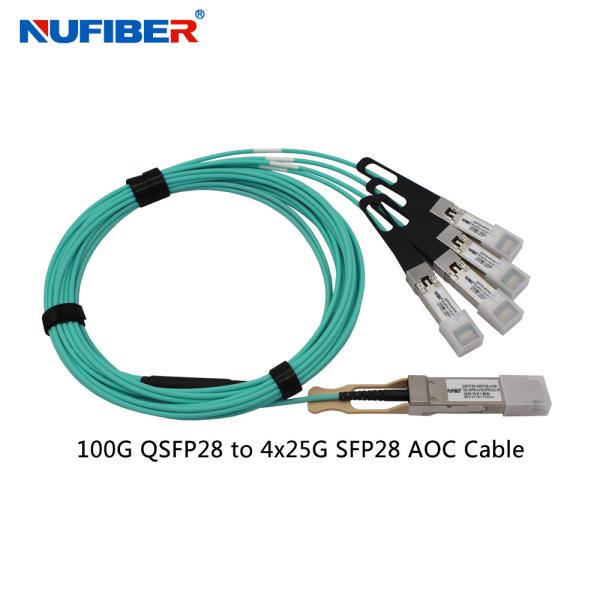

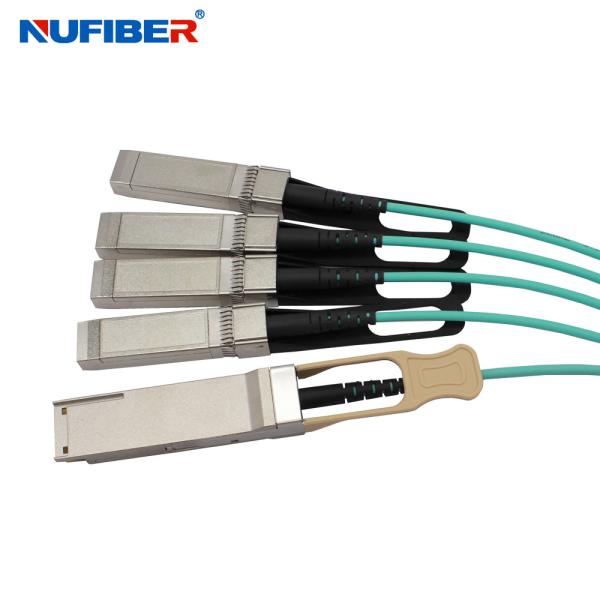

Huawei ZTE Compatible SFP+ Optical Cable AOC 1m 5m 850nm 100GbpS To 4x25G

Specifications

Brand Name :

NUFIBER

Model Number :

QSFP28-4SFP28-AxM

Certification :

CE FCC Rohs

Place of Origin :

China

MOQ :

1pcs

Payment Terms :

T/T, Western Union

Supply Ability :

5,000 pcs per month

Delivery Time :

1-3 working days

Packaging Details :

Standard Export Package

Product Name :

100G QSFP28 to 4x25G SFP28 AOC

Connector Type :

QSFP28 to SFP28

Max Data Rate :

100G to 4x25Gbps

Cable Length :

Customized

Temperature :

0 to 70°C

Optical :

VCSEL Laser

Description

100G QSFP28 to 4x25G SFP28 OM3 AOC Active Optical Cable compatible Cisco Huawei HP Mikrotik

Huawei ZTE Compatible 1m 5m 850nm 100GbpS To 4x25G SFP+ Active Optical Cable AOC

Description:

QSFP28 passive copper cable assembly feature eight differential copper pairs, providing four data transmission channels at speeds up to 28Gbps per channel,and meets 100G Ethernet, 25G Ethernet and InfiniBand Enhanced Data Rate(EDR) requirements.Available in a broad rang of wire gages-from 26AWG through 30AWG-this 100G copper cable assembly features low insertion loss and low cross talk.

Designed for applications in the data center,networking and telecommunications markets that require a high speed,reliable cable assembly,this next generation product shares the same mating interface with QSFP+ form factor ,making it backward compatible with existing QSFP ports.QSFP28 can be used with current 10G and 14G applications with substantial signal integrity margin.

Key Features:

Compatible with IEEE 802.3bj and InfiniBand EDR

Supports aggregate data rates of 100Gbps

Optimized construction to minimize insertion loss and cross talk

Backward compatible with existing QSFP+ connectors and cages

Pull-to-release slide latch design

26AWG through 30AWG cable

Use active IC to make the limit length of the cable 10M

Straight and break out assembly configurations available

Customized cable braid termination limits EMI radiation

Customizable EEPROM mapping for cable signature

RoHS compliant

Application:

Switches,servers and routers

Data Center networks

Storage area networks

High performance computing

Telecommunication and wireless infrastructure

Medical diagnostics and networking

Test and measurement equipment

Mechanical Specifications:
