Specifications
Brand Name :
Nufiber
Model Number :
QSFP-40G-SR4
Certification :
CE FCC
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
T/T, Western Union
Supply Ability :
1000 Piece/Week
Delivery Time :
2-3 days
Packaging Details :
10pcs/plastic bag, 200pcs/carton
Data Rate :
40Gb/s
Wavelength :
850nm
Distance :
150m
Connector :
MPO
Fiber Type :
MMF
Power Supply :
3.3V
Operating Temperature :
0~70℃
Warranty :
1 year
Manufacturer :
yes
OEM :
Support
Description

QSFP-40G-SR4 Qsfp 40g Mm Module For Arista Zte Huawei Qsfp-40g-Isr4 Qsfp-40g-Esr4 Qsfp-40g-Esm4

QSFP-40G-SR4 40g Qsfp 150m 850nm MPO QSFP Fiber Optic Transceiver Module huawei cisco



Product Description:

This is a parallel 40Gbps Quad Small Form-factor Pluggable (QSFP) optical module that provides increased port density and total system cost savings. The QSFP full-duplex optical module offers 4 independent transmit and receive channels, each capable of 10Gbps operation for an aggregate bandwidth of 40Gbps 100m on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF.

Features:

  • 4 independent full-duplex channels
  • Up to 11.2Gbps per channel bandwidth
  • Aggregate bandwidth of > 40Gbps
  • MTP/MPO optical connector
  • QSFP MSA compliant
  • Digital diagnostic capabilities
  • Capable of over 100m transmission on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF
  • CML compatible electrical I/O
  • Single +3.3V power supply operating
  • TX input and RX output CDR retiming
  • Built-in digital diagnostic functions
  • Temperature range 0°C to 70°C
  • RoHS Compliant Part

Applications:

² Rack to rack

² Data centers

² Metro networks

² Switches and Routers

² Infiniband 4x SDR, DDR, QDR

Ordering Information:

QSFP-40G-SR4 40Gb/s 150m MPO/MTP Connector, Multi mode, 850nm

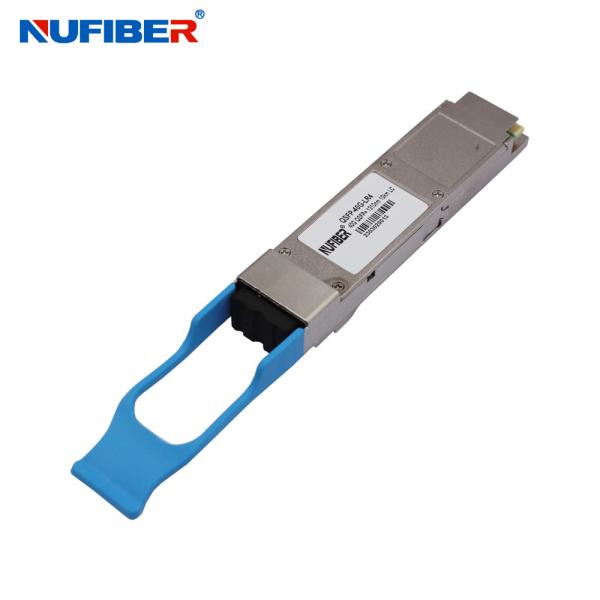

QSFP-40G-LR4 40Gb/s 10km Duplex LC Connector, Single mode, 1270-1330nm

QSFP-40G-ER4

 40Gb/s 40km Duplex LC Connector, Single mode, 1270-1330nm
QSFP-40G-LR-S 40Gb/s 2km PSM4 MPO Connector, Single mode, 1310nm
QSFP-40G-LR-S 40Gb/s 10km PSM4 MPO Connector, Single mode, 1310nm

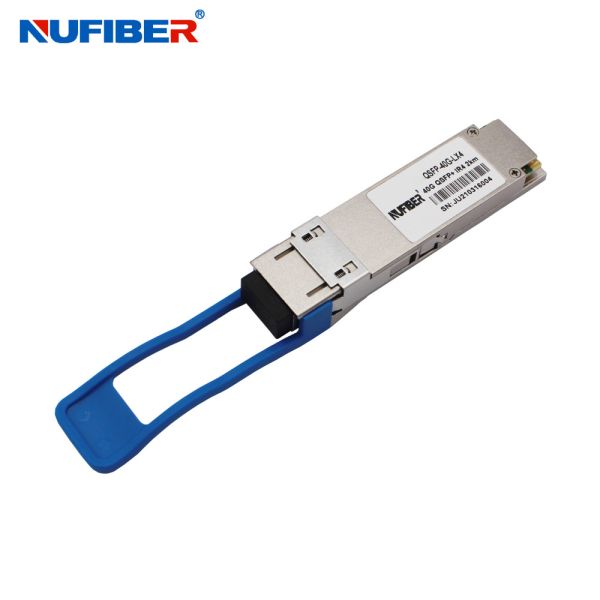

QSFP-40G-LX4 40Gb/s 150m Duplex LC Connector, Multi mode(OM3), 1270-1330nm
QSFP-40G-LX4 40Gb/s 2km Duplex LC Connector, Single mode, 1270-1330nm

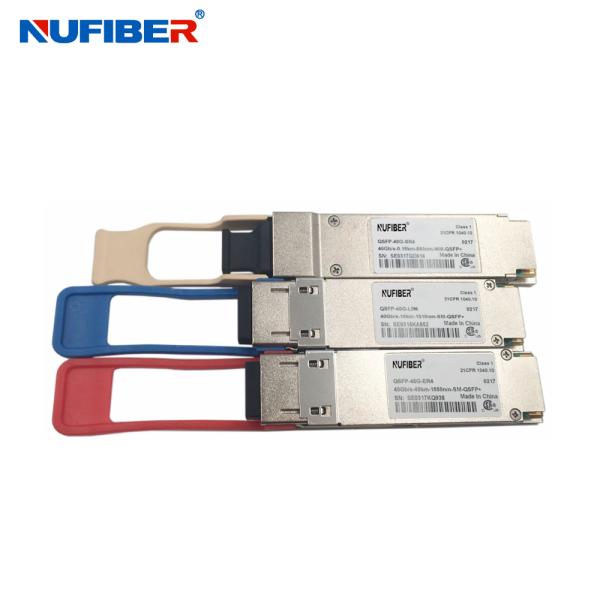

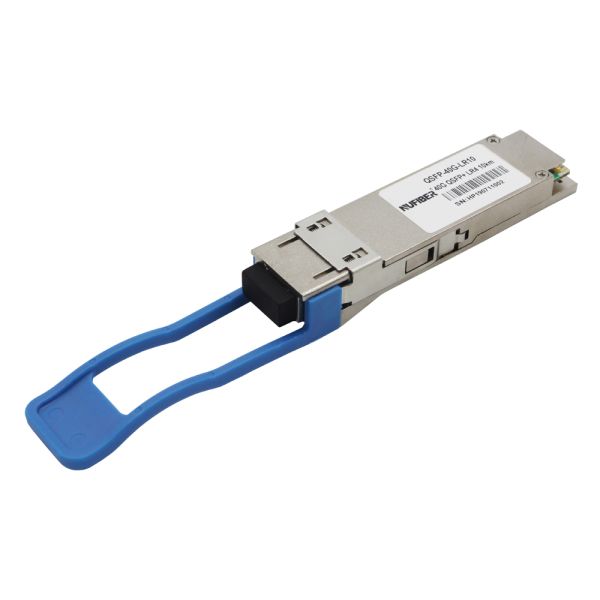

Products Show
