XFP-10G-BX20-SM1270 Bidi 10G LC 10km 1270 / 1330nm XFP Transceiver Module Cisco Huawei Compatible

Specifications

Brand Name :

NuFiber

Model Number :

XFP-10G-BX20-SM1270

Certification :

CE FCC Rohs

Place of Origin :

China

MOQ :

1 piece

Payment Terms :

L/C, T/T, Western Union,Credit Card

Supply Ability :

10,000 pcs per month

Delivery Time :

Within 1-3 work days

Packaging Details :

10pcs/plastic bag, 500pcs/carton

Data Rate :

10Gb/s

Wavelength :

1270/1330nm

Distance :

10-20km

Connector :

DDM :

Support

Fiber Type :

Single Mode simplex

Power Supply :

3.3V

Working Temperature :

0~70℃

Warranty :

1 year

Compatibility :

Cisco, HP, Huawei, Finisar...

Description

10Gb/s XFP Transceiver single fiber Single mode 1270/1330nm 10km/20km LC DDM

10G XFP Bidi LC 10km 1270/1330nm Xfp Transceiver Module Compatible Cisco Huawei Juniper HP

Ordering List:

10G XFP BIDI
XFP-10G-BX20-SM1270	10G XFP 1270nmTx/1330nmRx BIDI SMF LC 20KM
XFP-10G-BX20-SM1330	10G XFP 1330nmTx/1270nmRx BIDI SMF LC 20KM
XFP-10G-BX40-SM1270	10G XFP 1270nmTx/1330nmRx BIDI SMF LC 40KM
XFP-10G-BX40-SM1330	10G XFP 1330nmTx/1270nmRx BIDI SMF LC 40KM
XFP-10G-BX60-SM1270	10G XFP 1270nmTx/1330nmRx BIDI SMF LC 60KM
XFP-10G-BX60-SM1330	10G XFP 1330nmTx/1270nmRx BIDI SMF LC 60KM
10G XFP Duplex
XFP-10G-SR	10G XFP SR Multi mode dual fiber LC 850nm 300M
XFP-10G-LR	10G XFP LR Single mode dual fiber LC 1310nm 20km
XFP-10G-ER	10GXFP ER Single mode dual fiber LC 1550nm 40km
XFP-10G-ZR	10G XFP ZR Single mode dual fiber LC 1550nm 80km
XFP-10G-ZR100	10G XFP ZR Single mode dual fiber LC 1550nm 100km
XFP-10G-CW10-XX	1270-1330nm CWDM XFP 10km
XFP-10G-CW10-XX	1350-1450nm CWDM XFP 10km
XFP-10G-CW20-XX	1270-1330nm CWDM XFP 20km
XFP-10G-CW40-XX	1470-1610nm CWDM XFP 40km
XFP-10G-CW80-XX	1470-1610nm CWDM XFP 80km
XFP-10G-DW40-CHXX	DWDM XFP 40km
XFP-10G-DW80-CHXX	DWDM XFP 80km
XFP-10G-DW100-CHXX	DWDM XFP 100km

Description

NuFiber’ XFP-BX20-SM1330/1270 Bi-directional 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification. They comply with 10-Gigabit Ethernet 10GBASE-LR/LW per IEEE 802.3ae, SONET OC-192 /SDH and 10G Fibre Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA.

Features

Supports 9.95Gb/s to 11.3Gb/s bit rates
Hot-pluggable XFP footprint
Single LC for Bi-directional Transmission
Maximum link length of 20km
Built-in 1270/1330 WDM
Uncooled 1270nm or 1330nm CWDM DFB Laser.
Power dissipation <2W
No Reference Clock required
Built-in digital diagnostic functions
Temperature range 0°C to 70°C
Very low EMI and excellent ESD protection
RoHS Compliant Part

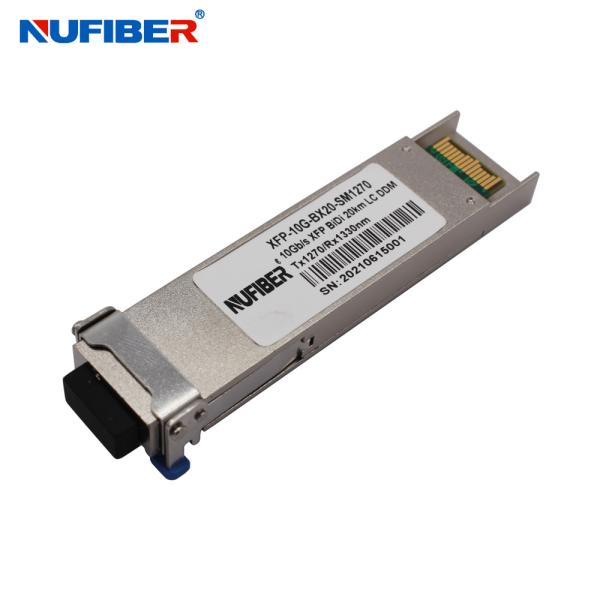

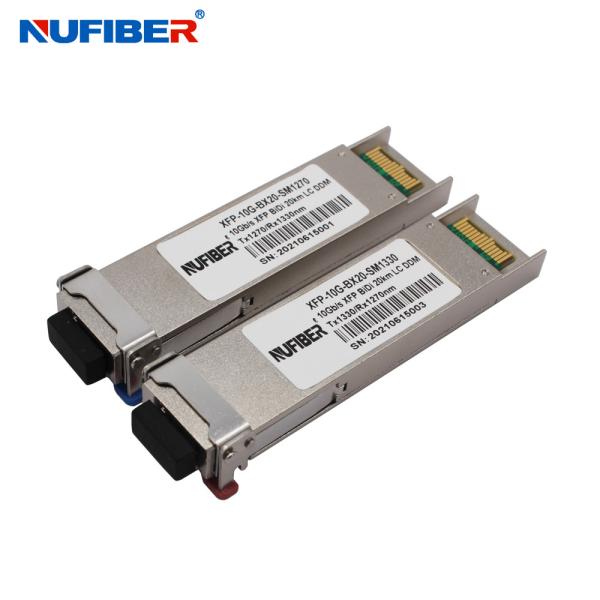

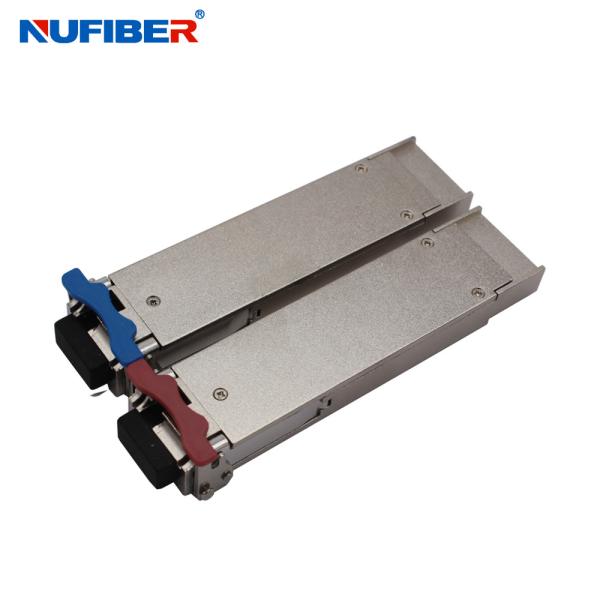

Product Pictures:
