Specifications
Brand Name :
NUFIBER
Model Number :
SFP-10G-BX40-SM1270/1330
Certification :
CE FCC
Place of Origin :
China
MOQ :
1 pair
Price :
USD99~135 per pair
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10,000 pcs per month
Delivery Time :
1-3 work days
Packaging Details :
10pcs/plastic bag, 200pcs/carton
Product Name :
10Gb/s SFP+ Module
Wavelength :
1330nm/1270nm
Distance :
40KM
Connector :
LC Interface
DDM :
Support
Fiber Type :
Single Mode single fiber
Power Supply :
3.3V
Working Temperature :
0~70℃
Compatible :
Any Brand
Manufacturer :
Yes
Description

10Gbps WDM SFP+ Transceiver 10G BIDI 1270/1330nm 40km LC SFP+ Module DDM LC Compatible with Mikrotik/Juniper

Description:

NuFiber SFP-10G-BX40-SM1270 & SFP-10G-BX40-SM1330 Bi-directional 10Gb/s (SFP+) transceivers are compliant with the current SFP+ Multi-Source Agreement (MSA) Specification. They comply with 10GBASE-ER/LW Ethernet, SONET OC-192 / SDH and 10G Fiber Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the SFP+ MSA.

Features:

  • ² Supports 9.95Gb/s to 11.3Gb/s bit rates

    ² Hot-pluggable SFP+ footprint

    ² Single LC for Bi-directional Transmission

    ² Maximum link length of 40km

    ² Built-in 1270/1330 WDM Filter

    ² Uncooled 1270nm or 1330nm CWDM DFB Laser.

    ² Power dissipation <1.5W

    ² No Reference Clock required

    ² Built-in digital diagnostic functions

    ² Temperature range 0°C to 70°C

    ² Very low EMI and excellent ESD protection

    ² RoHS Compliant Part

    Applications:

    ² 10GBASE-ER/LW Ethernet

    ² SONET OC-192 / SDH

    ² 10G Fiber Channel

Optical Parameters:

Parameter Symbol Min Typ Max Unit Ref.
Transmitter
Bit Rate BR 9.9 11.3 Gb/s
Optical Wavelength SFP-10G-BX20-SM1270 λ 1260 1270 1280 nm
SFP-10G-BX20-SM1330 1320 1330 1340
Average output power Po -2 3 dBm
Optical Extinction Ratio ER 3.5 dB
Spectral width Δλ 1 nm
Side Mode Suppression Ratio SMSR 30 dB
Optical Eye Mask Compliant with IEEE802.3ae
Receiver
Bit Rate BR 9.9 11.3 Gb/s
Optical Wavelength SFP-10G-BX20-SM1270 λ 1320 1330 1340 nm
SFP-10G-BX20-SM1330 1260 1270 1280
Receiver Sensitivity Sen -14.5 dBm 1
Maximum Input Power PMAX 0 dBm
LOS De-Assert LOSD -15 dBm
LOS Assert LOSA -25 dBm
LOS Hysteresis LOSH 0.5 4 dB


Ordering information:

BiDi SFP Transmitter
Part Number Product Description
155Mbp/s SFP Transmitter
FE-BX20-SM1310/1550 155Mbps,BiDi 1310nm/1550nm SM 20km LC, DDM 0°C~+70°C
FE-BX40-SM1310/1550 155Mbps, BiDi 1310nm/1550nm SM 40km LC, DDM 0°C~+70°C
FE-BX80-SM1310/1550 155Mbps, BiDi 1310nm/1550nm SM 80km LC, DDM 0°C~+70°C
FE-BX100-SM1310/1550 155Mbps, BiDi 1310nm/1550nm SM 120km LC, DDM 0°C~+70°C
1.25Gbps SFP Transmitter
GE-BX10-SM1310/1550 1.25Gbps, BiDi 1310nm/1550nm SM 10km LC,DDM 0°C~+70°C
GE-BX20-SM1310/1550 1.25Gbps, BiDi 1310nm/1550nm SM 20km LC, DDM 0°C~+70°C
GE-BX40-SM1310/1550 1.25Gbps, BiDi 1310nm/1550nm SM 40km LC, DDM 0°C~+70°C
GE-BX60-SM1310/1550 1.25Gbps, BiDi 1310nm/1550nm SM 60km LC, DDM 0°C~+70°C
GE-BX80-SM1310/1550 1.25Gbps, BiDi 1310nm/1550nm SM 80km LC, DDM 0°C~+70°C
GE-BX100-SM1310/1550 1.25Gbps, BiDi 1310nm/1550nm SM 120km LC, DDM 0°C~+70°C
10Gbps SFP+ Transmitter
SFP-10G-BX20-SM1330/1270 10Gbps, BiDi 1330nm/1270nm SM 20km LC,DDM 0°C~+70°C
SFP-10G-BX40-SM1330/1270 10Gbps, BiDi 1330nm/1270nm SM 40km LC,DDM 0°C~+70°C
SFP-10G-BX60-SM1330/1270 10Gbps, BiDi 1330nm/1270nm SM 60km LC,DDM 0°C~+70°C
SFP-10G-BX80-SM1490/1550 10Gbps, BiDi 1490nm/1550nm SM 80km LC,DDM 0°C~+70°C

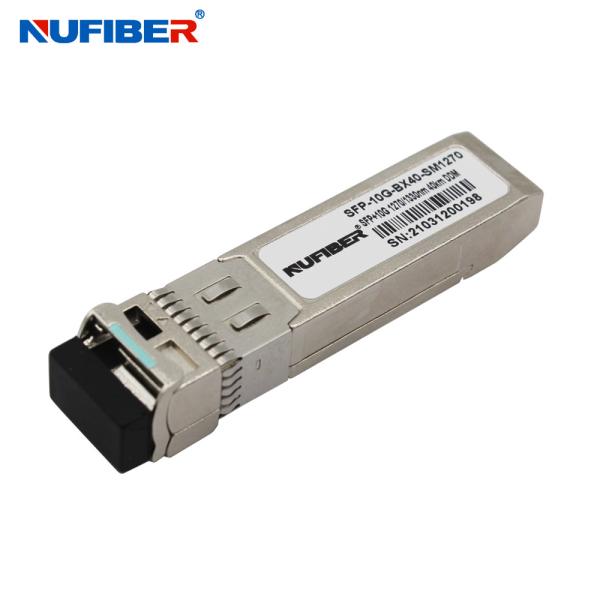

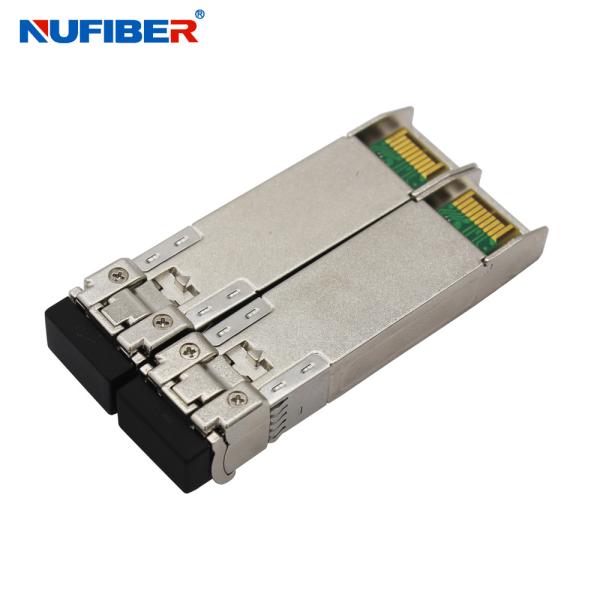

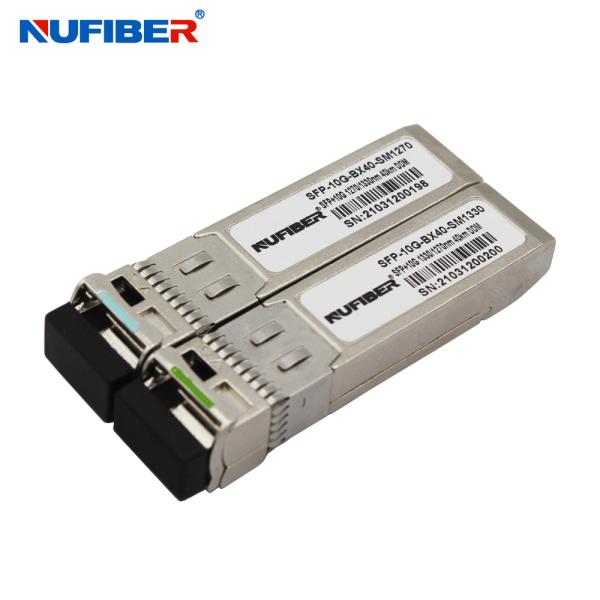

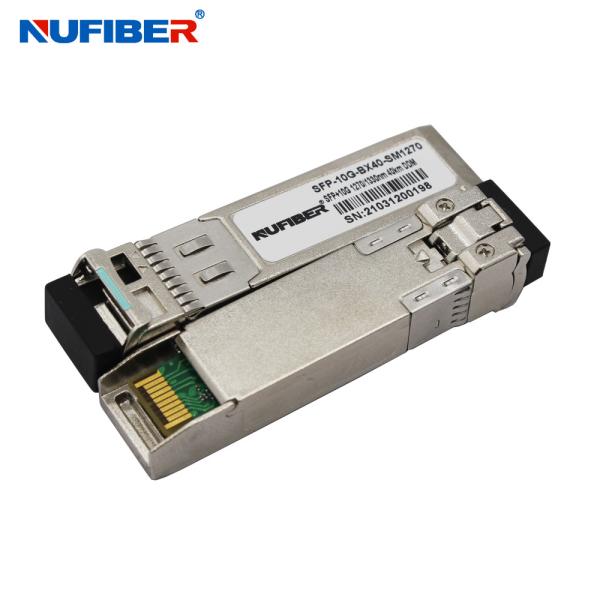

Products Show:

WDM Transceiver 10Gbps LC SFP Module BIDI 1270 / 1330nm 40km DDMWDM Transceiver 10Gbps LC SFP Module BIDI 1270 / 1330nm 40km DDMWDM Transceiver 10Gbps LC SFP Module BIDI 1270 / 1330nm 40km DDMWDM Transceiver 10Gbps LC SFP Module BIDI 1270 / 1330nm 40km DDMWDM Transceiver 10Gbps LC SFP Module BIDI 1270 / 1330nm 40km DDMWDM Transceiver 10Gbps LC SFP Module BIDI 1270 / 1330nm 40km DDM

WDM Transceiver 10Gbps LC SFP Module BIDI 1270 / 1330nm 40km DDM

Packing:

WDM Transceiver 10Gbps LC SFP Module BIDI 1270 / 1330nm 40km DDM

Shipping:

WDM Transceiver 10Gbps LC SFP Module BIDI 1270 / 1330nm 40km DDM

Welcome to send us inquiry for this products.
