UTP To Twisted Pair Terminal POE 2 Wire IP Converter 10/100Mbps 300m
UTP To Twisted Pair Terminal POE 2 Wire IP Converter 10/100Mbps 300m
UTP To Twisted Pair Terminal POE 2 Wire IP Converter 10/100Mbps 300m
UTP To Twisted Pair Terminal POE 2 Wire IP Converter 10/100Mbps 300m
UTP To Twisted Pair Terminal POE 2 Wire IP Converter 10/100Mbps 300m
UTP To Twisted Pair Terminal POE 2 Wire IP Converter 10/100Mbps 300m
Specifications
Brand Name :
NUFIBER
Model Number :
NF-9802PSE/PD
Certification :
CE,FCC,Rohs
Place of Origin :
China
MOQ :
1 pair
Supply Ability :
5000 pairs per week
Delivery Time :
within 1-3 work days after payment
Packaging Details :
10pairs/carton, carton size: 452*372*297mm
Product name :
Ethernet over Twisted Pair Converter
Color :
Black
Material :
Iron
Interface :
2wire port+ 1 RJ45 port
Transmission Distance :
300M
signal :
IP signal over twisted pair cable
Bandwidth :
84M
Power Adapter :
DC: 52V/1.25A
Transmission Rate :
10/100Mbps
Application :
IPTV ,IP network, IPC to NVR
Description

POE IP over 2-wire Converter 10/100Mbps POE UTP to Twisted Pair Terminal Extender 300meters

Products Description

NNufiber NF-9802 Ethernet over 2-Wire Extender allows IP cameras to transmit over 2-Wire. It allows the system to extend IP cameras beyond cable distance limitations and also acts as a PoE inserter. The System transmits IP cameras over 2-Wire and can quickly turn any ordinary 2-Wire into a high speed network communication & PoE path. When operating over 2-Wire, the IP camera extender can operate for distances of up to 300 meters. NF-9802 Ethernet over 2-Wire extender system consists of a transmitter and receiver which require very little installation time & absolutely no set up or configuration.

Key Feature

1. Ethernet over 2-Wire - Converts Ethernet UTP to transmit network data and PoE over 2-Wire.

2. Saves costs and time – Avoids rewiring and expense of traditional Ethernet UTP cable.

3. High data rate – Support 100 Base-T for high network bandwidth requirements of Mega-pixel cameras or multiple IP cameras.

4. Easy to install - No IP or MAC address configuration and other networking setup required.

5. Easy upgrade to IP - Converts existing analog CCTV system over 2-Wire to retrofit analog CCTV installations into IP Digital systems.

6. Extends standard Ethernet – Transmits10/100Base-T up to distances of 300 meters

7. Compatible capability - Fully transparent to Ethernet networks and higher layer protocols.

Technical Parameter

Interface 10/100Base-TX IEEE 802.3af(15.4W) RJ45 ×1
2-Wire×1(Support POE/PSE-PD)
Transmission medium 2-Wire
LED Indicators PWR(Power supply) M/S(Links/Data) LRE(Trunk Links) POE(Power over Ethernet) L/A(Links/Data)
Protocol standard IEEE 802.3i,IEEE 802.3u,IEEE 802.3x Flow Control,IEEE 802.3af DTE Power via MDI
Data rate 10/100Mbps
Transmission distance 1500M(No POE), 0~300M(with POE)
Performance Specification Store-and-forward
Network Latency Less than 20µs for 64-byte frames in Store and forward mode for 100Mbps to 100Mbps transmission
DC Power input DC52V(Peak Value 44~56V) , NF9802-PSE
No power, NF9802-PD
Operating environment Operating temperature; -10℃~ +50℃
Storage temperature: -20℃~ +70℃
Operating humidity: 10%-90% non-condensing
Dimension 118*85*29mm

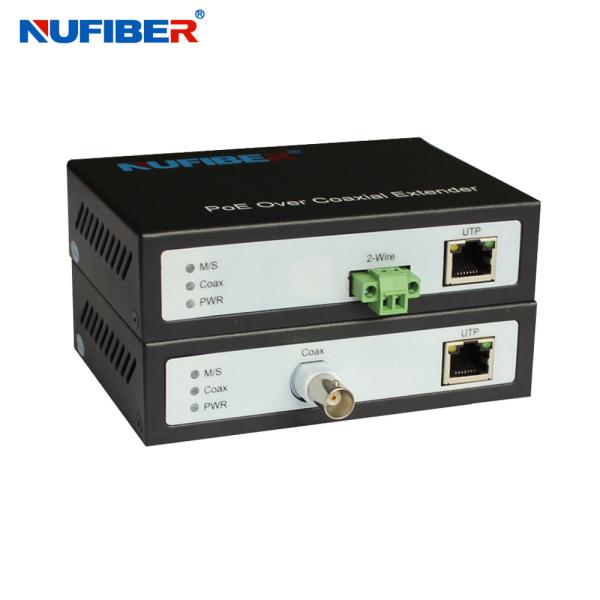

Products Show

UTP To Twisted Pair Terminal POE 2 Wire IP Converter 10/100Mbps 300mUTP To Twisted Pair Terminal POE 2 Wire IP Converter 10/100Mbps 300mUTP To Twisted Pair Terminal POE 2 Wire IP Converter 10/100Mbps 300mUTP To Twisted Pair Terminal POE 2 Wire IP Converter 10/100Mbps 300m

Connection Diagram

UTP To Twisted Pair Terminal POE 2 Wire IP Converter 10/100Mbps 300m

Packing & Shipping

UTP To Twisted Pair Terminal POE 2 Wire IP Converter 10/100Mbps 300m

UTP To Twisted Pair Terminal POE 2 Wire IP Converter 10/100Mbps 300m

Factory Show

UTP To Twisted Pair Terminal POE 2 Wire IP Converter 10/100Mbps 300m

FAQ

Q: Are you a manufacturer or a trading company ?

A: We're professional manufacturer of Fiber Optic Products, providing one-stop OEM & ODM service to all partners all over the world.

Q: Are your products conforming to our standards ?

A: Yes, our products can pass the testings as you require, e.g.: CE, RoHS, ISO9001.

Q: How do you control the quality ?

A: We have perfect QC system (IQC, IPQC, FQC, OQC team), professional product engineers and continuous improvement system.

Q: What’s the product warranty?

A: We offer 12 months guarantee.
