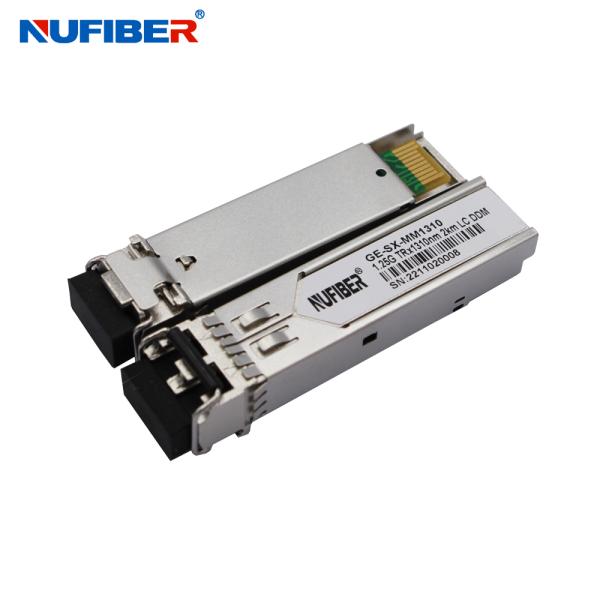

1.25G MMF Dual Fiber Gigabit SFP Transceiver Module 1310nm 2km LC
1.25G MMF Dual Fiber Gigabit SFP Transceiver Module 1310nm 2km LC
1.25G MMF Dual Fiber Gigabit SFP Transceiver Module 1310nm 2km LC
1.25G MMF Dual Fiber Gigabit SFP Transceiver Module 1310nm 2km LC
1.25G MMF Dual Fiber Gigabit SFP Transceiver Module 1310nm 2km LC
1.25G MMF Dual Fiber Gigabit SFP Transceiver Module 1310nm 2km LC
1.25G MMF Dual Fiber Gigabit SFP Transceiver Module 1310nm 2km LC
1.25G MMF Dual Fiber Gigabit SFP Transceiver Module 1310nm 2km LC
Specifications
Brand Name :
NuFiber
Model Number :
GE-SX-MM1310
Certification :
CE FCC
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100,000 pcs per month
Delivery Time :
1-3 work days
Packaging Details :
10pcs/plastic bag, 200pcs/carton
Speed :
1.25Gbs
Wavelength :
1310nm
Distance :
2KM
Connector :
LC
DDM :
Support
Fiber Type :
Multimode Dual fiber
Power Supply :
3.3V
Compatibility :
Cisco, Huawei, HP...
Working Temp. :
0~70℃
Warranty :
1 year
Description

Gigabit SFP Transceiver Module 1.25G MMF Dual Fiber 1310nm 2km LC Fiber SFP Module

Description

NuFiber’s GE-SX-MM1310 Transceiver is a high performance, cost effective module which have a duplex LC optics interface. Standard AC coupled CML for high speed signal and LVTTL control and monitor signals. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm FP laser, up to 8dB link budge ensure this module 1000Base Ethernet 2km application.

Features

  • Up to 1.25Gb/s Data Links
  • Hot-Pluggable
  • Duplex LC connector
  • Up to 2km on 50/125μm MMF
  • 1310nm FP laser transmitter
  • Single +3.3V Power Supply
  • Monitoring Interface Compliant with SFF-8472
  • Maximum Power <1W
  • Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available
  • RoHS compliant and Lead Free

Applications

  • Metro/Access Networks
  • 1.25 Gb/s 1000Base-SX Ethernet
  • 1×Fiber Channel
  • Other Optical Links

Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)

Parameter Symbol Min. Typical Max. Unit Note
Transmitter Section:
Center Wavelength λc 1270 1310 1360 nm
Spectral Width(RMS) σRMS 3 nm
Optical Output Power Pout -9 -3 dBm 1
Extinction Ratio ER 8.2 dB
Optical Rise/Fall Time tr / tf 260 ps 2
Relative Intensity Noise RIN -120 dB/Hz
Output Eye Mask Compliant with IEEE802.3 z (class 1 laser safety)
Receiver Section:
Optical Input Wavelength λc 1260 1360 nm
Receiver Overload Pol 0 dBm 4
RX Sensitivity Sen -18 dBm 4
RX_LOS Assert LOS A -29 dBm
RX_LOS De-assert LOS D -19 dBm
RX_LOS Hysteresis LOS H 0.5 dB
General Specifications:
Data Rate BR 1.25 Gb/s
Bit Error Rate BER 10-12
Max. Supported Link Length on 50/125μm MMF@1.25Gb/s LMAX 2 km
Total System Budget LB 8 dB

Ordering information

Dual Fiber SFP Transceiver
Part Number Product Description
155Mbp/s SFP Transceiver
FE-SX-MM850 155Mbps, 850nm MM 2km Dual LC, DDM 0°C~+70°C
FE-SX-MM1310 155Mbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C
FE-LX20-SM1310 155Mbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C
FE-LX40-SM1310 155Mbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C
FE-LX80-SM1550 155Mbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C
FE-LX120-SM1550 155Mbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C
1.25Gbps SFP Transceiver
GE-SX-MM850 1.25Gbps, 850nm MM 500m Dual LC, DDM 0°C~+70°C
GE-SX-MM1310 1.25gbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C
GE-LX20-SM1310 1.25Gbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C
GE-LX40-SM1310 1.25Gbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C
GE-LX60-SM1550 1.25Gbps, 1550nm SM 60km Dual LC, DDM 0°C~+70°C
GE-LX80-SM1550 1.25Gbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C
GE-LX120-SM1550 1.25Gbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C
10Gbps SFP Transceiver
SFP+-10GB-SR 10G SFP+ SR Multi mode dual fiber LC 850nm 300M
SFP+-10GB-LRM 10G SFP+ LRM Multi mode dual fiber LC 1310nm 220M
SFP+-10GB-LR 10G SFP+ LR Single mode dual fiber LC 1310nm 20km
SFP+-10GB-ERM 10G SFP+ER Single mode dual fiber LC 1310nm 40km
SFP+-10GB-ER 10G SFP+ER Single mode dual fiber LC 1550nm 40km
SFP+-10GB-ZR 10G SFP+ZR Single mode dual fiber LC 1550nm 80km
SFP+10G40-CWDM 1470 ~1610nm CWDM SFP+ 40km
SFP+10G80-CWDM 1470~1570nm CWDM SFP+ 80km
SFP+10G80-CWDM 1590~1610nm CWDM SFP+ 80km
SFP+10G40-DWDM DWDM SFP+ 40km
SFP+10G80-DWDM DWDM SFP+ 80km
XFP Transceiver
XFP-10G-SR 10G XFP SR Multi mode dual fiber LC 850nm 300M
XFP-10G-LRM 10G XFP LRM Single mode dual fiber LC 1310nm 10kM
XFP-10G-LR 10G XFP LR Single mode dual fiber LC 1310nm 20km
XFP-10G-ER 10G XFP ER Single mode dual fiber LC 1550nm 40km
XFP-10G-ZR 10G XFP ZR Single mode dual fiber LC 1550nm 80km
CWDM DWDM Transceiver
XFP-CWDM-40xx 1470 ~1610nm CWDM XFP 40km
XFP-CWDM-80xx 1470~1570nm CWDM XFP 80km
XFP-CWDM-80xx 1590~1610nm CWDM XFP 80km
XFP-DWDM-40xx DWDM XFP 40km
XFP-DWDM-80xx DWDM XFP 80km
XFP-DWDM-100xx DWDM XFP100km
