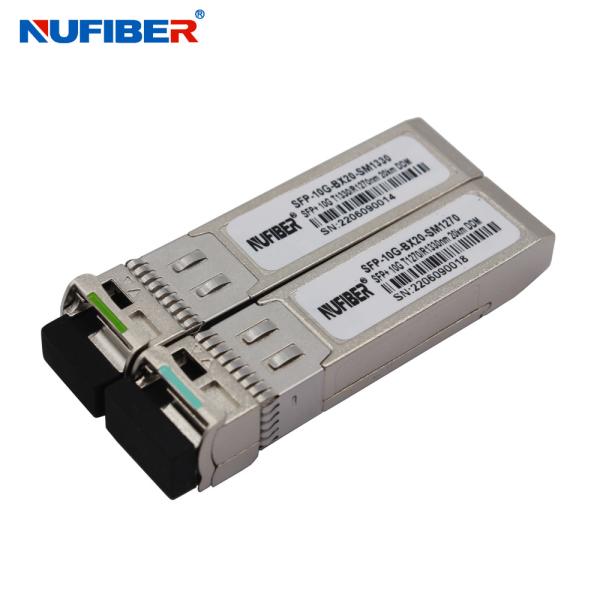

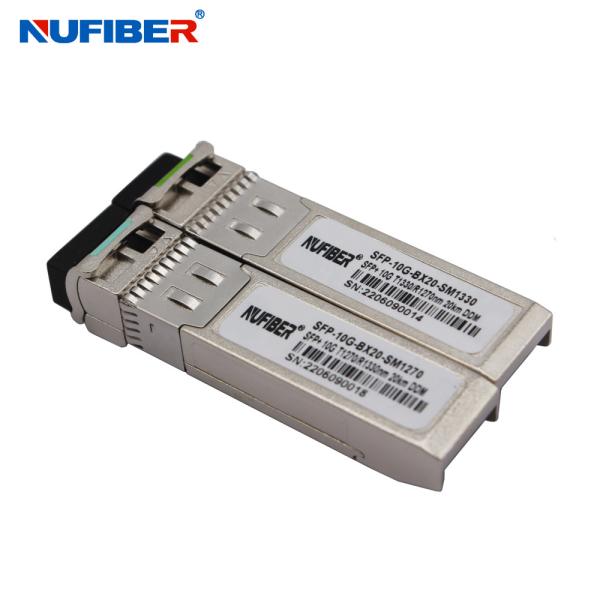

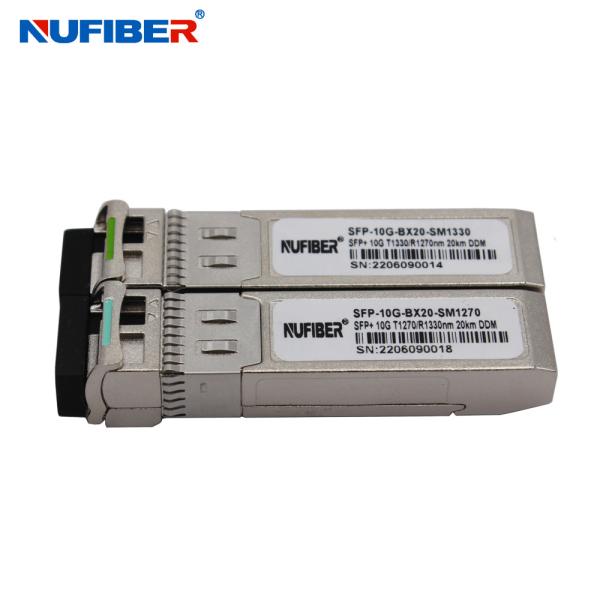

1270 / 1330nm TX RX 20km 10G SFP Module , WDM Single Mode 10G SFP Bidi Transceiver
1270 / 1330nm TX RX 20km 10G SFP Module , WDM Single Mode 10G SFP Bidi Transceiver
1270 / 1330nm TX RX 20km 10G SFP Module , WDM Single Mode 10G SFP Bidi Transceiver
1270 / 1330nm TX RX 20km 10G SFP Module , WDM Single Mode 10G SFP Bidi Transceiver
1270 / 1330nm TX RX 20km 10G SFP Module , WDM Single Mode 10G SFP Bidi Transceiver
1270 / 1330nm TX RX 20km 10G SFP Module , WDM Single Mode 10G SFP Bidi Transceiver
1270 / 1330nm TX RX 20km 10G SFP Module , WDM Single Mode 10G SFP Bidi Transceiver
1270 / 1330nm TX RX 20km 10G SFP Module , WDM Single Mode 10G SFP Bidi Transceiver
Specifications
Brand Name :
NUFIBER
Model Number :
SFP-10G-BX20-SM1270/1330
Certification :
CE FCC
Place of Origin :
China
MOQ :
1 pair
Price :
USD99~135 per pair
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10,000 pcs per month
Delivery Time :
1-3 work days
Packaging Details :
10pcs/plastic bag, 200pcs/carton
Product Name :
10Gb/s SFP+ Module
Wavelength :
1330nm/1270nm
Distance :
20KM
Connector :
LC Interface
DDM :
Support
Fiber Type :
Single Mode single fiber
Power Supply :
3.3V
Working Temperature :
0~70℃
Warranty :
1years
Compatible :
Any Brand
Description

10G SFP+ WDM Single mode 1270/1330nm TX / 1330/1270nm RX 20km 10G SFP Module 10G SFP bidi Transceiver

Description:

NuFiber SFP-10G-BX20-SM1270 & SFP-10G-BX20-SM1330 Bi-directional 10Gb/s (SFP+) transceivers are compliant with the current SFP+ Multi-Source Agreement (MSA) Specification. They comply with 10GBASE-LR/LW Ethernet, SONET OC-192 / SDH and 10G Fiber Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the SFP+ MSA.

Features:

  • Supports 9.95Gb/s to 11.3Gb/s bit rates
  • Hot-pluggable SFP+ footprint
  • Single LC for Bi-directional Transmission
  • Maximum link length of 20km
  • Built-in 1270/1330 WDM Filter
  • Uncooled 1270nm or 1330nm CWDM DFB Laser.
  • Power dissipation <1.5W
  • No Reference Clock required
  • Built-in digital diagnostic functions
  • Temperature range 0°C to 70°C
  • Very low EMI and excellent ESD protection
  • RoHS Compliant Part

Applications:

² 10GBASE-LR/LW Ethernet

² SONET OC-192 / SDH

² 10G Fiber Channel

Optical Parameters:

Parameter Symbol Min Typ Max Unit Ref.
Transmitter
Bit Rate BR 9.9 11.3 Gb/s
Optical Wavelength SFP-10G-BX20-SM1270 λ 1260 1270 1280 nm
SFP-10G-BX20-SM1330 1320 1330 1340
Average output power Po -2 3 dBm
Optical Extinction Ratio ER 3.5 dB
Spectral width Δλ 1 nm
Side Mode Suppression Ratio SMSR 30 dB
Optical Eye Mask Compliant with IEEE802.3ae
Receiver
Bit Rate BR 9.9 11.3 Gb/s
Optical Wavelength SFP-10G-BX20-SM1270 λ 1320 1330 1340 nm
SFP-10G-BX20-SM1330 1260 1270 1280
Receiver Sensitivity Sen -14.5 dBm 1
Maximum Input Power PMAX 0 dBm
LOS De-Assert LOSD -15 dBm
LOS Assert LOSA -25 dBm
LOS Hysteresis LOSH 0.5 4 dB

Products Show:

1270 / 1330nm TX RX 20km 10G SFP Module , WDM Single Mode 10G SFP Bidi Transceiver1270 / 1330nm TX RX 20km 10G SFP Module , WDM Single Mode 10G SFP Bidi Transceiver1270 / 1330nm TX RX 20km 10G SFP Module , WDM Single Mode 10G SFP Bidi Transceiver1270 / 1330nm TX RX 20km 10G SFP Module , WDM Single Mode 10G SFP Bidi Transceiver1270 / 1330nm TX RX 20km 10G SFP Module , WDM Single Mode 10G SFP Bidi Transceiver1270 / 1330nm TX RX 20km 10G SFP Module , WDM Single Mode 10G SFP Bidi Transceiver1270 / 1330nm TX RX 20km 10G SFP Module , WDM Single Mode 10G SFP Bidi Transceiver

Packing:

1270 / 1330nm TX RX 20km 10G SFP Module , WDM Single Mode 10G SFP Bidi Transceiver

Shipping:

1270 / 1330nm TX RX 20km 10G SFP Module , WDM Single Mode 10G SFP Bidi Transceiver
