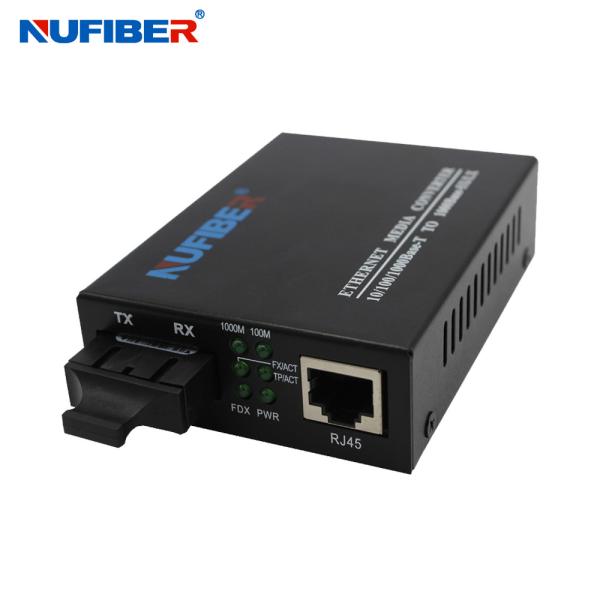

10/100/1000M Fiber Optical Media Converter Dual Fiber MM 850nm 550m SC (P/N:NF-C2200SX)
10/100/1000M Fiber Optical Media Converter Dual Fiber MM 850nm 550m SC (P/N:NF-C2200SX)
10/100/1000M Fiber Optical Media Converter Dual Fiber MM 850nm 550m SC (P/N:NF-C2200SX)
10/100/1000M Fiber Optical Media Converter Dual Fiber MM 850nm 550m SC (P/N:NF-C2200SX)
Specifications
Brand Name :
Nufiber
Model Number :
NF-C2200SX
Certification :
CE
Place of Origin :
Shenzhen, China ( mainland)
MOQ :
1 piece
Payment Terms :
T/T, Western Union, Credit card
Supply Ability :
10000 pair per month
Delivery Time :
within 1-3 working days after payment
Packaging Details :
Carton Packaging, the products are packed in international standard. Each carton is lined with a polythene sheet, thus preventng the contents from dampness
Fiber Type :
MM Dual Fiber
Fiber Interface :
SC/ST/FC
Connector :
RJ45 port
Transmission rate :
10/100/1000M
Distance :
550m
Wavelength :
TRx850nm
Warranty :
12Months
Description

NF-C2200SX 10/100/1000M Fiber Optic Media Converter Dual Fiber Multimode 850nm 550M SC

10/100/1000M Fiber Optical Media Converter Dual Fiber MM 850nm 550m SC (P/N:NF-C2200SX)

Applications

1. Access Control Systems
2. Building and Environmental Control Systems
3. Tamper Switch
4. 10/100/1000 Mbps Ethernet Media Converter
5. High Speed Computer Links

Overview

The NF-C2200SX Series Gigabit Ethernet Media Converters with external power supply are designed to transmit and receive 10/100/1000Mbps data over optical fiber. The electrical interface will Auto-Negotiate to a 100 Mbps or 1000Mbps Ethernet rate without any adjustments. The optical interface operates at a 1000 Mbps Ethernet rate. Both are environmentally hardened to operate in extreme temperatures. LED indicators are provided for confirming equipment operating status.

Key Features

1. 10/100/1000Mbps Ethernet
2. 10/100/1000 BASE-T/TX electrical port
3. 1000 BASE-SX/LX optical port
4. Electrical port supports Auto-Negotiation for 100Mbps or 1000Mbps, full duplex or half duplex data.
5. Optical port supports 1000Mbps full duplex data
6. Automatic MDI/MDI-X crossover
7. Distances up to 2km for Multi mode;Up to 120km for Single mode
8. Voltage transient protection on all power and signal input.output lines provides Voltage transient protection on all power and signal input.output lines provides
9. No in-field optical adjustments required
10. LED Indicators

Technical Parameter

ParametersSpecifications
StandardsIEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-TX/FX
Optic Wavelength

NF-C2000SX: 850nm
NF-C2000LX20: 1310nm
NF-C2000-SFP: N/A
NF-C2000LX20A:TX:1310nm/RX:1550nm
NF-C2000LX20B:TX:1550nm/RX:1310nm

Transmission Distance

Multimode: 2km
Single mode:10km~120km

Port

Optical: 2 Fibers (SC/ST/FC Optional)
Power: Terminal Block
Electrical: RJ45

Led Indicators

Optical Link/Data Activity
Electrical Link/Data Activity

MDI/MDI-XAuto selection
Mac address table4K
Memory buffer256K

Data

Data Interface: Ethernet
Data Rate:10/100/1000 Mbps

Power Supply

External : 5V DC 2A
Built-in: 100 V to 240 V AC 50Hz to 60 Hz
Power Consumption : ≤5W

Operating Temperature0 °C to +70 °C
Storage Temperature-20 °C to +80 °C
Relative Humidity

5% to 90% (non-condensing)
MTBF: >100,000 hours

Dimensions95mm * 70 mm * 25mm
Net Weight0.165 kg
EmissionsFCC , Class A, RoHS, CE Mark



Product Show
10/100/1000M Fiber Optical Media Converter Dual Fiber MM 850nm 550m SC (P/N:NF-C2200SX)10/100/1000M Fiber Optical Media Converter Dual Fiber MM 850nm 550m SC (P/N:NF-C2200SX)
10/100/1000M Fiber Optical Media Converter Dual Fiber MM 850nm 550m SC (P/N:NF-C2200SX)10/100/1000M Fiber Optical Media Converter Dual Fiber MM 850nm 550m SC (P/N:NF-C2200SX)
Connection Diagram
10/100/1000M Fiber Optical Media Converter Dual Fiber MM 850nm 550m SC (P/N:NF-C2200SX)10/100/1000M Fiber Optical Media Converter Dual Fiber MM 850nm 550m SC (P/N:NF-C2200SX)


Packaging and shipping

10/100/1000M Fiber Optical Media Converter Dual Fiber MM 850nm 550m SC (P/N:NF-C2200SX)10/100/1000M Fiber Optical Media Converter Dual Fiber MM 850nm 550m SC (P/N:NF-C2200SX)

Ordering List:

10/100Mbps Media Converter
NF-C570C1*10/100Base-Tx to 1*100Base-FX, MM, DF, SC, 850/1310nm, 2km, DC5V power
NF-C570S201*10/100Base-Tx to 1*100Base-FX, SM, DF, SC, 1310nm, 20km, DC5V power
NF-C570S20A/B1*10/100Base-Tx to 1*100Base-FX, SM, Bidi, SC, 1310/1550nm, 20km, DC5V power
NF-C570-SFP1*10/100Base-Tx to 1*100Base-FX, SFP Slot, DC5V power
10/100/1000Mbps Media Converter
NF-C2200SX051*10/100/1000Base-Tx to 1*1000Base-FX, MM, DF, SC, 850nm, 550m, DC5V power
NF-C2200SX021*10/100/1000Base-Tx to 1*1000Base-FX, MM, DF, SC, 1310nm, 2km, DC5V power
NF-C2200LX201*10/100/1000Base-Tx to 1*1000Base-FX, SM, DF, SC, 1310nm, 20km, DC5V power
NF-C2200LX20A/B1*10/100/1000Base-Tx to 1*1000Base-FX, SM, Bidi,SC,1310/1550nm,20km,DC5V power
NF-C2200-SFP1*10/100/1000Base-Tx to 1*1000Base-FX,SFP Slot, DC5V power
Other Media Converter
NF-C10G-SFP1*10/100/1000/10000Base-Tx to 1*1.25G/2.5G/5G/10GBase-FX,SFPSlot,DC5-12V power
NF-T101-SFP1*100/1000Base-Tx to 1*100/1000Base-FX, 2xSFP port, SM to MM converter, DC5V power

Note: Fiber connector: SC/FC/ST/LC(SFP) available ; Distance:0-120km available;

Desktop/Card type media converter available;

DC5V/12V/48V power available; EU/US/UK/AU etc. Power plug available.
