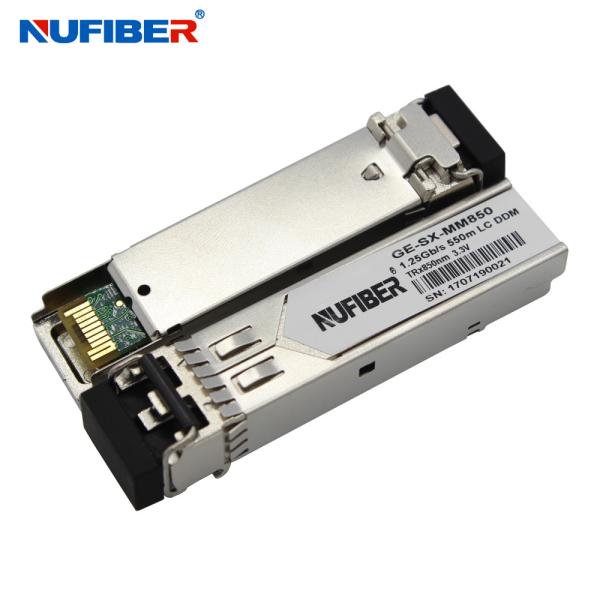

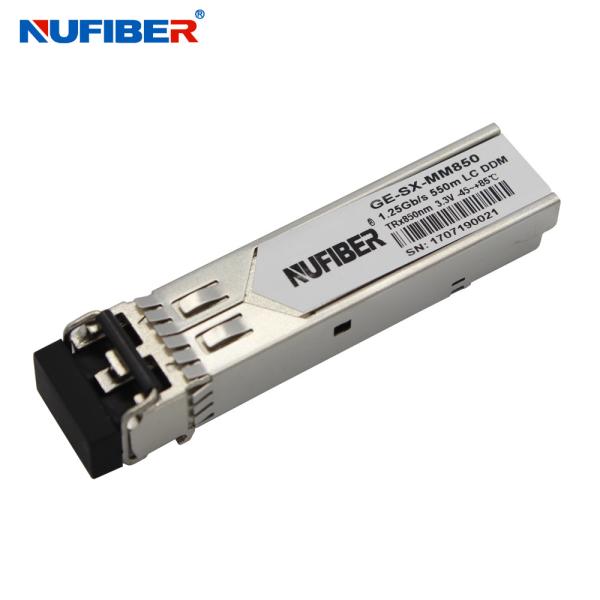

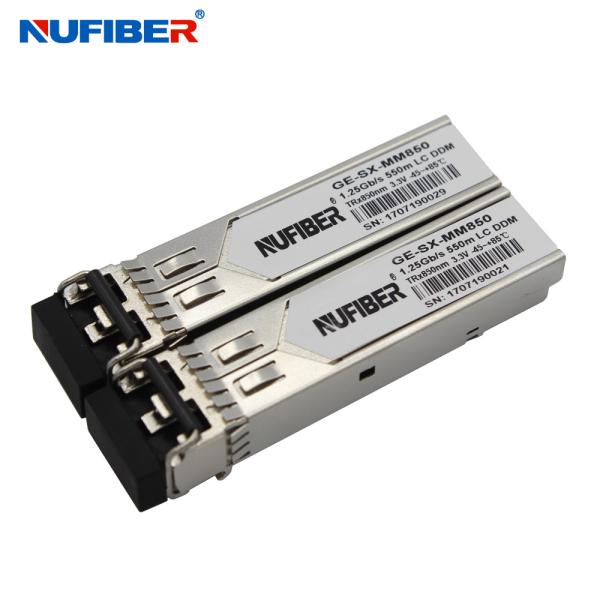

GE-SX-MM850 1.25G 850nm LC Multi Mode Optical Fiber Transceiver
GE-SX-MM850 1.25G 850nm LC Multi Mode Optical Fiber Transceiver
GE-SX-MM850 1.25G 850nm LC Multi Mode Optical Fiber Transceiver
GE-SX-MM850 1.25G 850nm LC Multi Mode Optical Fiber Transceiver
GE-SX-MM850 1.25G 850nm LC Multi Mode Optical Fiber Transceiver
GE-SX-MM850 1.25G 850nm LC Multi Mode Optical Fiber Transceiver
GE-SX-MM850 1.25G 850nm LC Multi Mode Optical Fiber Transceiver
GE-SX-MM850 1.25G 850nm LC Multi Mode Optical Fiber Transceiver
Specifications
Brand Name :
NuFiber
Model Number :
GE-SX-MM850
Certification :
CE FCC
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100,000 pcs per month
Delivery Time :
1-3 work days
Packaging Details :
10pcs/plastic bag, 200pcs/carton
Speed :
1.25Gbs
Wavelength :
850nm
Distance :
0.55KM
Connector :
LC
DDM :
Support
Fiber Type :
Multimode Dual fiber
Power Supply :
3.3V
Compatibility :
Cisco, Huawei, HP...
Manufacturer :
Yes
Working Temp. :
0~70℃
Warranty :
1 years
Description

Nufiber 1.25gb/s SFP MMF 850nm 550m duplex LC optical fiber transceiver sfp module

Description

NuFiber’s GE-SX-MM850 Transceiver is a high performance, cost effective module which have a duplex LC optics interface. Standard AC coupled CML for high speed signal and LVTTL control and monitor signals. The receiver section uses a PIN receiver and the transmitter uses a 850 nm VCSEL laser, up to 9dB link budge ensure this module 1000Base Ethernet 550m application.

Features

  • Up to 1.25Gb/s Data Links
  • Hot-Pluggable
  • Duplex LC connector
  • Up to 550m on 50/125μm MMF
  • 850nm VCSEL laser transmitter
  • Single +3.3V Power Supply
  • Monitoring Interface Compliant with SFF-8472
  • Maximum Power <1W
  • Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available
  • RoHS compliant and Lead Free

Applications

  • Metro/Access Networks
  • 1.25 Gb/s 1000Base-SX Ethernet
  • 1×Fiber Channel
  • Other Optical Links

Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)

Parameter Symbol Min. Typical Max. Unit Note
Transmitter Section:
Center Wavelength λc 840 850 860 nm
Spectral Width(RMS) σRMS 0.85 nm
Optical Output Power Pout -9 -3 dBm 1
Extinction Ratio ER 8.2 dB
Optical Rise/Fall Time tr / tf 260 ps 2
Relative Intensity Noise RIN -120 dB/Hz
Output Eye Mask Compliant with IEEE802.3 z (class 1 laser safety)
Receiver Section:
Optical Input Wavelength λc 770 860 nm
Receiver Overload Pol 0 dBm 4
RX Sensitivity Sen -18 dBm 4
RX_LOS Assert LOS A -29 dBm
RX_LOS De-assert LOS D -19 dBm
RX_LOS Hysteresis LOS H 0.5 dB
General Specifications:
Data Rate BR 1.25 Gb/s
Bit Error Rate BER 10-12
Max. Supported Link Length on 50/125μm MMF@1.25Gb/s LMAX 550 m
Total System Budget LB 8 dB

Ordering information

Dual Fiber SFP Transceiver
Part Number Product Description
155Mbp/s SFP Transceiver
FE-SX-MM850 155Mbps, 850nm MM 2km Dual LC, DDM 0°C~+70°C
FE-SX-MM1310 155Mbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C
FE-LX20-SM1310 155Mbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C
FE-LX40-SM1310 155Mbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C
FE-LX80-SM1550 155Mbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C
FE-LX120-SM1550 155Mbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C
1.25Gbps SFP Transceiver
GE-SX-MM850 1.25Gbps, 850nm MM 500m Dual LC, DDM 0°C~+70°C
GE-SX-MM1310 1.25gbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C
GE-LX20-SM1310 1.25Gbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C
GE-LX40-SM1310 1.25Gbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C
GE-LX60-SM1550 1.25Gbps, 1550nm SM 60km Dual LC, DDM 0°C~+70°C
GE-LX80-SM1550 1.25Gbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C
GE-LX120-SM1550 1.25Gbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C
10Gbps SFP Transceiver
SFP+-10GB-SR 10G SFP+ SR Multi mode dual fiber LC 850nm 300M
SFP+-10GB-LRM 10G SFP+ LRM Multi mode dual fiber LC 1310nm 220M
SFP+-10GB-LR 10G SFP+ LR Single mode dual fiber LC 1310nm 20km
SFP+-10GB-ERM 10G SFP+ER Single mode dual fiber LC 1310nm 40km
SFP+-10GB-ER 10G SFP+ER Single mode dual fiber LC 1550nm 40km
SFP+-10GB-ZR 10G SFP+ZR Single mode dual fiber LC 1550nm 80km
SFP+10G40-CWDM 1470 ~1610nm CWDM SFP+ 40km
SFP+10G80-CWDM 1470~1570nm CWDM SFP+ 80km
SFP+10G80-CWDM 1590~1610nm CWDM SFP+ 80km
SFP+10G40-DWDM DWDM SFP+ 40km
SFP+10G80-DWDM DWDM SFP+ 80km
XFP Transceiver
XFP-10G-SR 10G XFP SR Multi mode dual fiber LC 850nm 300M
XFP-10G-LRM 10G XFP LRM Single mode dual fiber LC 1310nm 10kM
XFP-10G-LR 10G XFP LR Single mode dual fiber LC 1310nm 20km
XFP-10G-ER 10G XFP ER Single mode dual fiber LC 1550nm 40km
XFP-10G-ZR 10G XFP ZR Single mode dual fiber LC 1550nm 80km
CWDM DWDM Transceiver
XFP-CWDM-40xx 1470 ~1610nm CWDM XFP 40km
XFP-CWDM-80xx 1470~1570nm CWDM XFP 80km
XFP-CWDM-80xx 1590~1610nm CWDM XFP 80km
XFP-DWDM-40xx DWDM XFP 40km
XFP-DWDM-80xx DWDM XFP 80km
XFP-DWDM-100xx DWDM XFP100km

Product Show

GE-SX-MM850 1.25G 850nm LC Multi Mode Optical Fiber TransceiverGE-SX-MM850 1.25G 850nm LC Multi Mode Optical Fiber TransceiverGE-SX-MM850 1.25G 850nm LC Multi Mode Optical Fiber Transceiver

GE-SX-MM850 1.25G 850nm LC Multi Mode Optical Fiber Transceiver

Packaing & Shipping

GE-SX-MM850 1.25G 850nm LC Multi Mode Optical Fiber Transceiver

GE-SX-MM850 1.25G 850nm LC Multi Mode Optical Fiber Transceiver

Factory Show

GE-SX-MM850 1.25G 850nm LC Multi Mode Optical Fiber Transceiver
