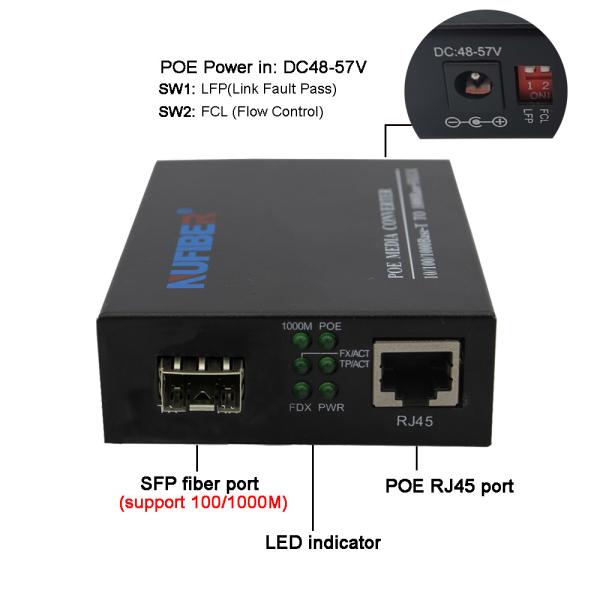

10/100Mbps SFP to RJ45 POE Fiber Optic Media Converter with 10/100Mbps half-duplex/full-duplex mode for data transmission
10/100Mbps SFP to RJ45 POE Fiber Optic Media Converter with 10/100Mbps half-duplex/full-duplex mode for data transmission
10/100Mbps SFP to RJ45 POE Fiber Optic Media Converter with 10/100Mbps half-duplex/full-duplex mode for data transmission
10/100Mbps SFP to RJ45 POE Fiber Optic Media Converter with 10/100Mbps half-duplex/full-duplex mode for data transmission
10/100Mbps SFP to RJ45 POE Fiber Optic Media Converter with 10/100Mbps half-duplex/full-duplex mode for data transmission
10/100Mbps SFP to RJ45 POE Fiber Optic Media Converter with 10/100Mbps half-duplex/full-duplex mode for data transmission
Specifications
Brand Name :
Nufiber
Model Number :
NF-PSE5201-SFP
Certification :
CE RoHS FCC
Place of Origin :
China(mainland)
MOQ :
1
Payment Terms :
T/T, Western Union
Supply Ability :
8000piece/month
Delivery Time :
3~4working day after payment
Packaging Details :
Packing Size/per boxes:21mm*15.6mm*5.3mm 40 Boxes / carton or As Your Mind
Product Name :
POE Media Converter
Data Rate :
10/100Mbps
Wavelength :
850/1310/1550nm
Distance :
0-120KM
Dimension :
21mm*15.6mm*5.3mm
Fiber Type :
SM/MM; SF/DF
Power :
External Power DC52V/0.7A/36W
OEM,DDM :
Accept
Warranty :
1 Year
Interface :
1xSFP slot+1xPOE UTP port
Description

10/100Mbps SFP to RJ45 POE Fiber Optic Media Converter with 10/100Mbps half-duplex/full-duplex mode for data transmission


Description
NuFiber’s NF-PSE5201 series Media Converter are 10/100Base T/TX to 100Base FX Power over Ethernet(PoE) devices that serve as Power Sourcing Equipment(PSE).which allows the converter to provide power to IEEE802.3af/at PoE standard-compliant Powered Devices(PDs) using the twisted pair connection. Power transmitted along with data in one single cable(RJ45) allows you to expand your network where there are no power lines or outlets. Where you wish to devices such as Wifi Aps. IP Cameras or IP Phones.etc.

Features
1, Support IEEE802.3 10BASE-T;
IEEE802.3i 10Base-T;IEEE802.3u 100Base-TX/FX;
2, Support 10/100Mbps half-duplex/full-duplex mode and auto MDI/MDIX;
3, Transmission distance:
Multimode(MM): Up to 2KM Max;
Singlemode(SM): Up to 120KM Max；
4, POE power pin: 1/2+,3/6- (Option 4/5+,7/8-)；
5, RJ45 port support direct and cross automatic recognition function (AUTO-MDIX);
6, Fanless design, its own low heat, work stability and durability stronger;
7, Trouble-free working hours (MTBF)> 50,000 hours, in line with carrier-class operating standards;

Specification

ItemDescription
PowerPower SupplyPower Adapter:DC52V/0.7A/36W
Voltage RangeDC 48V-57V
Consumption<35W (PoE power supply≤30W)
Ethernet PortEthernet PortLAN port:10/100Mbps
Transmission DistanceLAN port: 0-100m
PoEPoE ProtocolIEEE802.3af/at
PoE Power SupplyEnd Span
PoE Power Consumption≤30W
Fiber PortFiber Port1*9,SC
Bandwidth100Mbps
Transmission Distance20km
Network StandardCompatible withIEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX/FX
LED Status IndicatorPower1 Green light
EthernetGreen light on the RJ 45 Socket
FiberLink, SD, FED (3 green lights)
ProtectionESDContact discharge 6KV; air discharge 8KV
Lightning ProtectionPower:2KV
Signal:1KV
Per:IEC61000-4-5
EnvironmentalWorking Temperature0℃~55℃
Storage Temperature-40℃~85℃
Humidity (non-condensing)0~95%
MechanicalDimension (L×W×H)103mm×82mm×25mm
MaterialAluminum Alloy
ColorBlack
Weight172g
StabilityMTBF>30000h


Ordering Information

ModelDescriptionFiber ModeWavelengthDistanceConnector
NF-PSE5201-C0210/100Base-Tx to 100Base-FXMMFTRx:850nm2kmSC
or TRx:1310nm
NF-PSE5201-C2010/100Base-Tx to 100Base-FXSMFTRx:1310nm20 kmSC
NF-PSE5201-C20A/B10/100Base-Tx to 100Base-FXSMFTx:1310nm/Rx1550nm20 kmSC
Tx:1550nm/Rx1310nm
NF-PSE5201-SFP10/100Base-Tx to 100Base-FXSFP850nm/1310nm/1550nm0~120kmLC/SC
NF-PSE5201G-C0210/100/1000Base-Tx to 1000Base-FXMMFTRx:850nm2kmSC
or TRx:1310nm
NF-PSE5201G-C2010/100/1000Base-Tx to 1000Base-FXSMFTRx:1310nm20 kmSC
NF-PSE5201G-C20A/B10/100/1000Base-Tx to 1000Base-FXSMFTx:1310nm/Rx1550nm20 kmSC
NF-PSE6301-SFP10/100/1000Base-Tx to 100/1000Base-FXSFP850nm/1310nm/1550nm0~120kmLC/SC



Connection Diagram
10/100Mbps SFP to RJ45 POE Fiber Optic Media Converter with 10/100Mbps half-duplex/full-duplex mode for data transmission

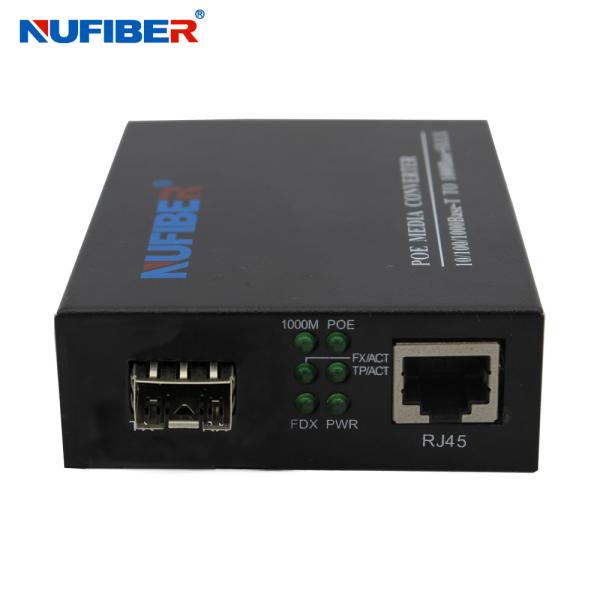

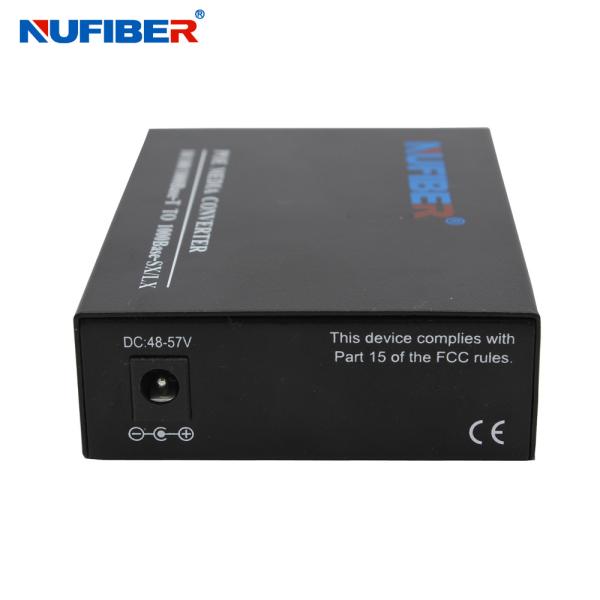

Product Show
10/100Mbps SFP to RJ45 POE Fiber Optic Media Converter with 10/100Mbps half-duplex/full-duplex mode for data transmission10/100Mbps SFP to RJ45 POE Fiber Optic Media Converter with 10/100Mbps half-duplex/full-duplex mode for data transmission
10/100Mbps SFP to RJ45 POE Fiber Optic Media Converter with 10/100Mbps half-duplex/full-duplex mode for data transmission
Packing Methods
10/100Mbps SFP to RJ45 POE Fiber Optic Media Converter with 10/100Mbps half-duplex/full-duplex mode for data transmission

Shipping Methods
10/100Mbps SFP to RJ45 POE Fiber Optic Media Converter with 10/100Mbps half-duplex/full-duplex mode for data transmission

Factory Show

10/100Mbps SFP to RJ45 POE Fiber Optic Media Converter with 10/100Mbps half-duplex/full-duplex mode for data transmission

10/100Mbps SFP to RJ45 POE Fiber Optic Media Converter with 10/100Mbps half-duplex/full-duplex mode for data transmission


FAQ
10/100Mbps SFP to RJ45 POE Fiber Optic Media Converter with 10/100Mbps half-duplex/full-duplex mode for data transmission
