Specifications
Brand Name :
NuFiber
Model Number :
GLC-T
Certification :
CE FCC Rohs
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
L/C, T/T, Western Union,Credit Card
Supply Ability :
10,000 pcs per month
Delivery Time :
Within 1-3 work days
Packaging Details :
10pcs/plastic bag, 500pcs/carton
Data Rate :
1.25Gb/s
Distance :
100m
Connector :
Rj45
DDM :
Support
Power Supply :
3.3V
Working Temperature :
0~70℃
Warranty :
1 year

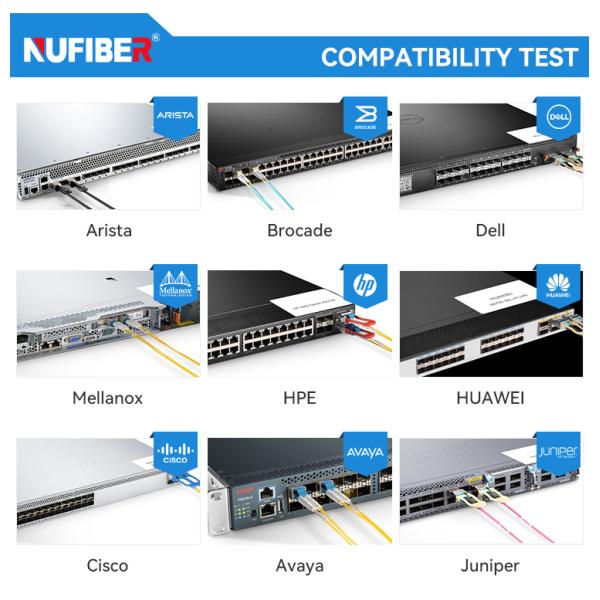

Compatibility :
Cisco, HP, Huawei, Finisar...
Manufacturer :
Yes
Description

1.25 Gigabit Ethernet SFP Module 100m Rj45 SFP Transceiver Copper Module

Description

GLC-T10/100/1000 copper SFP transceiver is high performance, cost effective module compliant with the Gigabit Ethernet and 10/100/1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supporting 10/100/1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair category 5 cable. The GLC-T10/100/1000 supports 10/100/1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair. The GLC-T10/100/1000 provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2-wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2-wire serial bus at address ACh.

Features

  • Up to 1.25Gb/s bi-directional data links
  • Hot-pluggable SFP footprint
  • Extended case temperature range (-40°C to +85°C )
  • Fully metallic enclosure for low EMI
  • Low power dissipation
  • Compact RJ-45 connector assembly
  • Detailed product information in EEPROM
  • +3.3V single power supply
  • Access to physical layer IC via 2-wire serial bus
  • 10/100/1000 BASE-T operation in host systems with SGMII interface
  • Compliant with SFP MSA
  • Compliant with IEEE Std 802.3TM-2002
  • Compliant with FCC 47 CFR Part 15, Class B
  • RoHS Compliant Products

Applications

  • 1.25 Gigabit Ethernet over Cat 5 cable
  • Switch/Router to Switch/Router Link
  • High speed I/O for file severs

Optical Parameters

Parameter Symbol Min. Typical Max. Units Notes/Conditions
Supply Current Is 320 375 mA 1.2W max power over full range of voltage and temperature. See caution note below
Input Voltage Vcc 3.13 3.3 3.47 V Referenced to GND
Surge Current Isurge 30 mA Hot plug above steady state current. See caution note

Parameter Symbol Min. Max. Units Notes/Conditions
SFP Output LOW VOL 0 0.5 V 4.7k to 10k pull-up to host_Vcc.
SFP Output HIGH VOH host_Vcc -0.5 host_Vcc + 0.3 V 4.7k to 10k pull-up to host_Vcc.
SFP Input LOW VIL 0 0.8 V 4.7k to 10k pull-up to Vcc.
SFP Input HIGH 2 Vcc + 0.3 V V 4.7k to 10k pull-up to Vcc.

Transmission Line-SFP
Parameter Symbol Min. Typical Max. Units Notes/Conditions
Line Frequency fL 125 MHz 5-level encoding, per IEEE 802.3
Tx Output Impedance Zout,TX 100 Ohm Differential
Rx Input Impedance Zin,RX 100 Ohm Differential


Ordering information

Dual Fiber SFP Transceiver
Part Number Product Description
155Mbp/s SFP Transceiver
FE-SX-MM850 155Mbps, 850nm MM 2km Dual LC, DDM 0°C~+70°C
FE-SX-MM1310 155Mbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C
FE-LX20-SM1310 155Mbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C
FE-LX40-SM1310 155Mbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C
FE-LX80-SM1550 155Mbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C
FE-LX120-SM1550 155Mbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C
1.25Gbps SFP Transceiver
GE-SX-MM850 1.25Gbps, 850nm MM 500m Dual LC, DDM 0°C~+70°C
GE-SX-MM1310 1.25gbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C
GE-LX20-SM1310 1.25Gbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C
GE-LX40-SM1310 1.25Gbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C
GE-LX60-SM1550 1.25Gbps, 1550nm SM 60km Dual LC, DDM 0°C~+70°C
GE-LX80-SM1550 1.25Gbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C
GE-LX120-SM1550 1.25Gbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C
10Gbps SFP Transceiver
SFP+-10GB-SR 10G SFP+ SR Multi mode dual fiber LC 850nm 300M
SFP+-10GB-LRM 10G SFP+ LRM Multi mode dual fiber LC 1310nm 220M
SFP+-10GB-LR 10G SFP+ LR Single mode dual fiber LC 1310nm 20km
SFP+-10GB-ERM 10G SFP+ER Single mode dual fiber LC 1310nm 40km
SFP+-10GB-ER 10G SFP+ER Single mode dual fiber LC 1550nm 40km
SFP+-10GB-ZR 10G SFP+ZR Single mode dual fiber LC 1550nm 80km
XFP Transceiver
XFP-10G-SR 10G XFP SR Multi mode dual fiber LC 850nm 300M
XFP-10G-LRM 10G XFP LRM Single mode dual fiber LC 1310nm 10kM
XFP-10G-LR 10G XFP LR Single mode dual fiber LC 1310nm 20km
XFP-10G-ER 10G XFP ER Single mode dual fiber LC 1550nm 40km
XFP-10G-ZR 10G XFP ZR Single mode dual fiber LC 1550nm 80km

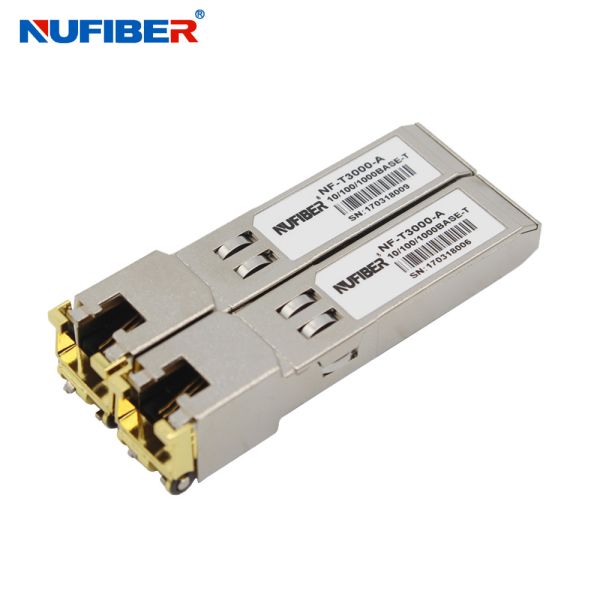

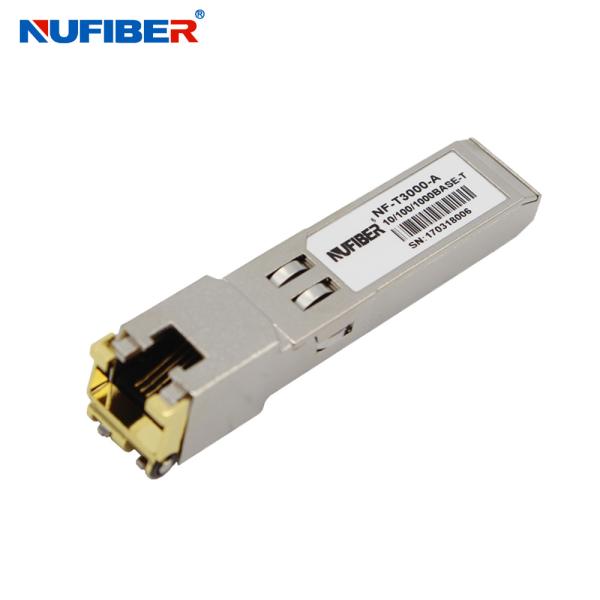

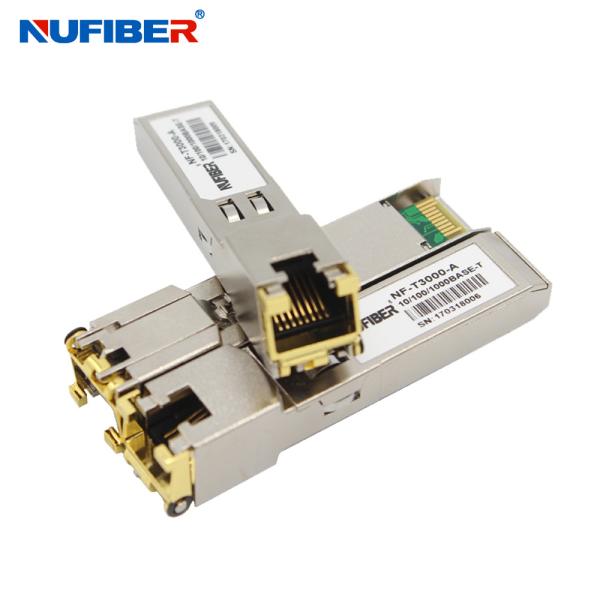

Products Show

1.25 Gigabit Ethernet SFP Module 100m Rj45 SFP Transceiver Copper Module1.25 Gigabit Ethernet SFP Module 100m Rj45 SFP Transceiver Copper Module1.25 Gigabit Ethernet SFP Module 100m Rj45 SFP Transceiver Copper Module1.25 Gigabit Ethernet SFP Module 100m Rj45 SFP Transceiver Copper Module

Packaging & Shipping

1.25 Gigabit Ethernet SFP Module 100m Rj45 SFP Transceiver Copper Module

1.25 Gigabit Ethernet SFP Module 100m Rj45 SFP Transceiver Copper Module

Factory Show

1.25 Gigabit Ethernet SFP Module 100m Rj45 SFP Transceiver Copper Module1.25 Gigabit Ethernet SFP Module 100m Rj45 SFP Transceiver Copper Module1.25 Gigabit Ethernet SFP Module 100m Rj45 SFP Transceiver Copper Module
