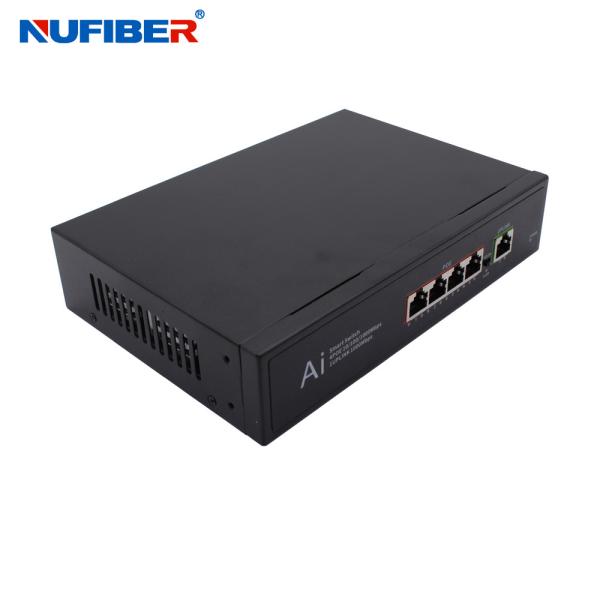

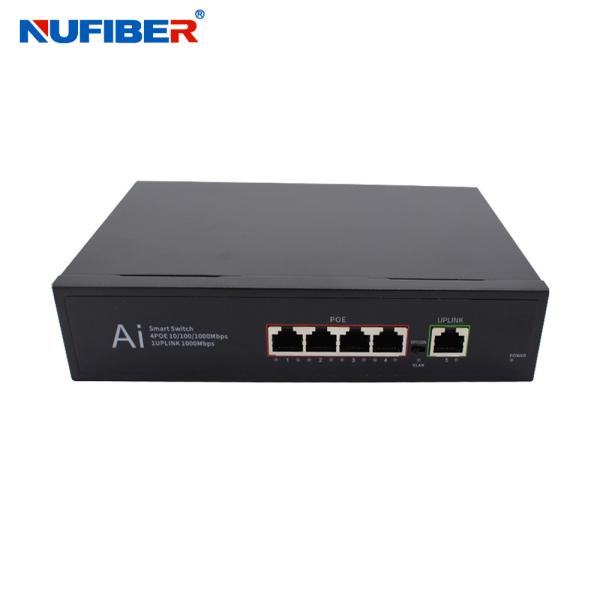

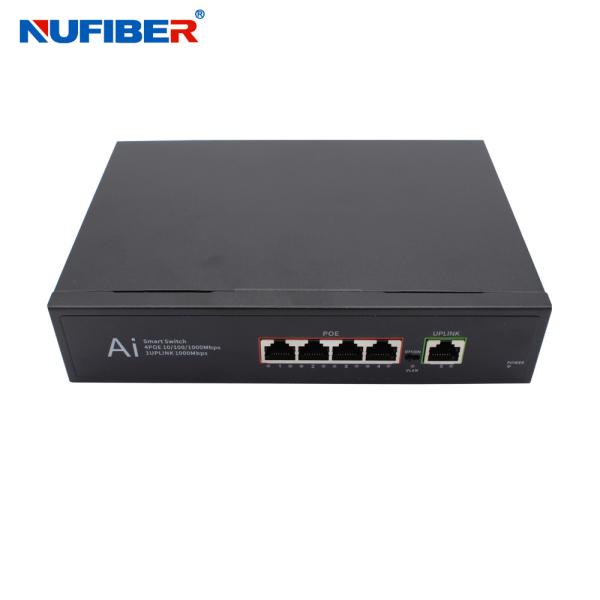

5port Gigabit POE Smart Network Switch 1SFP 1Uplink Smart Network Switch For CCTV IP Camera
5port Gigabit POE Smart Network Switch 1SFP 1Uplink Smart Network Switch For CCTV IP Camera
5port Gigabit POE Smart Network Switch 1SFP 1Uplink Smart Network Switch For CCTV IP Camera
5port Gigabit POE Smart Network Switch 1SFP 1Uplink Smart Network Switch For CCTV IP Camera
5port Gigabit POE Smart Network Switch 1SFP 1Uplink Smart Network Switch For CCTV IP Camera
5port Gigabit POE Smart Network Switch 1SFP 1Uplink Smart Network Switch For CCTV IP Camera
5port Gigabit POE Smart Network Switch 1SFP 1Uplink Smart Network Switch For CCTV IP Camera
5port Gigabit POE Smart Network Switch 1SFP 1Uplink Smart Network Switch For CCTV IP Camera
Specifications
Brand Name :
NuFiber
Model Number :
NF-PSE5114G
Certification :
CE
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
T/T, Western Union
Supply Ability :
5000pcs per month
Delivery Time :
1-3 work days
Packaging Details :
20pcs/carton, carton size: 452*372*297mm
Material :
Iron Case
Color :
Black
Data Transfer Rate :
10/100/1000Mbps
Interface :
4POE+1SFP+1Uplink
Standard :
IEEE802.3af/at
Total power :
65Watts
Power Supply :
48VDC
OEM & ODM :
Accepted
Warranty :
12months
Description

5port Gigabit POE Smart Network Switch 1SFP 1Uplink Smart Network Switch For CCTV IP Camera

Features

  • Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
  • 4-Port 10/100/1000Mbps supports 48-57V DC power to PoE Powered Device
  • 1 –Port 1.25Gbps SC/FC/ST/LC interface for uplink
  • Complies with IEEE 802.3af/802.3at Power over Ethernet End-Span PSE
  • Up to 4 IEEE 802.3af devices powered
  • Supports PoE Power up to 15.4 watts for each PoE port
  • Up to 4 IEEE 802.3at devices powered
  • Supports PoE Power up to 30 watts for each PoE port
  • 65-watt PoE budget
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m
  • Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • Integrates address look-up engine, supporting 8K absolute MAC addresses
  • 2M packet buffer
  • IEEE 802.1Q VLAN packet transparency support
  • Automatic address learning and address aging
  • Made of metal, desktop size and wall-mount design

Specifications

Item

 Description
Model NF-PSE5114G series
Power Supply Power Supply Mode Power adapter
Voltage Range DC52V
Power Consumption The device <5W, POE power supply <65W
Network Port Parameter Network Ports

1～4 Ports: 10/100/1000Mbps Ethernet port, adaptive control
Uplink Fiber Port:1.25Gbps
Transmission Distance

1~4 Ethernet Port:0~100m
Uplink Fiber Port: 0-120KM Optional
Transmission Media

1~4 Ethernet Port:Cat5e/6 standard UTP cable,
Uplink Fiber Port: SC interface optical fiber
PoE Agreement IEEE802.3 af/at standards
PoE Power Supply Mode End-span method
PoE Power Supply Wattage Each port≤30W, Whole device<65W
Network Switch Specification Network Standard IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-T
Swap Mode Store-and- forward
Switch Capacity 12Gbps
MAC Address List 8K
Status Indicators Power Indicator Light One power light (green)
Optical Fiber Port Indicator One fiber link indication light ( green), Green light keeps on when the fiber port is well connected; Blinking when transceiver data
PoE Indicator 1~4 PoE indicator light(yellow)
PoE Network Port LED 1~4 port ( green light on RJ45 jack) Keeps on when normally connected, Blinking when transceiver data
Protection Level Surge Immunity Level 3, executive standard:IEC61000-4-5
Electrostatic Protection 1a touch electric discharge: level 3 1a Air discharge: level 3 Executive standard:IEC61000-4-2
Operating Environment Working Temperature -10℃～55℃
Storage Temperature -40℃-85℃
Humidity(non-congeal) 0~95%
Mechanical Attributes Dimensions (L*W*H) 152mmx95mmx28.25mm
Color Black
Weight 1kg
Reliability Mean time between failures (MTBF) ＞50000h


Connection Diagram
5port Gigabit POE Smart Network Switch 1SFP 1Uplink Smart Network Switch For CCTV IP Camera
Product Show

5port Gigabit POE Smart Network Switch 1SFP 1Uplink Smart Network Switch For CCTV IP Camera5port Gigabit POE Smart Network Switch 1SFP 1Uplink Smart Network Switch For CCTV IP Camera5port Gigabit POE Smart Network Switch 1SFP 1Uplink Smart Network Switch For CCTV IP Camera
CE certification
5port Gigabit POE Smart Network Switch 1SFP 1Uplink Smart Network Switch For CCTV IP Camera

Packing Information

5port Gigabit POE Smart Network Switch 1SFP 1Uplink Smart Network Switch For CCTV IP Camera
Shipping Method
5port Gigabit POE Smart Network Switch 1SFP 1Uplink Smart Network Switch For CCTV IP Camera
