Gigabit POE Switch 24*10/100/1000Mbps PoE port to 2*1000M SFP Slot DESKTOP/Rack Mounting with Bracket
Gigabit POE Switch 24*10/100/1000Mbps PoE port to 2*1000M SFP Slot DESKTOP/Rack Mounting with Bracket
Gigabit POE Switch 24*10/100/1000Mbps PoE port to 2*1000M SFP Slot DESKTOP/Rack Mounting with Bracket
Gigabit POE Switch 24*10/100/1000Mbps PoE port to 2*1000M SFP Slot DESKTOP/Rack Mounting with Bracket
Gigabit POE Switch 24*10/100/1000Mbps PoE port to 2*1000M SFP Slot DESKTOP/Rack Mounting with Bracket
Gigabit POE Switch 24*10/100/1000Mbps PoE port to 2*1000M SFP Slot DESKTOP/Rack Mounting with Bracket
Gigabit POE Switch 24*10/100/1000Mbps PoE port to 2*1000M SFP Slot DESKTOP/Rack Mounting with Bracket
Gigabit POE Switch 24*10/100/1000Mbps PoE port to 2*1000M SFP Slot DESKTOP/Rack Mounting with Bracket
Specifications
Brand Name :
NUFIBER
Model Number :
NF-PSE5024G-2SFP
Certification :
CE FCC
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
T/T, Western Union
Supply Ability :
5000pcs per month
Delivery Time :
1-3 work days
Packaging Details :
20pcs/carton, carton size: 452*372*297mm
Material :
Iron Case
Color :
Black
POE ports :
24
SFP Port :
2
Standard :
IEEE802.3af/at
Total power :
350Watts
OEM & ODM :
Accepted
Description

Gigabit POE Switch 24*10/100/1000Mbps PoE port to 2*1000M SFP Slot DESKTOP/Rack Mounting with Bracket


Features

  • 24*1000mbps POE port,2*1000mbps SFP UP-Link port;
  • 100m Transmission Distance,1-22 port support VLAN mode,23-24 port can be used as uplink port ;
  • Compatible with IEEE802.3AF/AT;
  • Whole Power:350W;
  • All port supported by MDI/MDIX auto flip and self negotiation;
  • Supply 24pcs 10/100/1000Mpbs adaptive high speed forwarding data packet non-lost port;
  • Each port max. power supply reached 30W;
  • Low heat design, safe and reliable, high stability.

Specifications

Product Name 24 CH Full Gigabit POE Switch(24+2)
Product Model NF-PSE5024G-2SFP
DATA PIN 1/2+,3/6- ;4/5+7/8-
Power Supply Type Build In, 1/2+,3/6-
PoE Output Power 30W
Connector 24*1000mbps POE port,2*1000mpbs SFP Uplink Port
Network Medium Cat5 (UTP) or more
Technology
Network Standards

IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX

IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet
PoE power

30W per port(IEEE802.3af/at).

Wiring: Data & power provided over pairs 1/2 and 3/6 or 4/5 (+) and 7/8(-)
Processing types

Store-and-forward

Half-duplex back pressure and IEEE 802.3x full-duplex flow control
Address database Table Size 8K MAC address
Buffer memory 48Kb embedded memory per unit
Backboard Bandwidth 52Gbps Full duplex
Network Latency Less than 20us for 64 byte frames in store-and-forward mode for 100Mbps to 100Mbps transmission
Power
Input AC 110-240V
PoE power consumption 30W per port(IEEE802.3af/at)
Overload current protection Present
Mechanical
Casing Metal
Installation DESKTOP/Rack mounting with Bracket
Interface
LED Indicators

System: Power, PoE Maximum power

Per port: Link, Activity, Speed, PoE active, PoE error
Environment specification
Operating temperature -10-55℃(32-104℉)
Storage temperature -40-70℃(14-158℉)
Operating humidity 90% maximum relative humidity, non-condensing
Storage humidity 95% maximum relative humidity, non-condensing
Regulatory Approval
ISO Manufactured in ISO9001 facility
Safety CE/CCC
Warranty 1 year
Dimensions 312*185*46mm (L*W*H)
Weight N.W:2Kg G.W:2.3Kg


Connection Diagram

Gigabit POE Switch 24*10/100/1000Mbps PoE port to 2*1000M SFP Slot DESKTOP/Rack Mounting with Bracket

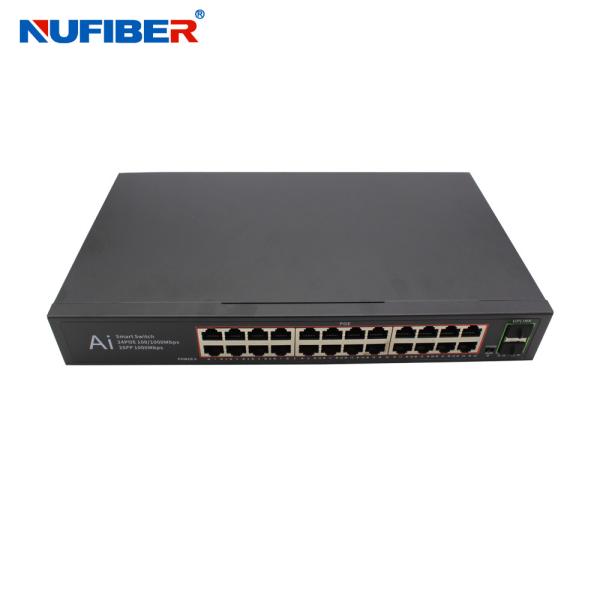

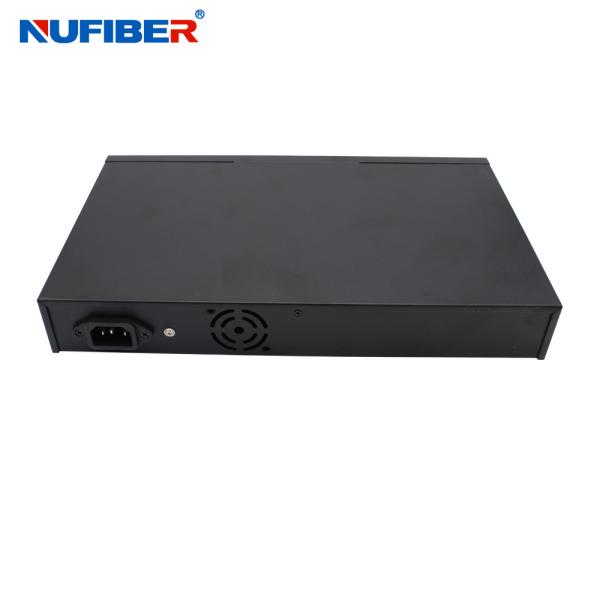

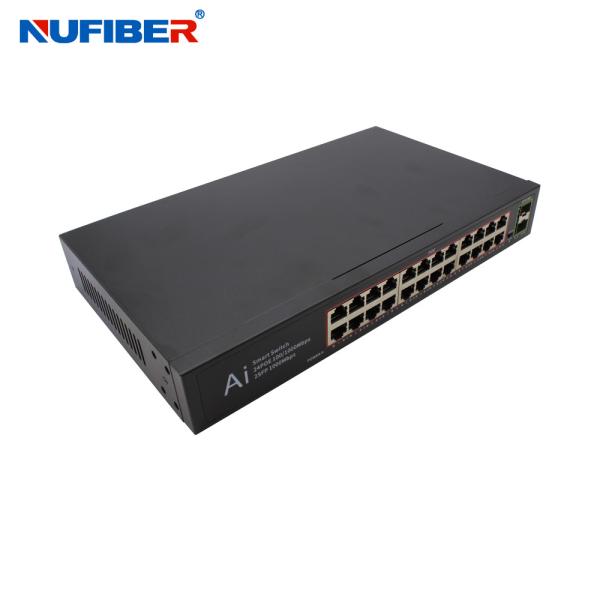

Products Show
Gigabit POE Switch 24*10/100/1000Mbps PoE port to 2*1000M SFP Slot DESKTOP/Rack Mounting with Bracket

Gigabit POE Switch 24*10/100/1000Mbps PoE port to 2*1000M SFP Slot DESKTOP/Rack Mounting with Bracket

Gigabit POE Switch 24*10/100/1000Mbps PoE port to 2*1000M SFP Slot DESKTOP/Rack Mounting with Bracket

Gigabit POE Switch 24*10/100/1000Mbps PoE port to 2*1000M SFP Slot DESKTOP/Rack Mounting with Bracket

Gigabit POE Switch 24*10/100/1000Mbps PoE port to 2*1000M SFP Slot DESKTOP/Rack Mounting with Bracket


Product Show
Gigabit POE Switch 24*10/100/1000Mbps PoE port to 2*1000M SFP Slot DESKTOP/Rack Mounting with Bracket

Packing Information

Gigabit POE Switch 24*10/100/1000Mbps PoE port to 2*1000M SFP Slot DESKTOP/Rack Mounting with Bracket
Shipping Method
Gigabit POE Switch 24*10/100/1000Mbps PoE port to 2*1000M SFP Slot DESKTOP/Rack Mounting with Bracket
FAQ

Gigabit POE Switch 24*10/100/1000Mbps PoE port to 2*1000M SFP Slot DESKTOP/Rack Mounting with Bracket
