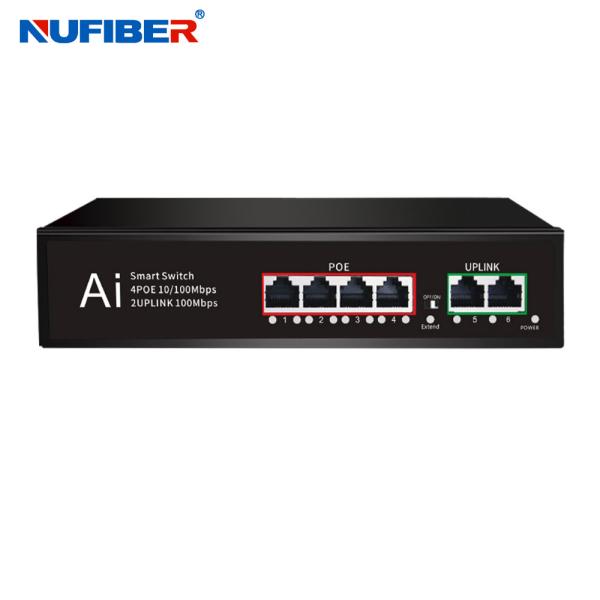

10/100Mbps POE Switch 4 POE Port 2 Uplink Port DC52V1.25A for CCTV IP Camera
10/100Mbps POE Switch 4 POE Port 2 Uplink Port DC52V1.25A for CCTV IP Camera
Specifications
Brand Name :
NuFiber
Model Number :
NF-PSE5204F
Certification :
CE FCC
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
T/T, Western Union
Supply Ability :
5000pcs per month
Delivery Time :
1-3 work days
Packaging Details :
20pcs/carton, carton size: 452*372*297mm
Material :
Iron Case
Color :
Black, Gray
POE ports :
4
Uplink port :
2
Standard :
IEEE802.3af/at
Total power :
65Watts
Power Supply :
built-in power 52V/65W
OEM & ODM :
Accepted
Description

10/100Mbps POE Switch 4 POE Port 2 Uplink Port DC52V1.25A for CCTV IP Camera


Features

  • 4*10/100Mbps PoE port;
  • 2*10/100Mbps Uplink port
  • Whole power budget: 120W
  • Support 250 meters long distance
  • 6KV lightning protection

Specifications

Product Active 4+2 100Mbps PoE Switch
Model NF-PSE5204F
Feature Modular Design, Stardard Size
POE Port 1 to 4 support IEEE802.3AF/AT Standard
Output Power 15.4W/30W IEEE802.3af/at
Power Pin Both 1/2+,3/6- and 4/5+7/8-
Whole Power ≤65W (52V 1.25A)
POE Protocol IEEE 802.3af/IEEE 802.3at
POE Type End-span
Network Standard IEEE 802.3, IEEE802.3u,802.3x,802.3af/at
Network Medium 10/100BASE-TX:5 class and above non shielded twisted pair
Switch Capability 1.2Gbps
Forwarding Mode Store and forward
Forwarding Rate

10BASE-T:14880PPS/port
100BASE-tx:14800pps/port
MAC Address MAC address table 2K
Port Function

Power priority mechanism, fast and forward, MAC automatic learning and aging
IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode
LED Indicator LINK/ACT.100Mbps; POE Status Indicator; Power indicator;Extender
Working Environment Working temperature:-10°-- 55°C
