OEM Unmanaged Industrial SFP Ethernet Switch 8*1000Mbps SFP to 2*10/100/1000M RJ45 Slot Din Rail Mount Switch
OEM Unmanaged Industrial SFP Ethernet Switch 8*1000Mbps SFP to 2*10/100/1000M RJ45 Slot Din Rail Mount Switch
OEM Unmanaged Industrial SFP Ethernet Switch 8*1000Mbps SFP to 2*10/100/1000M RJ45 Slot Din Rail Mount Switch
OEM Unmanaged Industrial SFP Ethernet Switch 8*1000Mbps SFP to 2*10/100/1000M RJ45 Slot Din Rail Mount Switch
Specifications
Brand Name :
NUFIBER
Model Number :
NF582G-SFP
Certification :
CE
Place of Origin :
China
MOQ :
1 pieces
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
1000 pcs per week
Delivery Time :
1~2 work days for sample order
Packaging Details :
1 piece/packing box with spongy filler, 20pcs per standard export carton
Product Name :
Industrial Fiber Media Converter
Connector :
SC/LC (SFP Port) optional
Working Temp. :
-40 ~ +85℃
Warranty :
3 years
Material :
Aluminum Alloy
Installation :
DIN-rail Type
Protection Grade :
IP40
Interface :
8x1000M SFP port + 2x10/100/1000M RJ45 port
Transmission Speed :
10/100/1000Mbps
Power Supply :
DC12~48V
Description

OEM Unmanaged Industrial SFP Ethernet Switch 8*10/100/1000Mbps to 2*1000M SFP Slot Din Rail Mount Switch

Overview

NF582G-SFP an hardened 10-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 8-port 10/100/1000Mbps SFP+2G RJ45 copper interfaces delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 85℃.

Features

Interface

  • 8-port 10/100/1000Mbps SFP
  • 2-port 10/100/1000Mbps RJ45

Industrial conformance

  • 12V to 52V DC, redundant power input
  • -40℃ to 85℃ operating temperature
  • IP40 aluminum housing
  • Supports 6KV DC Ethernet ESD protection
  • Supports 6KV DC EFT protection for power line
  • Free Fall, Shock and Vibration Stability
  • DIN-rail and wall-mountable hardware design

Technical Specification

Model No. NF582G
10/100/1000BASE-FX Port 8 port SFP
10/100/1000BASE-TX Port 2 port RJ-45 auto-MDI / MDI-X

Performance Specification

 Bandwidth: 20Gbps
Packet Buffer Memory:2Mbit
Packet Forwarding Rate:15Mpps
MAC Address Table: 8K
Installation DIN rail
Maximum Frame Size 9000bytes packet size
Flow Control Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
Enclosure IP40 aluminum housing

LED Indicator

Power: Red

Ethernet: Yellow

POE: Green
Power Input 12 to 52V DC redundant power
Power Consumption < 3 watts
Surge protection ±4KV

Network Protocols

IEEE802.3 10BASE-T;

IEEE802.3i 10Base-T;

IEEE802.3u;100Base-TX/FX;

IEEE802.3ab 1000Base-T;

IEEE802.3z 1000Base-X;

IEEE802.3x;
Network cables

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤10meter)

1000BASE-TX: Cat6 or later UTP(≤100 meter)

Industry Standard

FCC CFR47 Part 15,EN55022/CISPR22, Class A

IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)

IEC61000-4-3 (RS): 10V/m (80~1000MHz)

IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV

IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV

IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)

IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
Certification CE FCC Rohs compliance
MTBF >300,000hours
Dimensions (W x D x H) 179 x 134 x 46 mm
Weight

Product Weight: 0.56KG

Packing Weight: 0.66KG

Working Environment

Working temperature: -40～85℃ ;

Storage temperature: -40～85℃

Relative Humidity: 5%~95 %( no condensation)
Warranty 3 Years

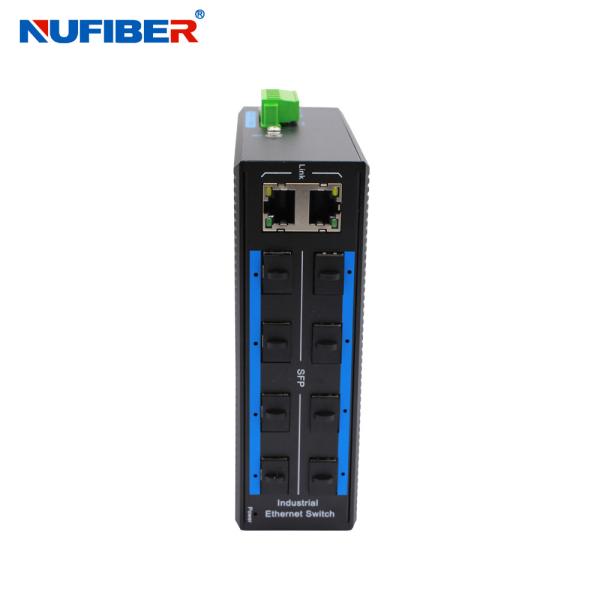

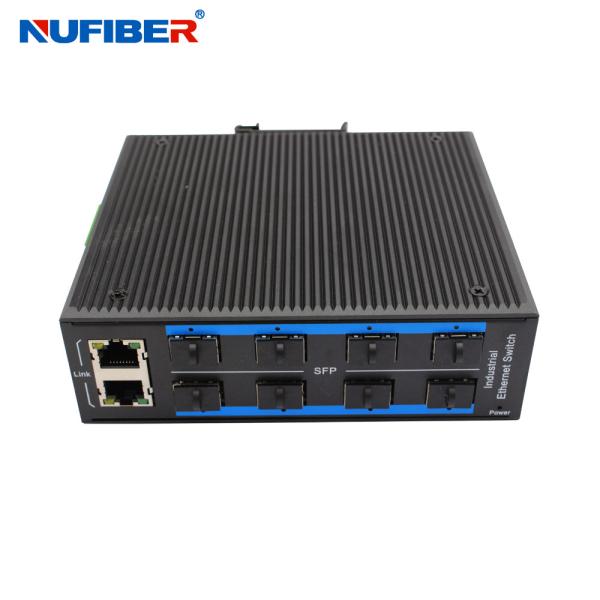

Product Picture

OEM Unmanaged Industrial SFP Ethernet Switch 8*1000Mbps SFP to 2*10/100/1000M RJ45 Slot Din Rail Mount Switch

OEM Unmanaged Industrial SFP Ethernet Switch 8*1000Mbps SFP to 2*10/100/1000M RJ45 Slot Din Rail Mount Switch

OEM Unmanaged Industrial SFP Ethernet Switch 8*1000Mbps SFP to 2*10/100/1000M RJ45 Slot Din Rail Mount Switch

OEM Unmanaged Industrial SFP Ethernet Switch 8*1000Mbps SFP to 2*10/100/1000M RJ45 Slot Din Rail Mount Switch

OEM Unmanaged Industrial SFP Ethernet Switch 8*1000Mbps SFP to 2*10/100/1000M RJ45 Slot Din Rail Mount Switch

OEM Unmanaged Industrial SFP Ethernet Switch 8*1000Mbps SFP to 2*10/100/1000M RJ45 Slot Din Rail Mount Switch

Packing & Shipping

OEM Unmanaged Industrial SFP Ethernet Switch 8*1000Mbps SFP to 2*10/100/1000M RJ45 Slot Din Rail Mount Switch

OEM Unmanaged Industrial SFP Ethernet Switch 8*1000Mbps SFP to 2*10/100/1000M RJ45 Slot Din Rail Mount Switch

OEM Unmanaged Industrial SFP Ethernet Switch 8*1000Mbps SFP to 2*10/100/1000M RJ45 Slot Din Rail Mount Switch
