NUFIBER 2BNC Fiber Video Transceiver Single mode Simplex HD 20km Fiber Video Converter
NUFIBER 2BNC Fiber Video Transceiver Single mode Simplex HD 20km Fiber Video Converter
NUFIBER 2BNC Fiber Video Transceiver Single mode Simplex HD 20km Fiber Video Converter
NUFIBER 2BNC Fiber Video Transceiver Single mode Simplex HD 20km Fiber Video Converter
Specifications
Brand Name :
NUFIBER
Model Number :
NF-2V1D-T/R-F20
Certification :
CE FCC ROHS
Place of Origin :
China
MOQ :
1 Pair
Payment Terms :
Western Union, T/T,Credit Card.
Supply Ability :
5000 pair per month
Delivery Time :
1-3days
Packaging Details :
10pair/ carton standard export packing
Product name :
Fiber Video Transceiver
Color :
Black
fiber port :
20KM
Size :
19.5*14*2.9
fiber type :
single fiber single mode
Wavlength :
1310nm/1550nm
Warranty :
1 year
Video :
2Channel BNC
Power Supply :
5VDC
Material :
Iron Case
OEM & ODM :
Accepted
Data :
RS485 (RS422 available)
Description

Fiber Coaxial Video Converter 2BNC RS485 1 Fiber Video Transmitter and Receiver for CCTV NF-2V1D-T/R-F20

Description

NuFiberRSeries fiber video multiplexers transmit 2-channel of broadcast quality video using 8-bit digitally encoding and decoding over one multimode or single-mode optical fiber. The modules are directly compatible with NTSC, PAL or SECAM CCTV camera systems. These multiplexer units are typically used in applications that have fixed cameras.

Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. A typical installation utilizes a 2-channel transmitter unit at the camera end of the link, connected via a single fiber optic cable, to a 2-channel receiver unit at the monitoring end of the link. Devices are available for either standalone or rack mount installation. The units incorporate LED indicators for monitoring the power and video operating status.

Key Features

▪ 8-Bit Uncompressed Video Transmission

▪ NTSC, PAL or SECAM Video Standards

▪ Transmit up to 30km without Optical Attenuation

▪ Wide Optical Dynamic Range

▪ No EMI, RFI, Cross Talk and Video Distortion

▪ Adjustment-free Operation

▪ LED indicators Instantly Monitoring System Performance

▪ Standalone or Rack Mount

Specifications

• Video
Video input/output impedance BNC 75 Ω
Number of Channels 2 Channels Video
Video input 1 volt pk-pk (75 ohms)
Bandwidth 5 Hz - 8 MHz
Bit Resolution 8-Bit Digital Transmission
Differential Gain < 1.5%
Differential Phase < 1.5 °
Tilt < 5%
Signal-to-Noise Ratio(SNR) > 67 dB
• Data
Data Format RS485
Bit Error Rate 10E-9
• Electrical & Mechanical
Input Power Requirements DC5V @ 2A
Power Adapter AC 100V~240V
Stand-Alone Dimensions 140*110*25mm
Card for 4U Rack Dimensions 195*140*29mm
• Environmental
Operating Temperature 0°C ~ +50°C
Storage Temperature -20°C ~ +70°C
Relative Humidity 0% ~ 95% (non-condensing)
MTBF >100,000 hours

Products Show

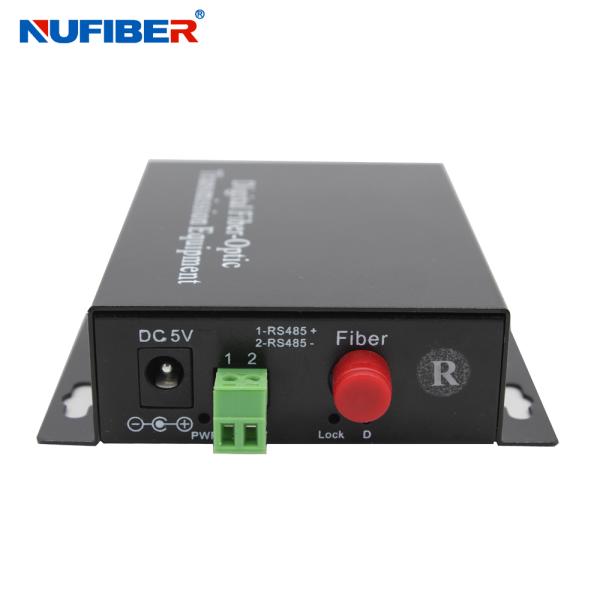

NUFIBER 2BNC Fiber Video Transceiver Single mode Simplex HD 20km Fiber Video Converter

NUFIBER 2BNC Fiber Video Transceiver Single mode Simplex HD 20km Fiber Video Converter

NUFIBER 2BNC Fiber Video Transceiver Single mode Simplex HD 20km Fiber Video Converter

NUFIBER 2BNC Fiber Video Transceiver Single mode Simplex HD 20km Fiber Video Converter

NUFIBER 2BNC Fiber Video Transceiver Single mode Simplex HD 20km Fiber Video Converter

NUFIBER 2BNC Fiber Video Transceiver Single mode Simplex HD 20km Fiber Video Converter

Connection Diagram

NUFIBER 2BNC Fiber Video Transceiver Single mode Simplex HD 20km Fiber Video Converter

Packing & Shipping

NUFIBER 2BNC Fiber Video Transceiver Single mode Simplex HD 20km Fiber Video Converter

NUFIBER 2BNC Fiber Video Transceiver Single mode Simplex HD 20km Fiber Video Converter
