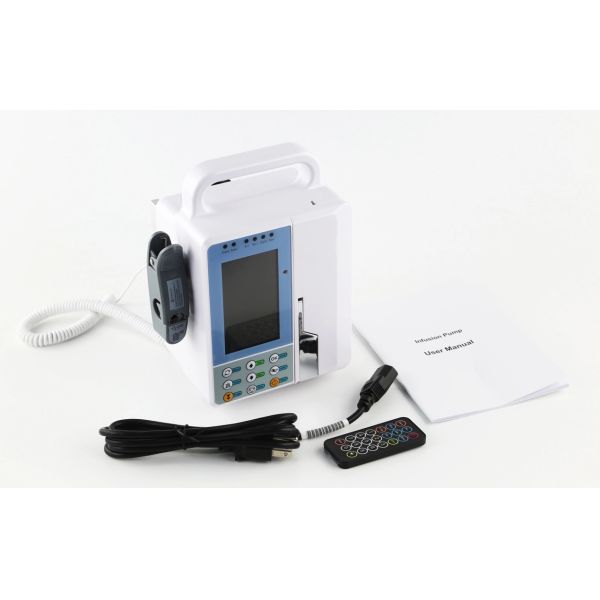

Medical Intravenous Fluid Infusion Pump
Medical Intravenous Fluid Infusion Pump
Medical Intravenous Fluid Infusion Pump
Medical Intravenous Fluid Infusion Pump
Medical Intravenous Fluid Infusion Pump
Medical Intravenous Fluid Infusion Pump
Medical Intravenous Fluid Infusion Pump
Medical Intravenous Fluid Infusion Pump
Medical Intravenous Fluid Infusion Pump
Medical Intravenous Fluid Infusion Pump
Medical Intravenous Fluid Infusion Pump
Medical Intravenous Fluid Infusion Pump
Specifications
Brand Name :
HK
Model Number :
PRIP-A9000
Certification :
CE/FDA/ISO
Place of Origin :
China
MOQ :
1 Unit/Units (Min. Order)
Price :
$258.00 - $288.00 / Unit
Payment Terms :
T/T
Supply Ability :
200 Unit/Units per Month Medical Fluid Infusion Pump
Delivery Time :
1 - 10Units,7DAYS,11 - 50Units,14DAYS,51 - 200Units,30DAYS;>200Units,To be negotiated
Packaging Details :
Cartons for Medical Fluid Infusion Pump
Properties :
Injection & Puncture Instrument
Instrument classification :
Class II
Product Type :
Medical Fluid Infusion Pump
Screen :
4.3 inch color LCD display
Working modes :
Rate/Volume/Time mode
Drip Detector :
Yes
Infusion monitoring system :
Optional
Optional :
Optional
Description

Product Description

Specification

* makes operating more convenient.

* infusion monitoring system (Optional),
* the status of each pump is displayed in real time at the central station through wireless transmission.

* 4.3 inch color LCD display, with backlight, suitable for working in various ambient light conditions.
* Display time, battery, infusing status, mode, rate, target volume, accumulated volume, target volume, sound volume, pressure, department, bed No., I/V set, temperature of medication

* Drip Detector.

* Infusion Stand (Optional)

Features

1. 4.3 inch color LCD with backlight
2. Three working modes: Rate/Volume/Time mode
3. Purge, KVO function
4. Heating function , suitable for infusing in winter or there is requirement for the fluid medication temperature.

Remote Controller

5. Audible and Visible alarms
6. Alarm: Infusion Complete, Empty, Faulty Signal, Misoperation, Occlusion, Door Open, Air Bubble, Low Battery,

Setting Error, AC power off, Idle
7. Calibration function, disposable IV set of any brand is suitable for this pump.

Specification:

Pump Type Drip type infusion pump
Pumping Way Peristalic fingers

Adjustable

Drop Rate Range

 1~400 drops/min (step: 1 drop/min)
Adjustable Volume Rate Range 1~1200 ml/h (when 1~99.9 ml/h, step: 0.1 ml/h; greater than 99.9 ml/h, step: 1 ml/h)
Flow Precision Within±3% (using the IV set appointed by the manufacturer or calibrated high quality IV set) Mechanical precision: within±2%.
Purge Rate 800 ml/h
KVO Rate

1 ml/h (1~300 ml/h)

3 ml/h (greater than 300 ml/h)
Infusion Volume Range 1 ml~9999.9 ml (step: 0.1 ml)
Maximum Accumulated Volume 9999.9 ml (step: 0.1 ml)
Time Range 1 min~9999 min (step: 1 min)
Occlusion Alarm Threshold

High:800mmHg±200mmHg(106.7kPa±26.7kPa)

Medium:500mmHg±100mmHg(66.7kPa±13.3kPa)

Low: 300 mmHg±100 mmHg (40.7kPa±13.3kPa)
Alarm Infusion Complete, Empty, Faulty Signal, Misoperation, Occlusion, Door Open, Air Bubble, Low Battery, Setting Error, AC power off, Idle.
Air Bubble Detector Method: ultrasonic wave, sensitivity: ≥25 μL
Fuse

F1AL/250V ("F" indicate fast,"L" indicate low breaking capacity),

2 pcs (installed inside pump)
Power Supply AC 85~265V, 50/60Hz
Internal Battery

11.1V rechargeable li-ion battery. Capacity: ≥2000mAh

the pump can work more than 4 hours at the flow rate of 25 ml/h after charging for 8 hours (Medium rate specified by GB 9706.27-2005)
Power ≤40VA
Size 188 mm(L)*198 mm(W)*228 mm(H)
Weight 2.2KG
Environment Requirements Transport
Ambient Temperature -30℃~+55℃
Relative Humidity 20%~95% (non-condensing)
Atmosphere Pressure 70kPa~106kPa
Storage
Ambient Temperature -30℃~+55℃
Relative Humidity 20%~95%
Atmosphere Pressure 70kPa~106kPa
Operation
Ambient Temperature +5~+40℃
Relative Humidity 20%~90%
Atmosphere Pressure 86kPa~106kPas

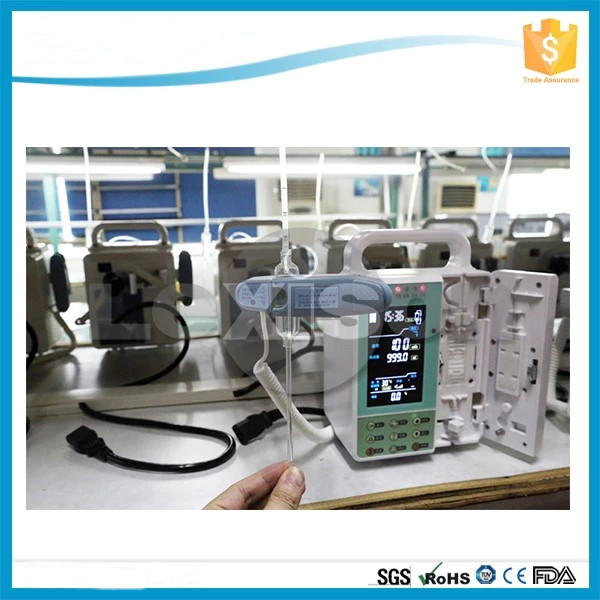

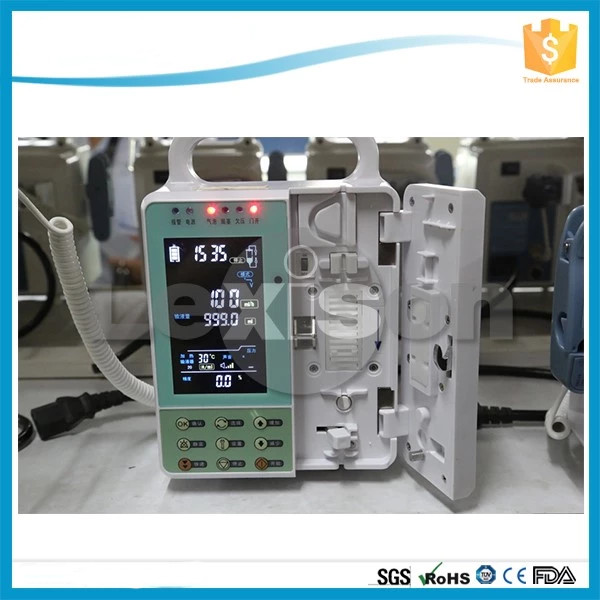

Sample Show for Infusion Pump

Medical Intravenous Fluid Infusion Pump

Medical Intravenous Fluid Infusion Pump

Medical Intravenous Fluid Infusion Pump

Medical Intravenous Fluid Infusion Pump

Medical Intravenous Fluid Infusion Pump
