4 axis CAD/CAM 5 axis dental milling machine for zirconia PMMA WAX/Cleaning & Filling Teeth Equipments
4 axis CAD/CAM 5 axis dental milling machine for zirconia PMMA WAX/Cleaning & Filling Teeth Equipments
4 axis CAD/CAM 5 axis dental milling machine for zirconia PMMA WAX/Cleaning & Filling Teeth Equipments
4 axis CAD/CAM 5 axis dental milling machine for zirconia PMMA WAX/Cleaning & Filling Teeth Equipments
4 axis CAD/CAM 5 axis dental milling machine for zirconia PMMA WAX/Cleaning & Filling Teeth Equipments
4 axis CAD/CAM 5 axis dental milling machine for zirconia PMMA WAX/Cleaning & Filling Teeth Equipments
Specifications
Brand Name :
HK
Model Number :
SDM4
Certification :
CE
Place of Origin :
China
MOQ :
1 Set/Sets (Min. Order)
Price :
$6500.00 - $74,000.00
Payment Terms :
T/T
Supply Ability :
200 Set/Sets per Month
Delivery Time :
Within 7 days after getting payment
Packaging Details :
Outer packaging: standard seaborne export plywood box. 2. Inner packaging: waterproof stretch film and plastic film.
Warranty :
1 YEAR
Power supply :
220V/50Hz±1Hz
Material :
Metal
After-sale Service :
Online Technical Support
Feature :
Easy Operation
Single package :
85X85X96 cm
gross weight :
180.000 kg
Description

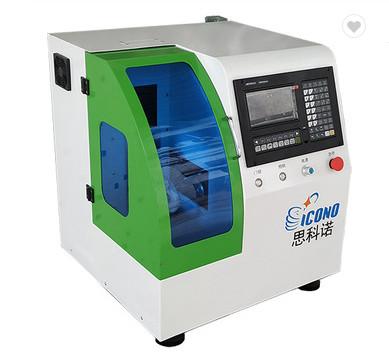

SDM4, one compact four-axis dental milling machine center, with high-rigidity body Design, imported precision grinding stage screw and guide rail, high accuracy maintained.
SDM4, Could be worked on many kinds metal & nonmetal Single crown, Long bridge (up to 14),
Zirconium teeth, inlays, onlays, temporary restorations, wax shape. Offer the best solution for dental milling and repairing.

♦ Efficient zirconia milling

♦ Extreme precision

♦ Excellent performance

♦ Extraordinary stability

♦ Horizontal spindle design

♦ Worry-free after-sales service

Name 4 Axis dental CAD/CAM milling machine with touch screen for dental lab
Model SDM4
Milling mode Dry
Millable material Zirconia,Wax,PMMA

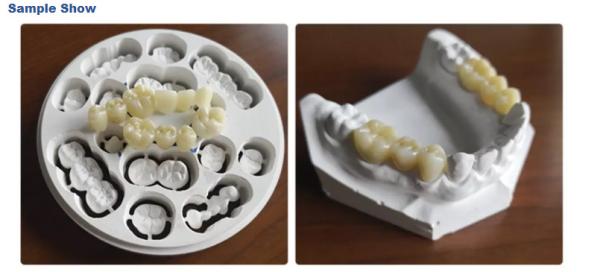

Product type Crown/coping, Bridge, Inlay/onlay
Spindle power 1200W/1500W
Speed of spindel 60000rpm
Spindle cooling Water cooled
Rotation range A axis ±360°
Number of burs(Tools) housed 3 pcs(R1,R0.5,R0.3)
Attachable bur(tool) shank diameter 3.175mm or 3mm (R1,R0.5,R0.3)
Length 45mm
Tool change and check Fully automatic
Compatible compressed air 0.6MPa
Loadable workpiece shape External Diameter 98mm
Max Height 25mm
Min. Height 10mm
External dimensions Length 590mm
Weight(Depth) 620mm
Height 700mm
Packing dimension 85X85X96cm
Weight 150KG
G.weight 180KG
Input Voltage Single-phase 220V 50Hz/60Hz
Control command set NC code
Positioning accuracy 0.02mm
Average milling time(dental crown) Zirconia 8-15 min
Wax 3-6 min
PMMA 12 min

4 axis CAD/CAM 5 axis dental milling machine for zirconia PMMA WAX/Cleaning & Filling Teeth Equipments

4 axis CAD/CAM 5 axis dental milling machine for zirconia PMMA WAX/Cleaning & Filling Teeth Equipments

4 axis CAD/CAM 5 axis dental milling machine for zirconia PMMA WAX/Cleaning & Filling Teeth Equipments

Our Services

Dear customers,

Thank you very much for your support and kindness to us all the time , so that both sides have established a good cooperation.In order to make you can reduce the cost of the designers and CAD/CAM software, We can provide you with the design of the NC file services.And the design services and prices are as follows.

2019-12-8

Price list

Details name Unit price(USD) Remarks
Crown/Inlay/Onlay/Veneer Design $4 per tooth
Maryland Bridge Design $4 per tooth
Model Builder Design $4 per tooth
Implant Bridge Design(all on 4) (upperJaw or LowerJaw) $70
Implant Bars Design $45
Implant hybrid bridge Design(with gingiva) $90
Custom Abutment Design $6 per tooth
Screw Retained Crown Design $6 per tooth
Digital Smile Design $30
Bite splint Design $23
Removable Partial Design(RPD) $15
Ortho Appliance Design $15
Ortho Indirect Bonding Design $120
FAQ

Company Information:
1. Professional: 11years professional supplier of medical & health supplier. Providing service to the customers from over 130 countries.
2. Quality Assurance: CE and ISO certificates for quality assurance
3. Competitive price: We always ensure high price performance to benefit our customers.
4. OEM available& Fee sample & Small order acceptable.
5. Timely Delivery: Your order shall be shipped once finished.
6. Main products: Medical Consumables, Medical Equipment, First Aid Kits, Dental Products, Healthcare Products, Veterinary and Pet Products, Laboratory Products, Ungrouped, etc.
