Mono-Polar/Bipolar High Frequency Electrocautery
Mono-Polar/Bipolar High Frequency Electrocautery
Specifications
Brand Name :
HK
Model Number :
LM-VC-002AI
Certification :
CE/FDA/ISO
Place of Origin :
China
MOQ :
1 Set/Sets (Min. Order)
Price :
$4,050.00 - $4,500.00 / Set
Payment Terms :
T/T
Supply Ability :
1000 Piece/Pieces per Month
Delivery Time :
3-7 DAYS FOR SAMPLES; 5-25 DAYS FOR BATCH GOODS
Packaging Details :
Carton Package
Type :
Electrosurgical Generator
Instrument classification :
Class II
Electrosurgical Pencil :
Nine Working Modes
Working Frequency :
a) Monopolar:512KHz b) Bipolar:1024KHz
Power :
220V±22V, 50Hz±1Hz(110V±11V, 60Hz)
Pure cut :
1W~400W( Load 800Ω)
Blend 1 :
1W~300W(Load 800Ω)
Blend 2 :
1W~200W(Load 800Ω)
Blend 3 :
1W~150W(Load 800Ω)
Description

Product Description

Main Features:

★ Max 400W Electrosurgical Generator, with mono-polar and bipolar function.

★ Nine working modes: pure cut, blend1, blend2, blend3, contact coag, forced coag, soft coag, bipolar coag, bipolar cut.

★ Wide clinical applications, such as the general surgery, thoracic surgery, orthopedic surgery, cardiology, gynecology, urology(under water TUR), oncology, neurosurgery, etc.

★ Microprocessor controlled, LCD touch screen display. With audible and visual indicators and errors codes during the process of outputting.

★ Return Electrode Monitoring system and Power Peak System, minimizing the risk of tissue damage.

★ Both hand and foot controlled.

★ Separate power display and outlet socket for mono-polar cut, mono-polar coag, bipolar cut and bipolar coag, each output can be individually configured.

★ The unit always remember the last setting when it turned off.

★ Remote control function. The surgeon can adjust the outputs by power control ESU pencil.

★ The ESU unit can be connected with laparoscope and endoscope, etc.

★ Protection against over-voltage and over-current.

★ Defibrillation protected.

★ Convection refrigeration without ventilator.

★ Mounted on a 4 wheels cart(optional).

★ Have RS-232 serial port

★ Meets the requirements of international safety standards EN60601-1 and EN60601-2

Specifications

◆Power: 220V±22V, 50Hz±1Hz(110V±11V, 60Hz)

◆Power rating: 1100VA±10%

◆Power Consumption: ≤1100VA

Ralated Power output:

Function
Working Modes
Power output
(Max)
Load
Frequency
V-PP
Crest
Factor
Monopolar Cut
Pure cut
400W
800Ω
512KHz
2.6KV
1.5
Blend 1
300W
800Ω
4KV
1.8
Blend 2
200W
800Ω
4.2KV
2.1
Blend 3
150W
800Ω
4KV
2.7
Monopolar Coagulation
Spray
80W
800Ω
5.3KV
7.4
Forced
80W
800Ω
5KV
3.8
Soft
120W
800Ω
720V
1.6
Bipolar
Standard coag
70W
200Ω
1024KHz
550V
1.6
Macro-bipolar
120W
200Ω
350V
1.6
Detailed Images
Accessories Name
Qty
Main Unit
1 sets

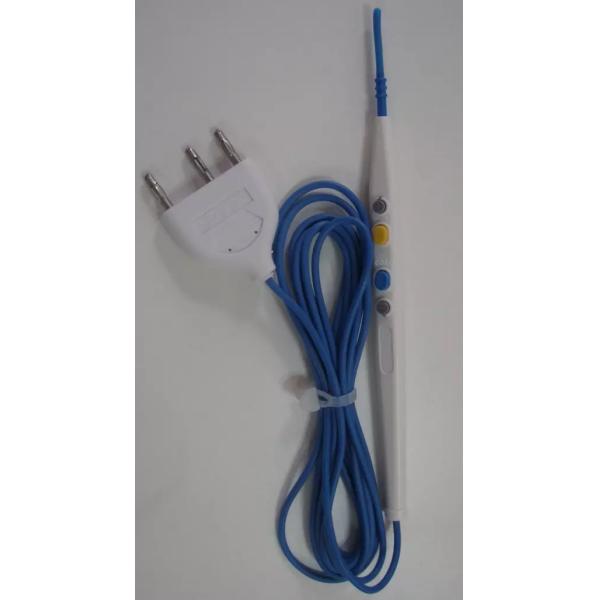

Electrosurgical Pencil
5 pcs

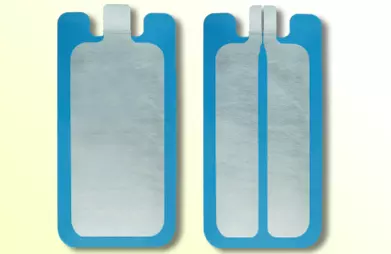

Electrosurgical Pad
10 pcs

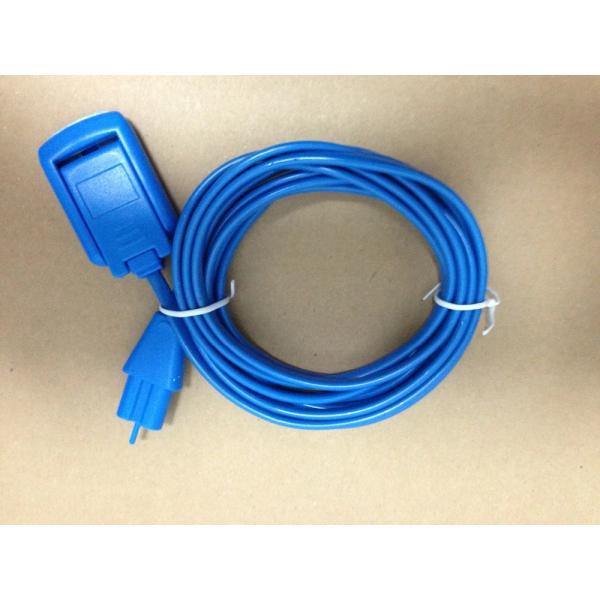

Electrosurgical pad cable
1 pc
Footswitch
1 set

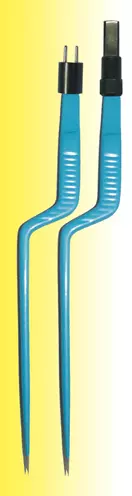

Bipolar Forceps
1 pc

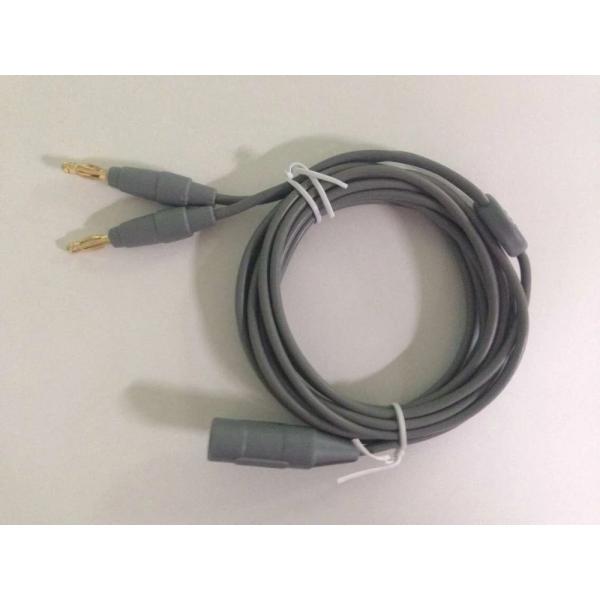

Bipolar Forceps cable
1 pc
Tip Clean Sponge
1 pc

Accessories Photos:

Mono-Polar/Bipolar High Frequency ElectrocauteryMono-Polar/Bipolar High Frequency ElectrocauteryMono-Polar/Bipolar High Frequency Electrocautery

Mono-Polar/Bipolar High Frequency ElectrocauteryMono-Polar/Bipolar High Frequency ElectrocauteryMono-Polar/Bipolar High Frequency ElectrocauteryMono-Polar/Bipolar High Frequency Electrocautery

Packing & Delivery

Mono-Polar/Bipolar High Frequency Electrocautery
