LCD Touch Screen Display Electrosurgical Generator
LCD Touch Screen Display Electrosurgical Generator
Specifications
Brand Name :
HK
Model Number :
LM-VC-002A
Certification :
CE/FDA/ISO
Place of Origin :
China
MOQ :
1 Set/Sets (Min. Order)
Price :
$3,400.00 - $5,000.00 / Set
Payment Terms :
T/T
Supply Ability :
1000 Set/Sets per Month
Delivery Time :
3-7 DAYS FOR SAMPLES; 5-25 DAYS FOR BATCH GOODS
Packaging Details :
Paper carton
Properties :
Abdominal Surgery Equipments
Type :
Knife
Instrument classification :
Class II
Application :
Prostate Vaporizing Surgical Operation(TUR)
Power :
220V±22V, 50Hz±1Hz(110V±11V, 60Hz)
Operating frequency :
416KHz
Power rating :
1100VA±10%
Description

Product Description

Main Features:

★ Max 300W Electrosurgical Generator, with mono-polar and bipolar function.

★ Seven working modes: pure cut, blend1, blend2, contact coag, forced coag, bipolar coag, bipolar cut.

★ Wide clinical applications, such as the general surgery, thoracic surgery, orthopedic surgery, cardiology, gynecology, urology(under water TUR), oncology, neurosurgery, etc.

★ Microprocessor controlled, LCD touch screen display.With audible and visual indicators and errors codes during the process of outputting.

★ Return Electrode Monitoring system and Power Peak System, minimizing the risk of tissue damage.

★ Both hand and foot controlled.

★ Separate power display and outlet socket for mono-polar cut, mono-polar coag, bipolar cut and bipolar coag, each output can be individually configured.

★ The unit always remember the last setting when it turned off.

★ Remote control function. The surgeon can adjust the outputs by power control ESU pencil.

★ The ESU unit can be connected with laparoscope and endoscope, etc.

★ Protection against over-voltage and over-current.

★ Defibrillation protected.

★ Convection refrigeration without ventilator.

★ Mounted on a 4 wheels cart(optional).

★ Meets the requirements of international safety standards EN60601-1 and EN60601-2.

Technical Specifications:

Power: 220V±22V, 50Hz±1Hz(110V±11V, 60Hz)

Operating frequency: 416KHz

Power rating:1100VA±10%

Ralated Power Output

Function
Working mode
Power output
(Max)
Load
Frequency
V-PP
Crest Factor
Monopolar Cut
Pure cut
300W
800 Ω
416KHz
1.1KV
1.5
Blend 1
250W
800 Ω
1.6KV
1.8
Blend 2
200W
800 Ω
1.9KV
2.2
Monopolar Coagulation
Spray
80W
800 Ω
2.5KV
5.5
Forced
120W
800 Ω
960KV
1.8
Bipolar
Standard coag
50W
200 Ω
480KV
1.8
Macro-bipolar
120W
200 Ω
600KV
1.8

Detailed Images

LCD Touch Screen Display Electrosurgical Generator

Standard Accessories

Accessory Name
Quantity

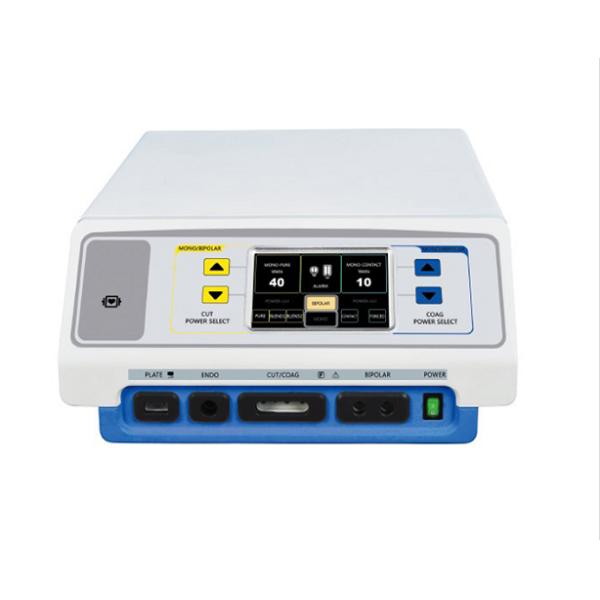

Main Unit
1set

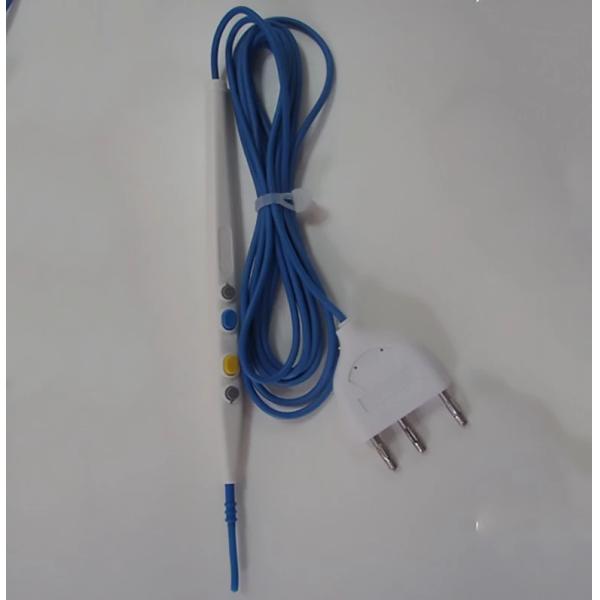

Electrosurgical Pencil
5pcs

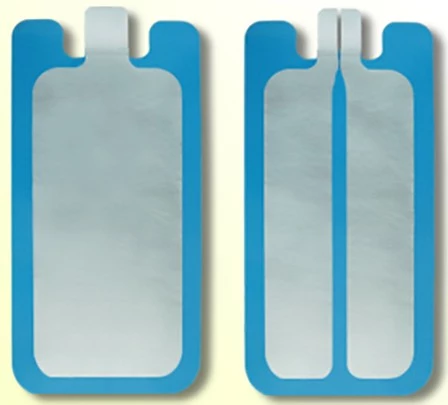

Electrosurgical Pad
10pcs

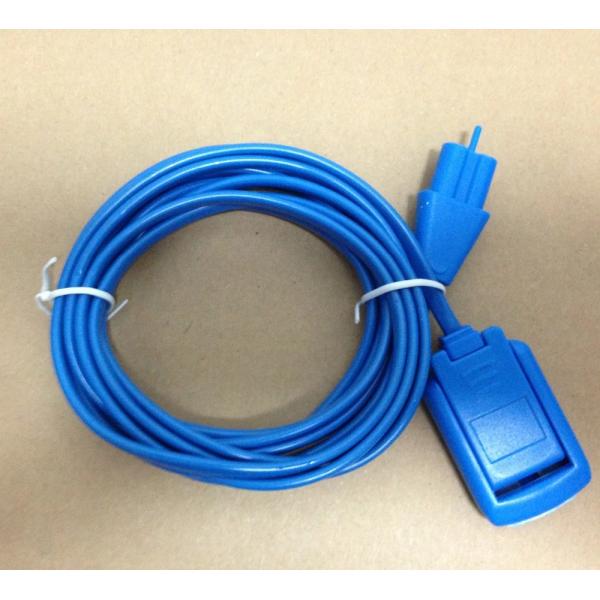

Electrosurgical pad cable
1pc

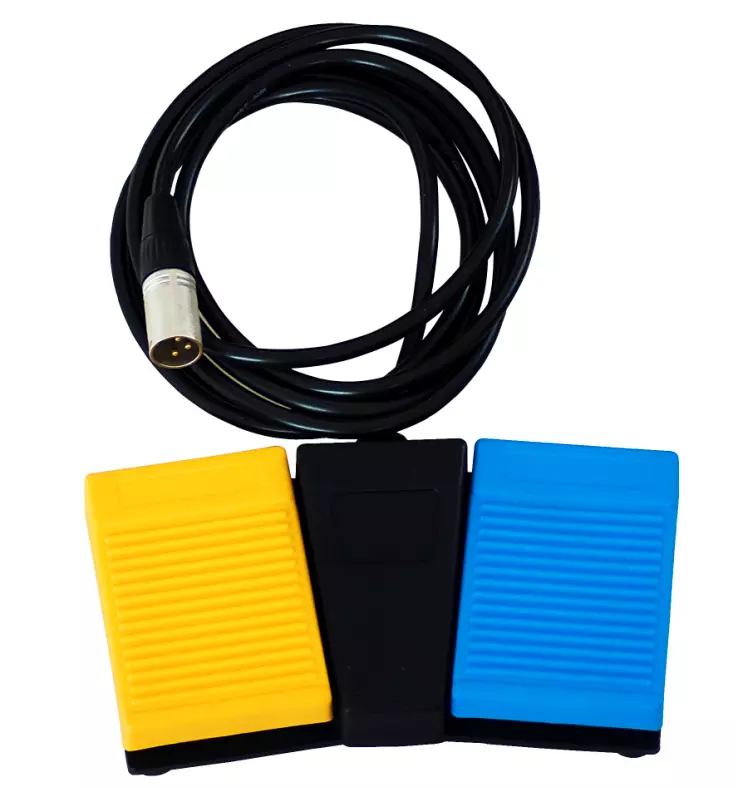

Footswitch
1set

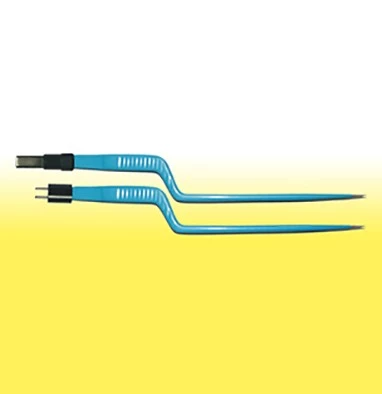

Bipolar Forceps
1pc

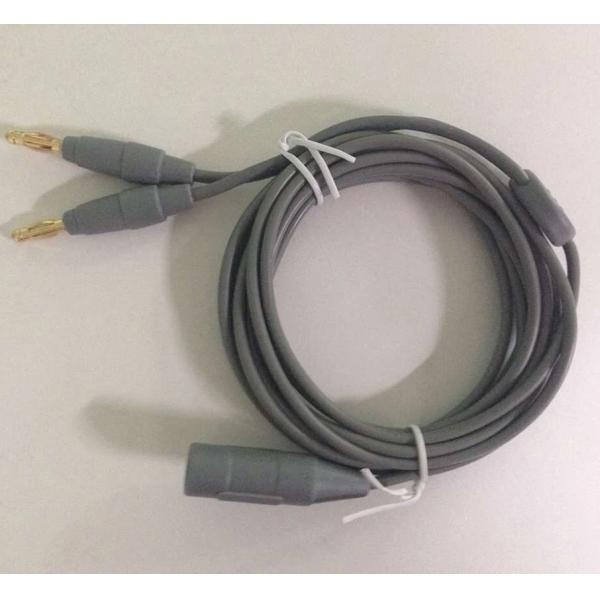

Bipolar Forceps cable
1pc

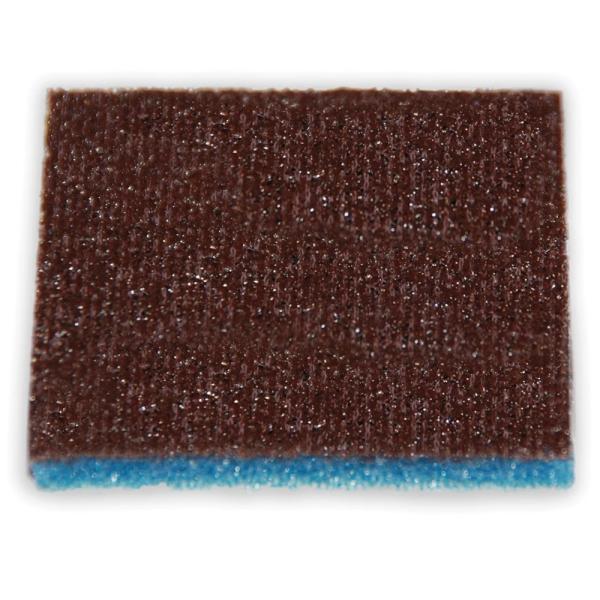

Tip Clean Sponge
1pc

LCD Touch Screen Display Electrosurgical GeneratorLCD Touch Screen Display Electrosurgical GeneratorLCD Touch Screen Display Electrosurgical GeneratorLCD Touch Screen Display Electrosurgical GeneratorLCD Touch Screen Display Electrosurgical GeneratorLCD Touch Screen Display Electrosurgical GeneratorLCD Touch Screen Display Electrosurgical Generator

Packing & Delivery

LCD Touch Screen Display Electrosurgical Generator
