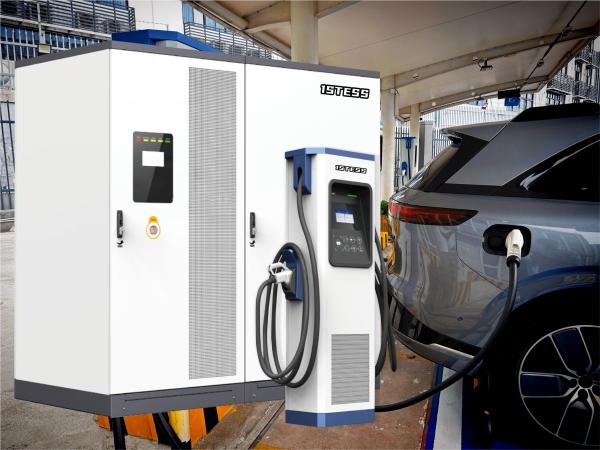

Renewable BESS EV Charging Station 150V - 1000V All In One Energy Storage Station
Renewable BESS EV Charging Station 150V - 1000V All In One Energy Storage Station
Renewable BESS EV Charging Station 150V - 1000V All In One Energy Storage Station
Renewable BESS EV Charging Station 150V - 1000V All In One Energy Storage Station
Renewable BESS EV Charging Station 150V - 1000V All In One Energy Storage Station
Renewable BESS EV Charging Station 150V - 1000V All In One Energy Storage Station
Renewable BESS EV Charging Station 150V - 1000V All In One Energy Storage Station
Renewable BESS EV Charging Station 150V - 1000V All In One Energy Storage Station
Specifications
Brand Name :
1STESS
Model Number :
540K2-200-200
Certification :
CE
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
L/C, T/T
Delivery Time :
45-60 days
Packaging Details :
container
Application :
Electric Car Charging
EV Charging Point :
Max 4 points with 2 dispensers
EV Charging power transfer :
Ring net powertransfer between the 4 charging point
EV Charging Voltage :
150V-1000V
BMS :
2 level BMS structure: Battery Pack BSU+ High voltage control box BMU
Storage capacity :
200kWh
Warranty :
5 Years
Description

Product Parameter:

IHS540K2 540kW POWER CUBE
AC grid access AC input voltage 45-65Hz/3-phases+N+PE/380/480Vac(±10%)
AC max input power 360kW
AC Distribution AC Grid charging power to Energy Storage Battery is max 120kW, Max. 240kW to EV
Max AC feedback power (optional) EES Battery to Grid/EV battery to Grid, depend on the configuration of bidirectional AC2DC
Energy Storage Battery access Battery group access Max 2 groups
Battery capacity / group 200kWh /280Ah /627V-806V/0.5 C dis/charge /max 0.75 C discharge 30 min
Battery charging power from AC Grid Max 2* 60kW =120kW (4 ACDC power module configuration)
Battery discharging channel to EV Max 4 channels
Battery B2V EV charging power Max 4* 60kW =240kW (8 DCDC power module configuration)
Battery to Grid/ B2G feedback power (optional) Depend on the configuration of bidirectional converter
Electric Vehicle charging EV Charging point Max 4 point with 2 Dispensers
EV Charging power Max 360kW
EV Charging power transfer Ring net power transfer between the 4 charging point
EV Charging voltage 150V-1000V
Electric Vehicle discharging EV feedback to AC Grid/V2G power (optional) Depend on the configuration of the bidirectional AC2DC
Pv access Access channel Max 2 channel
Access power Max 2*30kW MPPT
Metering AC Grid side 1 AC energy meter
HMI 7"TFT Touch Screen, 5 LED, E-STOP
Dimensions W*H*D mm = 1000 * 2200* 1150 mm Weight: 550+21*18 = 928 kg (Full power modules)
Off Grid/Backup Optional function, support backup power for AC bus / Backup power depend on the configuration of the bidirectional AC2DC

Product description:

The energy storage charging system uses the lithium battery groups to do energy storage through the localand cloud EMS. The system can balance power supply and power usage between the grid, battery, EVcharging and new energy input. lt helps getting value in grid peak load shaving, grid capacity expansion andnew energy resources access. Also it can be the smart grid core access point with V2G/ V2X/ B2Gfunction in the solution.

Application Diagram:

Renewable BESS EV Charging Station 150V - 1000V All In One Energy Storage Station

Solution Feathers:

* Total electric insolation between the grid, battery,EV and new energy input

* Full compatible between different systemconfiguration

* Flexible change the system configuration, capacityand power direction

* Differentiation battery group configuration andaccess

* Unify EMS stragety

* HPC 500A charging support
