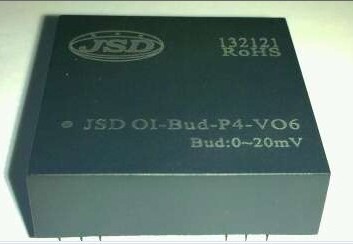

Pressure-strain bridge/differential signal isolation transmitter for pressure sensor
Pressure-strain bridge/differential signal isolation transmitter for pressure sensor
Specifications
Place of Origin :
Shenzhen,China
Brand Name :
JSD
Certification :
CE
MOQ :
3 PCS
Price :
1
Packaging Details :
DIN35 RAIL MOUNTING
Delivery Time :
2 WORKDAYS
Payment Terms :
T/T /PAYPAL/ Western Union
Supply Ability :
500000/MONTH
Usage :
Pressure Sensor
Output :
Analog Sensor
Theory :
pressure sensor
Description

Pressure-strain bridge/differential signal isolation transmitter for pressure sensor Features:

● pressure-strain bridge signal to analog signals, such as (0~5V/0~10V/1~5V/4~20mA/0~20mA)

● Low cost, international standards DIN35mm rail mounting installation

● Three-port isolation (between Power supply, input, output )

● High accuracy:(0.1% F.S,0.2% F.S)

● High isolation voltage: 2500VDC

● Wide Industrial class operation temperature (-45 ~ +85 ℃)

● High reliability (MTBF> 50 Wan hour)

● Power supply: 5V, 12V, 15V, 24V DC, etc. .

● International standard signal output (0~5V/0~10V/0 ~±10V/4 ~ 20mA/0~±20mA, etc.)

ELECTRICAL CHARACTERISTICS:

Accuracy --------- 0.1% ,0.2%

Assistance Power Supply -DC5V,12V,15V 24V

Operating temperature------(-45 ~ +85 ℃)
Operating Humidity----- 10 ~ 90%(No condensation)

Storage Temperature ---------- 55 ~ +105 ℃

Isolation---------between input ,output and Power supply

Insulation resistance-------- ≥20MΩ

Isolation Voltage -------- 3kVDC (Tested for 1minute and leakage current < 1mA)

Storage humidity --------- 10 ~ 95% (No condensation)

Pressure-strain bridge/differential signal isolation transmitter for pressure sensor Selection Example:

Example 1: Signal input: 2mV / V 5VDC Distribution; power supply: 12VDC; signal output: 0-10V; model: DIN35 1x1 OI-B1-P3-VO5

Example 2:Signal Input: 2mV / V 10VDC Distribution; power supply: 24VDC; signal output: 4-20mA; model: DIN35 1x1 OI-B2-P1-IO1

Example 3: Signal Input: 0-100mV, no distribution; Power supply: 24VDC; signal output: 0-20mA; model: DIN35 1x1 OI-B6-P1-IO2
