4-20mA to frequency pulse signal isolation transmitter (I/F V/F converter)4-20mA/0-10V to 0-5KHZ/0-10KHZ I/F converter

Specifications

Place of Origin :

shenzhen,China

Brand Name :

JSD

Certification :

CE ROHS

Model Number :

JSD TAF-1001S-

MOQ :

Price :

competitive price

Packaging Details :

standard

Delivery Time :

3 work days

Payment Terms :

paypal , T/T, Western Union, MoneyGram

Supply Ability :

every day

Supply Voltage :

24VDC/15VDC/12VDC/5VDC

Dissipation Power :

Operating Temperature :

-45~+85 Celsius

Type :

Voltage Regulator

Application :

Wireless Control

size :

115X100X12.5mm

Description

4-20mA to frequency pulse signal isolation transmitter (I/F converter)selection example:

4-20mA to frequency signal isolation transmitter (V/F converter)Features:
Low cost, international standards DIN35mm rail mounting
three-port isolation (input, output and power supply )
High accuracy (0.1% F.S, 0.2% F.S)
High linearity (0.1% F.S)
High isolation voltage (2500VDC/60S)
Low temperature drift (35PPM / Celsius)
Wide industrial class operation temperature (-45~+85Celsius)
High reliability (MTBF>50 Wan hour)
Power supply (5VDC/12VDC/15VDC/24VDC single power supply options)
International standard signal input (0~5V/0~10V/1~5V/4~20mA/0~20mA) etc.
Standard signal input (0~5KHz/0~10KHz/1~5KHz etc.)
Passed CE Certificate

4-20mA to frequency pulse signal isolation transmitter (I/F V/F converter)4-20mA/0-10V to 0-5KHZ/0-10KHZ I/F converter

V/F converterGeneral Description:
Jie Shengda Technology JSDTAF-1001S series analog to frequency signal isolation transmitter is a precision isolation transmitter.it can isolate and transform the inputting analog voltage (or current) signal into corresponding digital pulse frequency . The product is isolated between power supply, input, output and isolated power, the isolated voltage between them is up to 2500VDC. The isolation transmitter is widely used in phase modulation, frequency modulation, analog/digital conversion, digital voltmeter, data measurement and remote telemetry remote control device. The product has been corrected, the transmitter isolation adopts international standard DIN35mm rail installation, user can install it directly. If the product fails to meet user, we provide customized
4-20mA to frequency pulse signal isolation transmitter (I/F V/F converter)4-20mA/0-10V to 0-5KHZ/0-10KHZ I/F converter

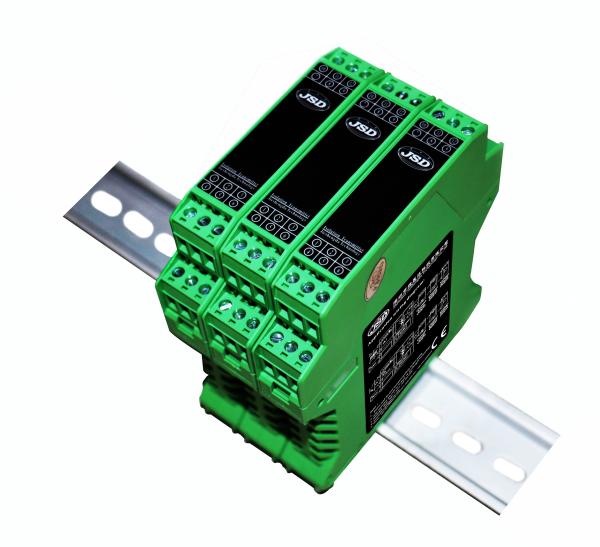

rail type: RAIL MOUNTING

SIZE:115x100x12.5mm

4-20mA to frequency pulse signal isolation transmitter (I/F V/F converter)4-20mA/0-10V to 0-5KHZ/0-10KHZ I/F converter
