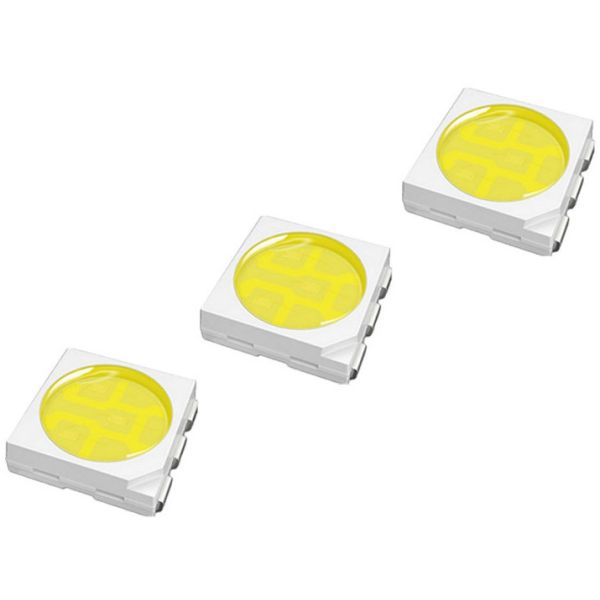

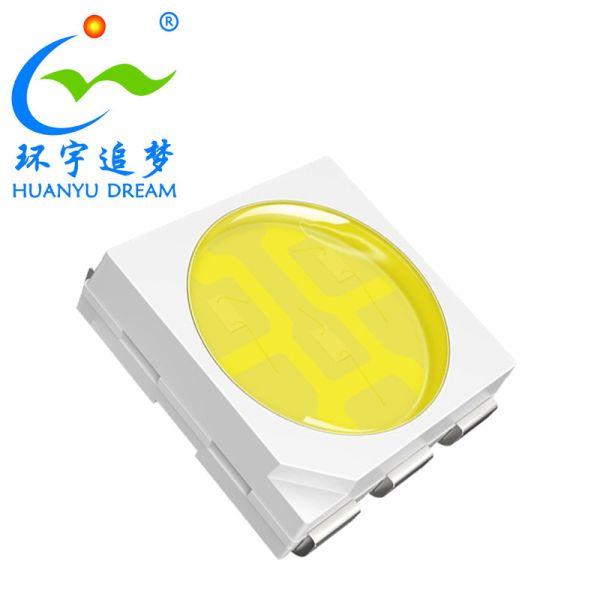

White Yellow 5050 SMD LED Chip 3V 60Ma CCT 3000K-7000K 55-80Lm Cri 80 Warm Cool
White Yellow 5050 SMD LED Chip 3V 60Ma CCT 3000K-7000K 55-80Lm Cri 80 Warm Cool
White Yellow 5050 SMD LED Chip 3V 60Ma CCT 3000K-7000K 55-80Lm Cri 80 Warm Cool
White Yellow 5050 SMD LED Chip 3V 60Ma CCT 3000K-7000K 55-80Lm Cri 80 Warm Cool
White Yellow 5050 SMD LED Chip 3V 60Ma CCT 3000K-7000K 55-80Lm Cri 80 Warm Cool
White Yellow 5050 SMD LED Chip 3V 60Ma CCT 3000K-7000K 55-80Lm Cri 80 Warm Cool
White Yellow 5050 SMD LED Chip 3V 60Ma CCT 3000K-7000K 55-80Lm Cri 80 Warm Cool
White Yellow 5050 SMD LED Chip 3V 60Ma CCT 3000K-7000K 55-80Lm Cri 80 Warm Cool
Specifications
Brand Name :
HuanYu Dream
Model Number :
HY-5050W
Certification :
RoHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
500Kpcs/Day
Delivery Time :
7-9 Work Days
Packaging Details :
1000 pcs/ reel
Type :
5050 smd led
Power :
0.2W
Current :
60mA
Wire :
Gold Wire Material
Colloid Color :
Yellow
Emission Color :
White
VF :
3.0-3.4 V
Colour Temperature :
2600-7000K
Description

0.2W 5050 Smd Led 3V 60Ma CCT 3000-7000K 55-80Lm Cri 80 Warm Cool White Light

5050 SMD led Features

5.0×5.0mm Top SMD

Colloid Color: Yellow

Emission Color: Warm White

Viewing Angle :120°

White Yellow 5050 SMD LED Chip 3V 60Ma CCT 3000K-7000K 55-80Lm Cri 80 Warm Cool

5050 SMD led Measurement

White Yellow 5050 SMD LED Chip 3V 60Ma CCT 3000K-7000K 55-80Lm Cri 80 Warm Cool

Package (1000PCS/Reel)

White Yellow 5050 SMD LED Chip 3V 60Ma CCT 3000K-7000K 55-80Lm Cri 80 Warm CoolWhite Yellow 5050 SMD LED Chip 3V 60Ma CCT 3000K-7000K 55-80Lm Cri 80 Warm Cool

5050 SMD led Specifications

Absolute Maximum Ratings (TA=25±5ºC)

Item Symbol

Absolute Maximum Rating

Unit
Forward Current IF 60 mA
Pulse Forward Current IFP 90 mA
Reverse Voltage VR 5 V
Power Dissipation PD 300 mW
Operating Temperature Topr -40ºC To +85ºC °C
Storage Temperature Tstg -40ºC To +85ºC °C
Soldering Temperature Tsld

Reflow Soldering: 260ºC

Hand Soldering : 350ºC

for 10sec.

for 3sec.

Initial Electrical/Optical Characteristics (TA=25±5ºC)

Symbol

Item

Units

 Min. Typ. Max.

Test Conditions
VF

Forward Voltage

 V 3.0 3.4 IF=60mA
IR

Reverse Current

 uA - - 10 VR=5V
ø

Luminous flux

 lm 14 16 IF=60mA
TC

Colour Temperature

 k 2400 2600 IF=60mA
RA

Color Rendering Index

 Ra 70 75 IF=60mA

Application

White Yellow 5050 SMD LED Chip 3V 60Ma CCT 3000K-7000K 55-80Lm Cri 80 Warm Cool

White Yellow 5050 SMD LED Chip 3V 60Ma CCT 3000K-7000K 55-80Lm Cri 80 Warm Cool

White Yellow 5050 SMD LED Chip 3V 60Ma CCT 3000K-7000K 55-80Lm Cri 80 Warm Cool

FAQ:

Q1: Can you accept the sample order?

Yes, we can. we welcome sample order to test and check quality.

Q2: Could I put my logo on it?

Of course. The logo can be made according to your requirements once you reached our MOQ.

Q3: What's your packaging?

We have a color box and a carton. Welcome to customize if you need it.

Q4: What's your lead time?

3-7 days for the sample orders in the stock. 20-30 days for mass production.

Q5: What's your quotation terms?

EXW.

Q6: How about your quality?

Our products are RoHS listed.

Q7: What's your warranty?

With over 10 years of experience in manufacturing the LED equipment, we're fully confident about our quality.

All of the products will be tested two times before shipment. and have 3 years of warranty.

Q8: Why choose us?

1) We provide factory-direct prices.

2) We have our own R&D team, the products can be customized according to your requirements.

3) We provide superior and timely pre-sales advice and after-sales service.

4) We provide logistic service door to door (China:to your warehouse), much easier to transport.
