304l Din 17457 Welding Thin Stainless Steel Tube 1 1/4 31.75mm OD 122mm Hot Rolled
304l Din 17457 Welding Thin Stainless Steel Tube 1 1/4 31.75mm OD 122mm Hot Rolled
304l Din 17457 Welding Thin Stainless Steel Tube 1 1/4 31.75mm OD 122mm Hot Rolled
304l Din 17457 Welding Thin Stainless Steel Tube 1 1/4 31.75mm OD 122mm Hot Rolled
Specifications
Brand Name :
TISCO POSCO
Model Number :
201/304/304l/316l/2205
Certification :
CE/SGS/ISO
Place of Origin :
china,wuxi
MOQ :
1 ton
Price :
$2600/ton
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3000ton/month
Delivery Time :
7-10days
Packaging Details :
wooden box
name :
ss welded pipe
Steel grade :
300 Series,400 Series,200 Series,304L,316L etc
Type :
Welded,Seamless
Welding line type :
ERW,Seamless,Spiral Welded,EFW,weld/seamless
Standard :
ASTM,JIS,AISI,DIN
Thickness :
1mm-40mm,According To Your Demand
Outer diameter :
6-630mm,6mm-630mm or customized
Length :
3000mm~6000mm
Shape :
Round.square.Rectangle
Surface :
Annealing,BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D
Technique :
Cold Rolled Hot Rolled,ERW,Polished,welded
Finish :
Brush Polish,hairline,160grit,mirror ETC
Description

1.Hot Rolled 304l Stainless Steel Pipe With OD 122mm Used For Construction

. Until now, yuxuan steel has staff of 192 persons, and passed trough the ISO9001: 2000 quality management suystem certification in 2014. With an average of 30, 000tons for all sizes stock, the products have been saled all over the world. Our sales amount has exceeded 1.2 million tons, including 260 million u. S. Dollars of export, which makes yuxuan steel ranked top 5 in tangshan exportation area, and top 30 all over the China among steel exporting companies.

Product stainless steel welded ERW pipe
Specification Section shape: round
Thickness: 0.95~17.75mm
Outer diameter: 10mm-610mm
Standard EN10025, EN10219, EN10210, EN39, BS1387,
ASTM A53, ASTM A500, ASTM A36, API 5L, ISO 65
JIS G3444,DIN 3444, ANSI C80.1, AS 1074,
GB/T 3091 etc
Material Gr.A, Gr.B, Gr.C,
S235, S275, S355,
A36, SS400,
Q195, Q235, Q345,etc.
Pipe End Plain end/ Bevel end;
Threaded on two ends, one end with coupling, one end with plastic cap
Surface Treatment 1. Galvanized
2. PVC,black and color painting
3. Transparent oil,anti-rust oil
4. According to clients requirement
Package OD not less than 273mm: Loose packing,piece by piece.
OD less than 273mm: In hexagonal seaworthy bundles packed by steel strips.
small sizes nested into big sizes.
Min order 10 tons, more quantity price will be lower

2.chemical composition

Chemical Composition of Material
Material


Composition		 201 202 304 316L 430
C ≤0.15 ≤0.15 ≤0.08 ≤0.035 ≤0.12
Si ≤1.00 ≤1.00 ≤1.00 ≤1.00 ≤1.00
Mn 5.5-7.5 7.5-10 ≤2.00 ≤2.00 ≤1.00
P ≤0.06 ≤0.06 ≤0.045 ≤0.045 ≤0.040
S ≤0.03 ≤0.03 ≤0.030 ≤0.030 ≤0.030
Cr 13-15 14-17 18-20 16-18 16-18
Ni 0.7-1.1 3.5-4.5 8-10.5 10-14
Mo 2.0-3.0

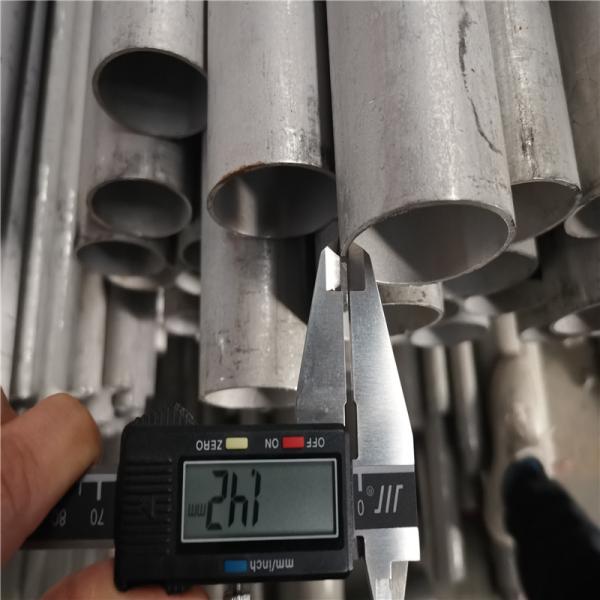

3.product show

304l Din 17457 Welding Thin Stainless Steel Tube 1 1/4 31.75mm OD 122mm Hot Rolled

304l Din 17457 Welding Thin Stainless Steel Tube 1 1/4 31.75mm OD 122mm Hot Rolled

304l Din 17457 Welding Thin Stainless Steel Tube 1 1/4 31.75mm OD 122mm Hot Rolled

4.mechanical property

Mechanical Property Material Item 201 202 304 316
Tensile Strength ≥535 ≥520 ≥520 ≥520
Yield Strength ≥245 ≥205 ≥205 ≥205
Extension ≥30% ≥30% ≥35% ≥35%
Hardness (HV) <105 <100 <90 <90

5.FAQ
Q: What kind of work does your company do?
A: Our company is a professional manufacturer.We mainly produces stainless steel sheet, stainless steel coil, stainless steel pipe, stainless steel bars and so on.
Q: How can you assure your quality?
1.We can provide you certificate of quality accordingly.
2.We are willing to accept the third party inspection, such as SGS,BV,CE and so on.
Q: Can you accept customization?
Yes. If you have special requirements on products or packages, we can do customization for you.
Q: Can you accept trail orders?
Gemerally our MOQ is 1 ton. But if you want to place a trail order as the beginning of our cooperation, we can accept smaller quantity at frist. Surely we will have further and longer partnership after the beginning.
Q: Can you provide samples for checking before order?
A: Free samples can be provided as you required. You need only to bear the freight cost.
