57.15mm 2.25 2.5 Inch Rectangular Stainless Steel Welded Pipe Sch 40 Hot Rolled 201 316
57.15mm 2.25 2.5 Inch Rectangular Stainless Steel Welded Pipe Sch 40 Hot Rolled 201 316
57.15mm 2.25 2.5 Inch Rectangular Stainless Steel Welded Pipe Sch 40 Hot Rolled 201 316
57.15mm 2.25 2.5 Inch Rectangular Stainless Steel Welded Pipe Sch 40 Hot Rolled 201 316
Specifications
Brand Name :
TISCO POSCO
Model Number :
201/304/304l/316l/2205
Certification :
CE/SGS/ISO
Place of Origin :
china,wuxi
MOQ :
1 ton
Price :
$2600/ton
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3000ton/month
Delivery Time :
7-10days
Packaging Details :
wooden box
name :
4 stainless steel pipe
Steel grade :
300 Series,400 Series,200 Series,304L,316L etc
Type :
Welded,Seamless
Welding line type :
ERW,Seamless,Spiral Welded,EFW,weld/seamless
Standard :
ASTM,JIS,AISI,DIN
Thickness :
1mm-40mm,According To Your Demand
Outer diameter :
6-630mm,6mm-630mm or customized
Length :
3000mm~6000mm
Shape :
Round.square.Rectangle
Surface :
Annealing,BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D
Technique :
Cold Rolled Hot Rolled,ERW,Polished,welded
Finish :
Brush Polish,hairline,160grit,mirror ETC
Description

1.Hot Rolled Welded 201 Stainless Steel Pipe With Ce Certificate

In addition, we have obtained ISO SGS certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Iran, Saudi Arabia, Yemen, UAE, Syria, Kuwait, Germany, Lithuania, Azerbaijan, Russia, Indonesia, Vietnam, Egypt, Malaysia, Philippines. Bolivia, Colombia, Ecuador, Guyana

Name Stainless Steel Pipe
Standard ASTM, GB, JIS, DIN, EN, AISI
Material Grade TP304 TP304L TP316 TP316L TP347 TP347H TP321 TP321H TP310 TP310S
TP410 TP410S TP403
S31803/S32205 S32750 S32760
Outer Diameter Seamless Pipe: 4mm-914.4mm
Welded Pipe: single slit(Φ8mm-Φ630mm); girth(Φ630mm-Φ3000mm),
Thickness Seamless Pipe: 0.6mm - 60mm
Welded Pipe: single slit(0.5mm-25mm);girth(3mm-45mm)
Length 5.8-6.1 m or as customers' request
Tolerance Acording to the Standard.
Surface 180G, 320G, 400G Satin / Hairline
400G, 500G, 600G or 800G Mirror finish
Application Petrochemical industry, chemical fertilizer industry, oil refining industry, oil and gas industry, light industry and food industry, pulp and paper industry, energy and environmental industries.
Test UT, ET, HT, RT,ect, and others according to the standard,or as the requests of the customers

2.chemical composition

Chemical Composition of Material
Material


Composition		 201 202 304 316L 430
C ≤0.15 ≤0.15 ≤0.08 ≤0.035 ≤0.12
Si ≤1.00 ≤1.00 ≤1.00 ≤1.00 ≤1.00
Mn 5.5-7.5 7.5-10 ≤2.00 ≤2.00 ≤1.00
P ≤0.06 ≤0.06 ≤0.045 ≤0.045 ≤0.040
S ≤0.03 ≤0.03 ≤0.030 ≤0.030 ≤0.030
Cr 13-15 14-17 18-20 16-18 16-18
Ni 0.7-1.1 3.5-4.5 8-10.5 10-14
Mo 2.0-3.0

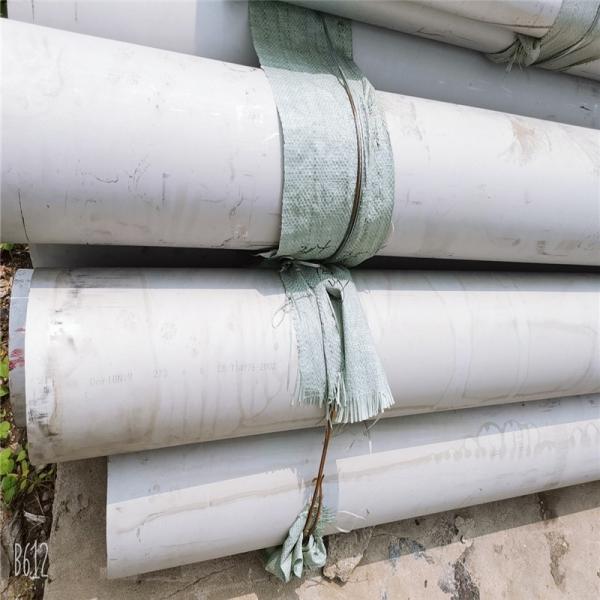

3.product show

57.15mm 2.25 2.5 Inch Rectangular Stainless Steel Welded Pipe Sch 40 Hot Rolled 201 316

57.15mm 2.25 2.5 Inch Rectangular Stainless Steel Welded Pipe Sch 40 Hot Rolled 201 316

57.15mm 2.25 2.5 Inch Rectangular Stainless Steel Welded Pipe Sch 40 Hot Rolled 201 316

4.mechanical property

Mechanical Property Material Item 201 202 304 316
Tensile Strength ≥535 ≥520 ≥520 ≥520
Yield Strength ≥245 ≥205 ≥205 ≥205
Extension ≥30% ≥30% ≥35% ≥35%
Hardness (HV) <105 <100 <90 <90

5.FAQ
Q: What kind of work does your company do?
A: Our company is a professional manufacturer.We mainly produces stainless steel sheet, stainless steel coil, stainless steel pipe, stainless steel bars and so on.
Q: How can you assure your quality?
1.We can provide you certificate of quality accordingly.
2.We are willing to accept the third party inspection, such as SGS,BV,CE and so on.
Q: Can you accept customization?
Yes. If you have special requirements on products or packages, we can do customization for you.
Q: Can you accept trail orders?
Gemerally our MOQ is 1 ton. But if you want to place a trail order as the beginning of our cooperation, we can accept smaller quantity at frist. Surely we will have further and longer partnership after the beginning.
Q: Can you provide samples for checking before order?
A: Free samples can be provided as you required. You need only to bear the freight cost.
