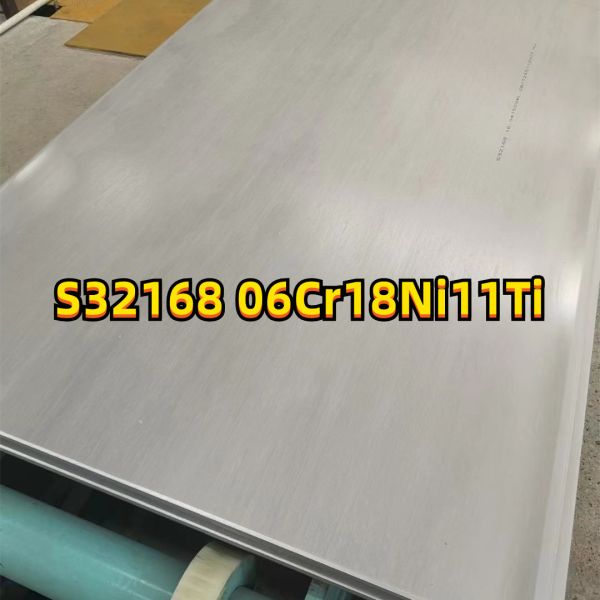

GB24511 S32168 SUS321 DIN 1.4541 Stainless Steel Plate 3-16mm 2000*6000mm Used For Boiler
GB24511 S32168 SUS321 DIN 1.4541 Stainless Steel Plate 3-16mm 2000*6000mm Used For Boiler
GB24511 S32168 SUS321 DIN 1.4541 Stainless Steel Plate 3-16mm 2000*6000mm Used For Boiler
GB24511 S32168 SUS321 DIN 1.4541 Stainless Steel Plate 3-16mm 2000*6000mm Used For Boiler
GB24511 S32168 SUS321 DIN 1.4541 Stainless Steel Plate 3-16mm 2000*6000mm Used For Boiler
GB24511 S32168 SUS321 DIN 1.4541 Stainless Steel Plate 3-16mm 2000*6000mm Used For Boiler
Specifications
Brand Name :
POSCO
Model Number :
321 S32168
Certification :
ISO, CE, BV SGS MTC
Place of Origin :
China
MOQ :
1 t
Price :
2.5 USD/KG
Payment Terms :
T/T, L/C
Supply Ability :
500 t/M
Delivery Time :
15 days
Packaging Details :
Seaworthy Package
Price term :
CIF CFR FOB EX-WORK
Color :
Natural Color
Package :
Waterproof Paper + Steel Pallet
Surface :
BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D
Technique :
Cold Rolled&Hot Rolled
Grade :
300 Series
Width :
1000-2000mm
Type :
Plate
Standard :
AISI,ASTM,JIS,DIN
Thickness :
0.3-120mm
Description

GB24511 S32168 SUS321 DIN 1.4541 Stainless Steel Plate 3-16mm 2000*6000mm Used For Boiler

Type 321 (UNS S32100)

Description

Type 321 is a titanium stabilized chromium nickel austenitic stainless steel with corrosion resistance similar to 304/304L. This grade is typically used in the 800-1500˚F temperature range where it is stabilized against chromium carbide precipitation by the addition of titanium, which results in the precipitation of titanium carbides. Type 321 has excellent intergranular corrosion resistance after exposure to this temperature range, and this grade resists oxidation up to 1500˚F and has higher creep and stress rupture properties than 304/304L. It also possesses good low temperature toughness and is non-magnetic in the annealed condition.

Chemical Composition
Chemical Composition (wt%) limits as specified in ASTM A240 and ASME SA240*.

Element 321
Carbon 0.08
Chromium 17.0-19.0
Nickel 9.0-12.0
Manganese 2.00
Silicon 0.75
Nitrogen 0.10
Phosphorus 0.045
Sulfur 0.030
Titanium 5(C+N) min / 0.70 max
* Maximum, unless range is indicated

Mechanical Properties
Mechanical property requirements for annealed product as specified in ASTM A240 and ASME SA240.

Property 321
Yield Strength, min. (ksi) 30
Tensile Strength, min. (ksi) 75
Elongation, min. (%) 40
Hardness, max. (Rb) 95

Physical Properties
Physical properties for Type 321 stainless steel

Property 321 Data
Density, lb/in3 0.286
Modulus of Elasticity, psi 28.0 x 106
Coefficient of Thermal Expansion, 68-212˚F, /˚F 9.2 x 10-6
Thermal Conductivity, Btu/ft hr ˚F 9.3
Specific Heat, Btu/lb ˚F 0.12
Electrical Resistivity, Microohm-in 28.4

Product application
1, structural steel: construction and engineering structural steel referred to as construction steel, used in buildings, Bridges, ships, boilers or other projects to make metal structural parts of steel.
2, tool steel: generally used in the manufacture of various tools, such as carbon tool steel, alloy tool steel, high-speed tool steel, etc.
3, special steel: steel with special properties, such as rust acid-resistant steel, heat resistant steel, magnetic steel, etc.
4, professional steel: refers to the industrial sector of professional use of steel, such as automotive steel, agricultural machinery steel, aviation steel, electrical steel, etc.

Surface Finish Definition Application
2B Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. Medical equipment, Food industry, Construction material, Kitchen utensils.
BA Those processed with bright heat treatment after cold rolling. Kitchen utensils, Electric equipment, Building construction.
NO.3 Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. Kitchen utensils, Building construction.
NO.4 Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. Kitchen utensils, Building construction, Medical equipment.
HL Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. Building construction
NO.1 The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. Chemical tank, pipe.

GB24511 S32168 SUS321 DIN 1.4541 Stainless Steel Plate 3-16mm 2000*6000mm Used For Boiler

GB24511 S32168 SUS321 DIN 1.4541 Stainless Steel Plate 3-16mm 2000*6000mm Used For BoilerGB24511 S32168 SUS321 DIN 1.4541 Stainless Steel Plate 3-16mm 2000*6000mm Used For BoilerGB24511 S32168 SUS321 DIN 1.4541 Stainless Steel Plate 3-16mm 2000*6000mm Used For Boiler

GB24511 S32168 SUS321 DIN 1.4541 Stainless Steel Plate 3-16mm 2000*6000mm Used For Boiler
