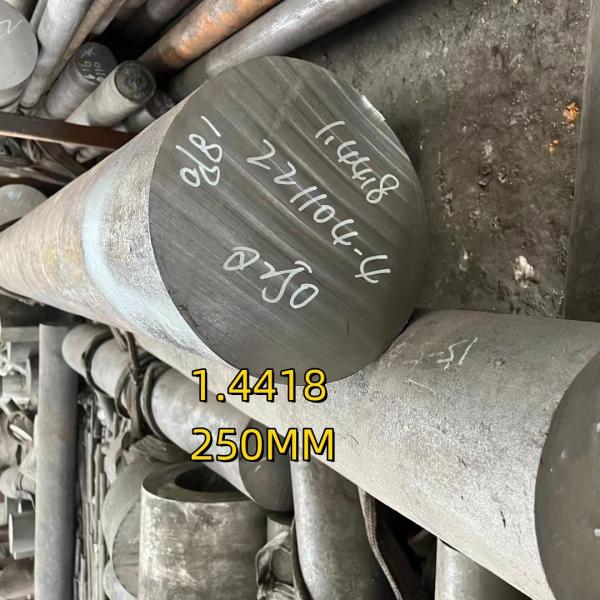

EN 10088-2-2005 1.4418 X4CrNiMo16-5-1 Martensitic Stainless Steel Round Bar OD 250mm
EN 10088-2-2005 1.4418 X4CrNiMo16-5-1 Martensitic Stainless Steel Round Bar OD 250mm
EN 10088-2-2005 1.4418 X4CrNiMo16-5-1 Martensitic Stainless Steel Round Bar OD 250mm
EN 10088-2-2005 1.4418 X4CrNiMo16-5-1 Martensitic Stainless Steel Round Bar OD 250mm
EN 10088-2-2005 1.4418 X4CrNiMo16-5-1 Martensitic Stainless Steel Round Bar OD 250mm
EN 10088-2-2005 1.4418 X4CrNiMo16-5-1 Martensitic Stainless Steel Round Bar OD 250mm
Specifications
Brand Name :
TSING SHAN
Model Number :
1.4418 X4CrNiMo16-5-1
Certification :
ISO MTC SGS
Place of Origin :
China
MOQ :
50KG
Price :
3.15 USD/KG
Payment Terms :
L/C, Western Union, T/T
Supply Ability :
80000KGS
Delivery Time :
7 Days
Packaging Details :
Wooden Box
Type :
Round
Application :
Industry,Mechineal
Standard :
DIN,ASTM,AISI,JIS,EN
Shape :
Round
Dimensions :
5.5mm-500mm
Surface :
bright,Polished,black
Technique :
Cold drawn&hot rolled
Packing :
Standard Seaworthy Package
Price term :
CIF CFR FOB Ex-Work
Name :
1.4418 X4CrNiMo16-5-1 Stainless Steel Round Bar
Description

EN 10088-2-2005 1.4418 X4CrNiMo16-5-1 Martensitic Stainless Steel Round Bar OD 250mm

Grade : X4CrNiMo16-5-1
Number: 1.4418
Classification: Martensitic stainless steel
Density: 7.7 g/cm ³
Standard:
EN 10088-2: 2005 Stainless steels. Technical delivery conditions for sheet/plate and strip of corrosion resisting steels for general purposes
EN 10088-3: 2005 Stainless steels. Technical delivery conditions for semi-finished products, bars, rods, wire, sections and bright products of corrosion resisting steels for general purposes
EN 10028-7: 2007 Flat products made of steels for pressure purposes. Stainless steels
EN 10272: 2007 Stainless steel bars for pressure purposes
EN 10250-4: 2000 Open steel die forgings for general engineering purposes. Stainless steels
EN 10088-1: 2005 Stainless steels. List of stainless steels
EN 10088-5: 2009 Stainless steels. Technical delivery conditions for bars, rods, wire, sections and bright products of corrosion resisting steels for construction purposes
EN 10088-4: 2009 Stainless steels. Technical delivery conditions for sheet/plate and strip of corrosion resisting steels for construction purposes
Equivalent grades: 1.4418



Chemical composition % of steel X4CrNiMo16-5-1 (1.4418): EN 10088-2-2005
Tighter carbon ranges may be agreed at the time of enquery and order
Particular ranges of sulphur content may provide improvement of particular properties. For machinability a controlled sulphur content of 0.015 % to 0.030% is recommended and permitted. For weldability, a controlled sulphur content of 0.008 % to 0.030 % is recommended and permitted. For polishability, a controlled sulphur content of 0.015 % max is recommended.
Elements not listed in this table shall not be intentionally added to the steel without the agreement of the purchaser except for finishing the cast.
C Si Mn Ni P S Cr Mo N
max 0.06 max 0.7 max 1.5 4 - 6 max 0.04 max 0.015 15 - 17 0.8 - 1.5 max 0.02


Mechanical properties of steel X4CrNiMo16-5-1 (1.4418)
Rm - Tensile strength (MPa) (+QT) 760-1100
Rm - Tensile strength (MPa) (+A) 1100
Rp0.2 0.2% proof strength (MPa) (+QT) 550-700
KV - Impact energy (J) (+QT) +20°
55-90		 -20°
40
A - Min. elongation at fracture (%) longitud., (+QT) 16
A - Min. elongation at fracture (%) transverse, (+QT) 14
Brinell hardness (HB): (+A) 320


Equivalent grades of steel X4CrNiMo16-5-1 (1.4418)
Warning! Only for reference
EU
EN		 France
AFNOR		 Sweden
SS
X4CrNiMo16-5-1
Z6CND16-05-01
2387
EN 10088-2-2005 1.4418 X4CrNiMo16-5-1 Martensitic Stainless Steel Round Bar OD 250mmEN 10088-2-2005 1.4418 X4CrNiMo16-5-1 Martensitic Stainless Steel Round Bar OD 250mmEN 10088-2-2005 1.4418 X4CrNiMo16-5-1 Martensitic Stainless Steel Round Bar OD 250mm
