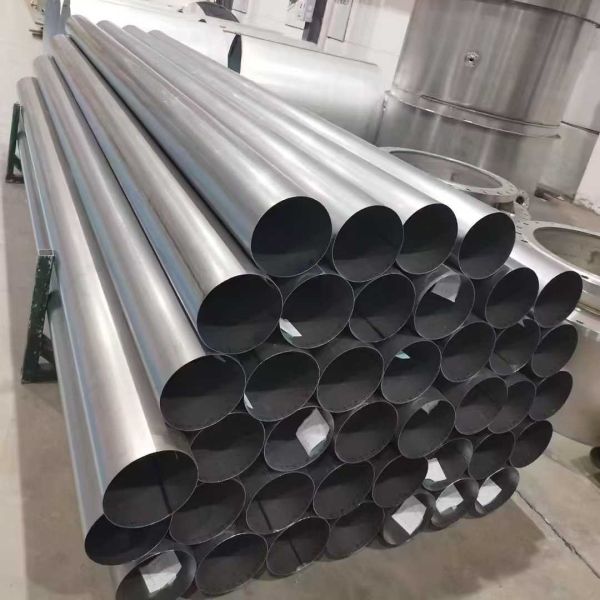

ASTM A312 317L Stainless Steel Welded Pipe SS317L Pipe Stainless Steel S31703 Round Tube
ASTM A312 317L Stainless Steel Welded Pipe SS317L Pipe Stainless Steel S31703 Round Tube
ASTM A312 317L Stainless Steel Welded Pipe SS317L Pipe Stainless Steel S31703 Round Tube
ASTM A312 317L Stainless Steel Welded Pipe SS317L Pipe Stainless Steel S31703 Round Tube
ASTM A312 317L Stainless Steel Welded Pipe SS317L Pipe Stainless Steel S31703 Round Tube
ASTM A312 317L Stainless Steel Welded Pipe SS317L Pipe Stainless Steel S31703 Round Tube
Specifications
Brand Name :
POSCO TISCO ZPSS TSING SHAN
Model Number :
317L
Certification :
ASTM,AISI,SUS,JIS,DIN,EN,GB
Place of Origin :
China
MOQ :
1 t
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
500 t/M
Delivery Time :
15 days
Packaging Details :
Seaworthy Package
Application :
Construction, Decoration, Industrial
Grade :
300 Series 317L
Standard :
ASTM, AISI, JIS, DIN
Thickness :
1-20.0mm
Keywords :
Stainless steel pipe/tubing
Delivery Condition :
Soft / Hard
End Treatment :
Threaded, Beveled, Plain, Screwed, Etc.
Hs Code :
722840000
Packing :
Ply- Wooden Case
Steel Grade :
300 Series,200 Series,400 Series
Length Of Pipe :
1-12meter
Technique :
ERW
Section Shape :
Round
Connection :
Butt weld
Specification :
2B, BA, Mirror, 4K, 8K
Description

ASTM A312 317L Stainless Steel Welded Pipe SS317L Pipe Stainless Steel S31703 Round Tube

Alloy 317 and 317L stainless steel is a low-carbon, corrosion resistant steel used to handle sulfur, pulp liquor, acid dyestuffs, acetylating and nitrating mixtures, bleaching solutions, severe coal and oil smoke, and many chemical compounds. 317 & 317L Stainless steel pipe, flanges and fittings are typically found in:

  • Paper and pulp handling equipment
  • Textile equipment
  • Food-processing equipment

Applications:

Construction, decoration.
Normal Industrial purpose, Petroleum, chemical industry.
Electrical appliances, automotive, aerospace.
Sanitary grade for food industry or medical application.


Product nameStainless Steel Pipes Seamless/welded
Steel Grade(TP)201, 304, 304L, 316, 316L,317L,321,310S, 374, 904L(welded), etc.
StandardASTM A213/A312/A269, DIN17456/17458/17459, etc
Forming technicsSeamless (Hot rolling/Cold rolling), Welding(ERW)
Outer diameter8mm~426mm
Wall thicknessSch5s~Sch160s
Length of pipe5.8/5.9 meters (suitable for 20ft container loading), 6 meters, by random or customerised.
PackingBundling, Seaworthy material wrapping
ShipmentSeaworthy packing pipes being shiping by 20ft/40ft container.
Loading portShanghai Port, Tianjin port, Guangzhou port.
Supplying capacity100tons per month
Payment termsT/T, L/C at sight

Chemical Properties of ASME SA312 TP 317/ 317L Pipes

GradeCMnSiPSCrMoNiN
317min.-----18.0-11.0-
max.0.82.01.000.0400.0320.014.0-
317Lmin.-----18.03.0011.0-
max.0.032.00.750.0400.0320.04.0015.0-

Mechanical Characteristics of 317/ 317L SS Seamless Pipe

GradeTensile Strength (MPa) minYield Strength 0.2% Proof (MPa) minElongation (% in 50mm) minHardness
Rockwell B (HR B) maxBrinell (HB) max
3175152053595217
317L5152053595217

Equivalent material of A312 TP 317/ 317L Welded Pipes

GradeUNS NoOld BritishEuronormSwedish SSJapanese JIS
BSEnNoName
317S31700--1.4449---
317LS31703--1.4438---


ASTM A312 317L Stainless Steel Welded Pipe SS317L Pipe Stainless Steel S31703 Round TubeASTM A312 317L Stainless Steel Welded Pipe SS317L Pipe Stainless Steel S31703 Round TubeASTM A312 317L Stainless Steel Welded Pipe SS317L Pipe Stainless Steel S31703 Round Tube

FAQ

Q1: How can we get the sample?
A1: Free samples are available for your checking and testing.But you need to pay for the frieght cost.
Q2: Can you provide Mill Test Certificate?
A2: Yes! The Mill Test Certificate will be issued with the product.
Q3:Packing details?
A3:Packaged 25 Tons per 20 GP wooden case container.
20ft GP: 5898mm(Length)x2352mm(Width)x2393mm(High)
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
40ft HC: 12032mm(Lengh)x2352mm(Width)x2698mm(High)
Q4:What is your terms of payment?
A4: 100% T/T advance.
30% T/T and balance against copy of documents.
30% T/T advance, balance L/C at sight.
Q5:Can we visit your factory?
A5: Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.
