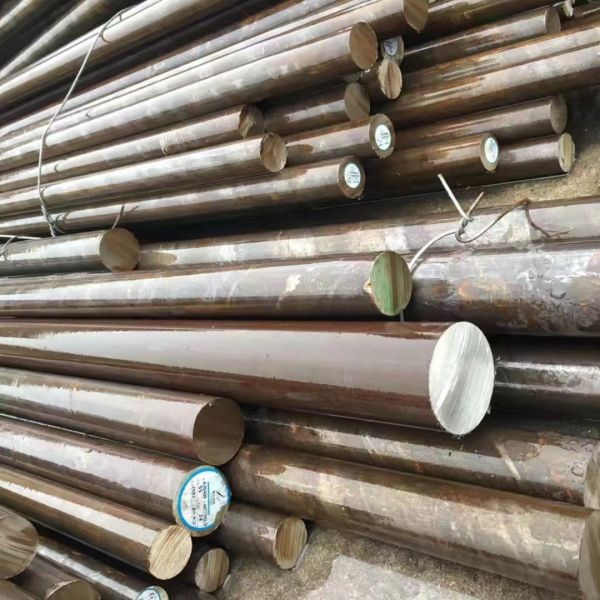

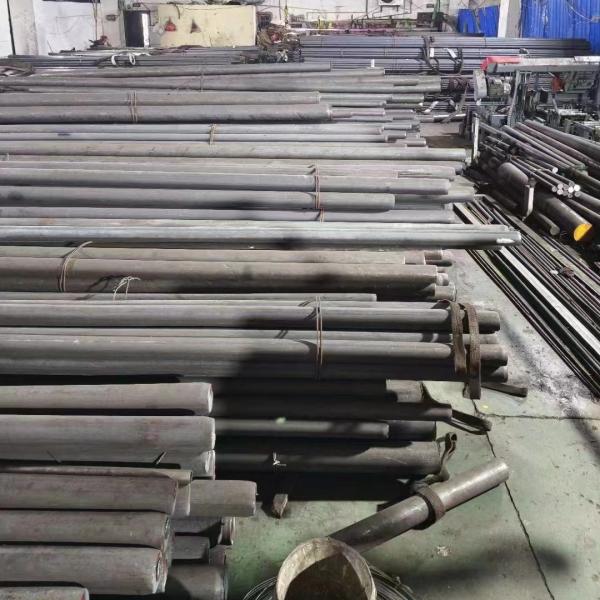

Stainless Steel ASTM A-479 316LN Rod Size 100MM Diameter Length 6000MM Long AISI 316L Round Bar
Stainless Steel ASTM A-479 316LN Rod Size 100MM Diameter Length 6000MM Long AISI 316L Round Bar
Stainless Steel ASTM A-479 316LN Rod Size 100MM Diameter Length 6000MM Long AISI 316L Round Bar
Stainless Steel ASTM A-479 316LN Rod Size 100MM Diameter Length 6000MM Long AISI 316L Round Bar
Stainless Steel ASTM A-479 316LN Rod Size 100MM Diameter Length 6000MM Long AISI 316L Round Bar
Stainless Steel ASTM A-479 316LN Rod Size 100MM Diameter Length 6000MM Long AISI 316L Round Bar
Specifications
Brand Name :
TSINGSHAN
Model Number :
316LN 1.4922
Certification :
ISO MTC
Place of Origin :
China
MOQ :
100KGS
Price :
USD4.45/KG
Payment Terms :
L/C, T/T
Supply Ability :
50000KGS
Delivery Time :
7 Days
Packaging Details :
Wooden Box
Section Shape :
Round
Packaging Material :
Glass Metal Plastic
Heat Treatment Condition :
Annealed,Quenched and tempered etc.
Processing Methods :
Cold working,Machined etc.
Magnetic Properties :
Non-magnetic
Hs Code :
7222300000
Dimentions :
1mm-2000mm
Density :
7.98( G/cm3)
Trade Term :
FOB,CIF,CFR,EXW,etc.
Standard :
ASTM A276
Origin :
Wuxi City, China
Type :
Round,Flat,Alloy Steel Bar,Square,Bar
Keyword :
Round Bar
Technic :
cold rolled/hot rolled
Description

Stainless Steel ASTM A-479 316LN Rod Size: 100MM Diameter Length: 6000MM Long AISI 316L Round Bar

Product Name
 Custom High Quality 303 316ln 316n 316lhn 316L Stainless Steel Bar Bright
Shape
Round bar,Angle bar,Channel bar,Square bar,Flat bar,I/H bar,Hexagonal bar and profiles
Outer
Diameter (OD)
Peeling Bar: 16~180mm
Cold Drawn Bar: 4.76~120mm (All sizes can be customized)
Forged Bar: 180~400mm
Technique
Hot Rolled,Cold Rolled,Cold Drawn,Forged
Material
201, 202, 301, 302, 304, 304L, 310S, 316, 316L, 321, 430, 430A, 309S, 2205, 2507, 2520, 430 , 410, 440, 904Lect, Or Customized
Standard
ASTM, JIS, GB, AISI, DIN, BS,EN
Certifications
ISO 9001 BV SGS
Packing
Industry standard packaging or according to client's requirement
Brand
TISCO,ZPSS,Baosteel,POSCO,LISCO,YUSCO,Ansteel, QPSS,JISCO,HXSCO,
Chengde,Yongjin,Tsingshan,Shouyang,HW
Payment terms
30%T/T in advance, the balance against the B/L copy
Delivery time
Fast delievery in 7 days,up to order quantity

Chemical Composition of 316LN / 1.4429

The typical chemical composition of 316LN Stainless Steel (also known as UNS S31653 or 1.4429) is as follows:

  • Iron (Fe): balance
  • Chromium (Cr): 16-18%
  • Nickel (Ni): 11-14%
  • Molybdenum (Mo): 2-3%
  • Nitrogen (N): 0.1-0.2%
  • Carbon (C): 0.03% max
  • Manganese (Mn): 2% max
  • Silicon (Si): 1% max
  • Phosphorus (P): 0.045% max
  • Sulfur (S): 0.03% max

Adding nitrogen to 316LN steel improves its strength and ability to resist corrosion. The nitrogen content typically ranges between 0.1-0.2%. The carbon content is kept low to prevent carbide precipitation, which can cause corrosion in some environments.

The chemical makeup of 316LN can change based on how it is made and who supplies it. Therefore, it's always a good idea to check with the supplier or consult the material certificate for the exact chemical composition of the 316LN being used in a specific application.

Physical & Mechanical Properties of 316LN / 1.4429

The physical and mechanical properties of 316LN Stainless Steel (also known as UNS S31653 or 1.4429) are as follows:

  • Density: 7.98 g/cm3
  • Melting point: 1399-1454 °C (2550-2650 °F)
  • Specific heat: 0.5 J/g·K
  • Thermal conductivity: 16.3 W/m·K
  • Thermal expansion: 15.9 x 10^-6/K
  • Modulus of elasticity: 193 GPa
  • Tensile strength: 550-700 MPa
  • Yield strength: 240 MPa min
  • Elongation: 40% min
  • Hardness: Rockwell B90
  • Impact toughness: 27 J (20 ft-lb)

Due to the addition of nitrogen, 316LN has a higher yield strength, tensile strength, and hardness than standard 316L. This means that it is able to withstand higher stress levels before deforming or breaking. But, stronger steel is less flexible and more likely to crack in certain situations due to reduced ductility.

316LN also has good resistance to corrosion in high-temperature environments. It is commonly used in oil, gas, marine, and chemical industries for high-temperature and corrosion resistance.

The properties of 316LN can change based on how it's made and who makes it. Therefore, it's always a good idea to check with the supplier or consult the material certificate for the exact properties of the 316LN being used in a specific application.

Stainless Steel ASTM A-479 316LN Rod Size 100MM Diameter Length 6000MM Long AISI 316L Round BarStainless Steel ASTM A-479 316LN Rod Size 100MM Diameter Length 6000MM Long AISI 316L Round Bar

Stainless Steel ASTM A-479 316LN Rod Size 100MM Diameter Length 6000MM Long AISI 316L Round Bar

FAQ

Q1:Can you send samples?
A:Of course, we can provide customers with free samples and express shipping service to all over of the world.

Q2:What product information do I need to provide?
A:Please kindly provide the grade, width, thickness, surface treatment requirement should you have and quantities you need to
purchase.

Q3:It's my first time to import steel products, can you help me with it?
A:Sure,we have agent to arrange the shipment, we will do it together with you.

Q4:What ports of shipment are there?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports according to your
needs.

Q5:What about product prices information?
A:Prices various according to periodic price changes of raw materials.

Q6:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment or based on BL copy or LC at
sight.

Q7.Do you provide custom made Products service?
A: Yes,if you have your own design , we can produce according to your specification and drawing.

Q8:What are the certifications for your products?
A:We have ISO 9001, MTC, third parties' inspections are all available such SGS, BV ect.

Q9:How long does your delivery time take?
A:In general, our delivery time is within 7-15 days, and may be longer if the quantity is extremely large or special circumstances
occur.
