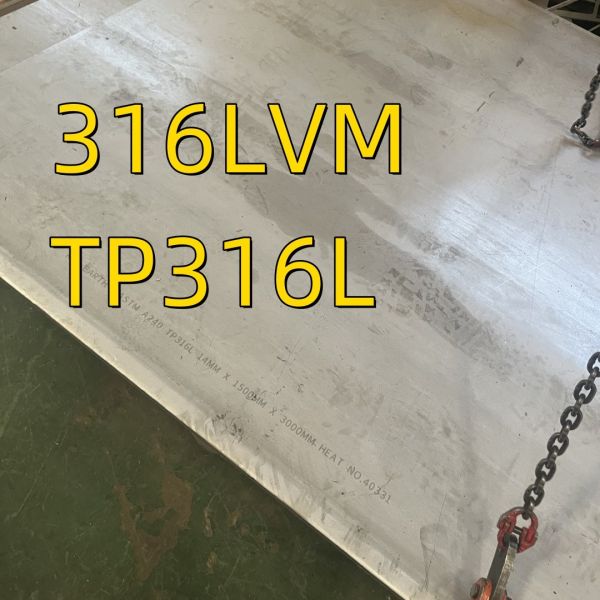

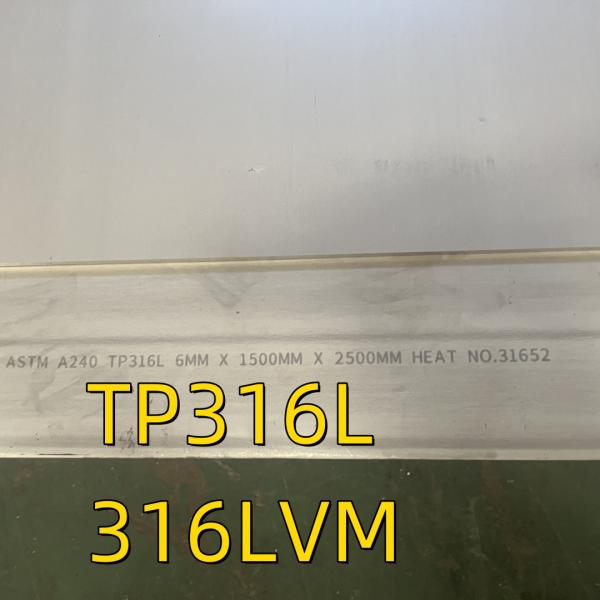

ASTM F138 ASTM F139 UNS S31673 SS 316LVM 1.4441 Stainless Steel Plate
ASTM F138 ASTM F139 UNS S31673 SS 316LVM 1.4441 Stainless Steel Plate
ASTM F138 ASTM F139 UNS S31673 SS 316LVM 1.4441 Stainless Steel Plate
ASTM F138 ASTM F139 UNS S31673 SS 316LVM 1.4441 Stainless Steel Plate
ASTM F138 ASTM F139 UNS S31673 SS 316LVM 1.4441 Stainless Steel Plate
ASTM F138 ASTM F139 UNS S31673 SS 316LVM 1.4441 Stainless Steel Plate
Specifications
Brand Name :
TSINGSHAN
Model Number :
UNS S31673 SS 316LVM 1.4441
Certification :
ISO MTC
Place of Origin :
China
MOQ :
100KGS
Price :
USD12.45/KG
Payment Terms :
L/C, T/T
Supply Ability :
50000KGS
Delivery Time :
7 Days
Packaging Details :
Wooden Box
Payment :
LC TT
Tolerance :
±1%
Mill :
TISCO, ZPSS, ESS
Company Type :
Storage And Trading
Packing :
PVC+waterproof Paper+wooden Case
Grade :
UNS S31673 SS 316LVM 1.4441
Print Technology :
FDM
Sample :
Sample Freely
Standard :
ASTM
Port :
Shanghai, Ningbo, Tianjin
Surface :
Hairline
Corrosion Resistance :
Excellent
Technique :
Cold Rolled Hot Rolled
Type :
Plate
Processing Technology :
hot rolled
Description

ASTM F138 ASTM F139 UNS S31673 SS 316LVM 1.4441 Stainless Steel Plate

Production Description:

1. Steel Grade: Mat.No. 1.4441 AISI 316LVM
2. Product name: Mat.No. 1.4441 AISI 316LVM Stainless Steel Plate
width: 1000-3000mm
Length: 1000-12000mm
4.Heat Treatment: as required
5.Standard: ASTM,GB,JIS,DIN,BS

Steel 316LVM (Mat.No. 1.4441, DIN X2CrNiMo18-15-3, AISI 316LVM)

Designation by Standards

Brand Name Ravne No. Mat. No. DIN EN AISI
316LVM 332 1.4441 X2CrNiMo18-15-3 - 316LVM


Chemical Composition (in weight %)

C Si Mn Cr Mo Ni V W Others
max. 0.03 max. 1.00 max. 2.00 17.75 2.95 14.50 - - -


Description
Implant steel with improved corrosion resistance compared to AISI 316L. Regarded as "Medical Grade", this Stainless Steel 316 is vacuum melted to achieve the extremely high levels of purity and "cleanliness" required for surgical implants. It has excellent resistance in physiological environments, to general and intergranular corrosion, to pitting and crevice corrosion.

Applications
Osteosyntheses, bone crews, bone paltes, marrow-nails. Because of the excellent surface finish, applications also include use in high precision electronics.

Physical properties (avarage values) at ambient temperature
Modulus of elasticity [103x N/mm2]: 200
Density [g/cm3]: 8.0
Thermal conductivity [W/m.K]: 14.0
Electric resistivity [Ohm mm2/m]: 0.65
Specific heat capacity[J/g.K]: 0.485

Coefficient of Linear Thermal Expansion 10-6oC-1

30-100oC
16.5


Soft Annealing
Please ask.

Hardening
Please ask.

Mechanical properties at ambient temperature

Condition: Annealed
Hardness: 160 HB
0.2% proof stress: 190 N/mm2
Tensile strength: 490 N/mm2
Elongation: 45%

Condition: Medium tensile
Hardness: 285 HB
0.2% proof stress: 700 N/mm2
Tensile strength: 900 N/mm2
Elongation: 15%

Condition: High tensile
Hardness: 300 HB
0.2% proof stress: 800 N/mm2
Tensile strength: 1100 N/mm2
Elongation: 12%

Forging
Hot forming temperature: 1100-850oC.

ASTM F138 ASTM F139 UNS S31673 SS 316LVM 1.4441 Stainless Steel PlateASTM F138 ASTM F139 UNS S31673 SS 316LVM 1.4441 Stainless Steel PlateASTM F138 ASTM F139 UNS S31673 SS 316LVM 1.4441 Stainless Steel Plate
