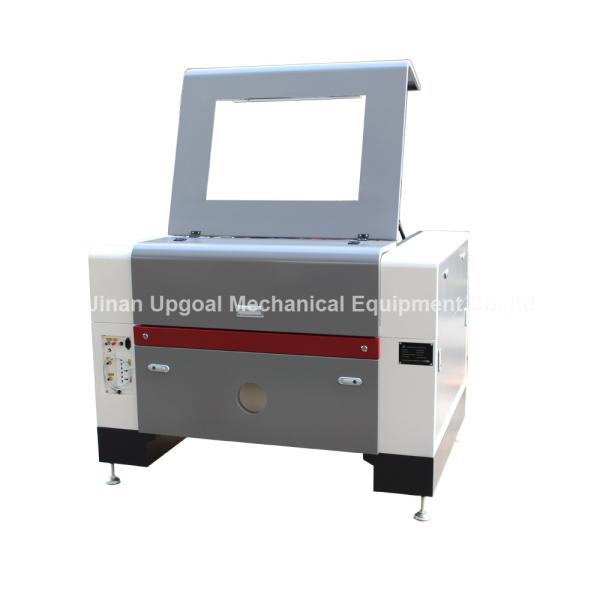

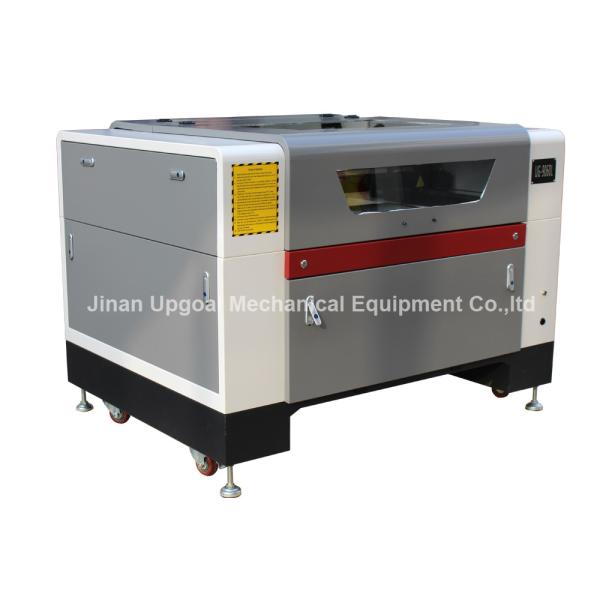

Cartoon Board Co2 Laser Engraving Machine with Rotary Axis UG-9060L

Specifications

Brand Name :

UPGOAL

Model Number :

UG-9060L

Certification :

CE/FDA

Place of Origin :

Jinan City, Shandong Province, China

MOQ :

1 set

Price :

USD 2020-USD 2260 FOB QINGDAO

Payment Terms :

T/T, L/C, Western Union, MoneyGram, D/A, D/P

Supply Ability :

200 sets/month

Delivery Time :

Within 7 working days

Packaging Details :

One plywood case, 1480*1145*1290mm, 320kg

Effective working area :

900*600mm

Laser Type :

Co2 sealed-off laser tube

Laser tube power :

S2 series, Reci, Beijing (Rated power: 90W, max. Power: 100W)

Working table :

Honey comb working table and knife trip, double working table

Driver mode :

3 phases stepper motor and Driver, Yako brand

Guide rail :

Linear square guide rail ( Hiwin,Taiwan)

Transmission :

Belt transmission

ontrol system :

RuiDa RDC6442S

Control software :

RDWorks V8( no need softdog)

Control panel :

DSP offline

Type of cooling :

Industrial chiller CW-5000 cooling

Blow-off system :

Air pump for the laser head Air blower for the machine

Voltage :

AC 220V±10% 50/60Hz, single phase

Rotary axis :

Roller type, no diameter limition

Description

Cartoon Board Co2 Laser Engraving Machine with Rotary Axis UG-9060L

Name: Cartoon Board Co2 Laser Engraving Machine with Rotary Axis UG9060L
Brand: UPGOAL
Price: 2020 USD

Application

Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.

Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc

Materials Can work With: Organic glass, acrylic board (the paulownia, lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials

Features

Laser Head

Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.

Laser Tube

Adopted famous Reci S2 Co2 laser tube, rated power: 90W, peak power: 100W, long time time and stable

Working Table

Honey Comb Table: applicable to various soft materials with good adsorption effect and low reflection ratio.

Knife Strip Table: With oxidation treatment and low reflection ratio Ensured cutting quality

Auto Lifting Table for more thickness materials

Beam Path System

Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.

Beam Path System

Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.

Motion System

Imported High precision, low friction force and stand wear and Hiwin linear square guide rails and blocks with 3M belt ensured stable transmission, lower noise.

Operation System

Advanced USB RuiDa 6442S control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .

With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.

Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.

Rationalized placement of the electronic parts. Optimized heat dissipation effect.

Cooling System

Industrial chiller CW-5000, ensuring the laser tube long time continus working.

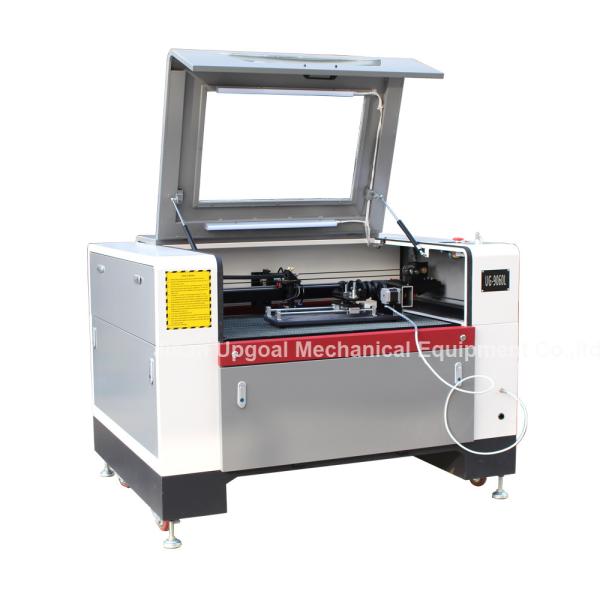

Rotary Axis

Roller type rotary axis, no diameter limitation, suitable for glass engraving.

Technical parameters

Effective working area	900*600mm
Laser Type	Co2 sealed-off laser tube
Laser tube power	Reci S2, rated power 90W, maximum power 100W
Working table	Honey comb and knife strip, double working table
Lifting table	Auto
Driver mode	3 phases stepper motor and Driver, Yako brand
Guide rail	Linear square guide rail ( Hiwin,Taiwan)
Transmission	Belt transmission
Control panel	English
Laser output control	1-100% software setting
Engraving speed	0-60000mm/min
Cutting speed	0-10000mm/min
Control system	RuiDa 6442S
Control software	RDWorksV8
Design software when delivery	CorelDraw
Control panel	DSP offline
Resolution accuracy	< 0.01mm
Location precision	< 0.01mm
Highest scanning accuracy	2500DPI
Type of cooling	Industrial chiller CW-5000 cooling
Water protection system	Yes
Focus	Auto focusing
Blow-off system	Air pump for the laser head Air blower for the machine
Working temperature	0-45 °C
Operating humidity	5-95% (without condensed water)
Supporting picture format	PLT,DST,DXF,BMP, DWG,AI,LAS,etc
Voltage	AC220V +10% 50/60Hz, single phase or AC 110V+10% 50/60Hz, single phase
Certificate	CE/FDA
