Car Block Set Co2 Laser Cutting Machine with Auto Feeding System/Double Heads
Car Block Set Co2 Laser Cutting Machine with Auto Feeding System/Double Heads
Car Block Set Co2 Laser Cutting Machine with Auto Feeding System/Double Heads
Car Block Set Co2 Laser Cutting Machine with Auto Feeding System/Double Heads
Car Block Set Co2 Laser Cutting Machine with Auto Feeding System/Double Heads
Car Block Set Co2 Laser Cutting Machine with Auto Feeding System/Double Heads
Car Block Set Co2 Laser Cutting Machine with Auto Feeding System/Double Heads
Car Block Set Co2 Laser Cutting Machine with Auto Feeding System/Double Heads
Specifications
Brand Name :
UPGOAL
Model Number :
UG-1610L
Certification :
CE/FDA
Place of Origin :
Jinan City, Shandong Province, China
MOQ :
1 set
Price :
USD 240-USD 2600FOB QINGDAO
Payment Terms :
T/T, L/C, Western Union, MoneyGram, D/A, D/P
Supply Ability :
200 sets/month
Delivery Time :
Within 7 working days
Packaging Details :
One plywood case, 2260*1550*1320mm, 550kgs
Effective working area :
1600*1000mm
Laser Type :
Co2 sealed-off laser tube
Laser tube power :
Reci S4, rated power 100W, maximum power 130W
Working table :
SUS 304 stainless steel strip
Driver mode :
3 phases stepper motor and Driver, Yako brand
Guide rail :
Linear square guide rail ( Hiwin,Taiwan)
Transmission :
Belt transmission
ontrol system :
Trocen AWC 708C
Control software :
LaserCAD
Control panel :
DSP offline
Type of cooling :
Industrial chiller CW-5200 cooling
Blow-off system :
Air pump for the laser head Air blower for the machine
Voltage :
AC 220V±10% 50/60Hz, single phase or AC 110V±10% 50/60Hz, single phase
Laser head :
2
Description

Car Block Set Co2 Laser Cutting Machine with Auto Feeding System/Double Heads

Application

A variety of fabrics can be cut into any graphics precisely which can be made into Sofas, tents, umbrellas, clothing, leather, soft cloth (cloth, leather, plush), car interior (seat covers, floor mats, cushion)

Features

Auto material-feeding platform

Caterpillar band type auto material-feeding platform with new type flat flex belts with strong absorption for wool fabric, realizing continous feeding and cutting with with less labor and material.

Auot edge cutting without rough edge, burr.

With Oneline control system, Work can be loaded from the Cloud.

Fabric Presser

Fabric is adsorbed onto the working table ensured material is fed steadily without creases curled edges

Laser Head

Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.

Double laser head, improving the working efficiency.

Working Table

SUS304 stainless steel Strips: With oxidation treatment and low reflection ratio Ensured cutting quality

Beam Path System

Adopting imported focus lens with high lusciousness and mirror with high reflective ensure stable power transference.

Motion System

Imported High precision,low friction force and stand wear and tear linear square guide rails and blocks with 3M belt ensured stable transmission, lower noise

Operation System

Advanced USB port Trocen AWC708WC special auto feeding control system with large inner memory device and Fast rectilinear cutting and Optimized shortest path function, Greatly improved the working efficiency .

With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.

Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the desgins directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.

Rationalized placement of the electronic parts Optimized heat dissipation effect.

Cooling system

Industrial chiller CW-5200

Technical parameters

Effective working area 1600*1000mm
Laser Type Co2 sealed-off laser tube
Laser head number Double
Laser tube power

S4 series, Reci, Beijing

(Rated power: 100W, max. Power: 130W)

2 pcs
Working table SUS304 stainless steel strip auto feeding working table
Driver mode 3 phases stepper motor and Driver, Yako brand
Guide rail Linear square guide rail ( Hiwin,Taiwan)
Transmission Belt transmission
Control panel English
Laser output control 1-100% software setting
Engraving speed 0-60000mm/min
Cutting speed 0-10000mm/min
Control system Trocen AWC708C
Control software LaserCAD
Design software when delivery CorelDraw
Control panel DSP offline
Resolution accuracy < 0.01mm
Location precision < 0.01mm
Highest scanning accuracy 2500DPI
Type of cooling Industrial chiller CW-5200
Water protection system Yes
Blow-off system

Air pump for the laser head

Air blower for the machine
Biggest scanning accuracy 2500DPI
Working temperature 0-45 °C
Operating humidity 5-95% (without condensed water)
Voltage AC 220V 50/60Hz, single phase
Supporting picture format PLT,DST,DXF,BMP, DWG,AI,LAS,etc
Certificate CE/FDA

Reference Parts Photos

Auto feeding working table

Car Block Set Co2 Laser Cutting Machine with Auto Feeding System/Double Heads

Car Block Set Co2 Laser Cutting Machine with Auto Feeding System/Double Heads

Car Block Set Co2 Laser Cutting Machine with Auto Feeding System/Double Heads

Control cabinet

Car Block Set Co2 Laser Cutting Machine with Auto Feeding System/Double Heads

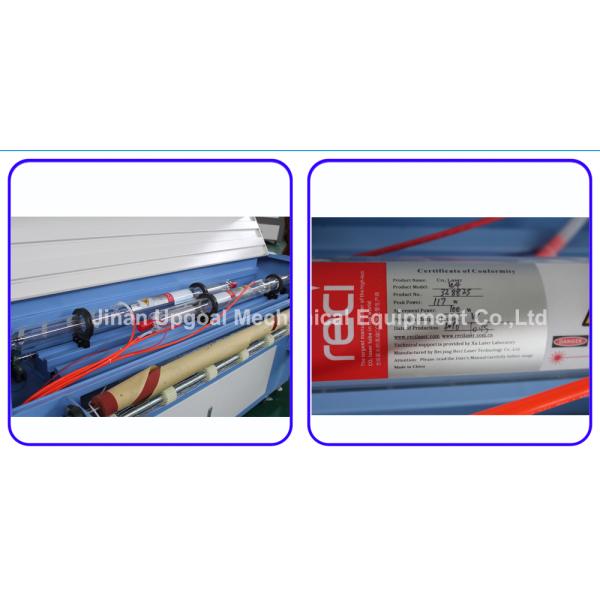

Reci S4 co2 laser tube, 2 pcs

Car Block Set Co2 Laser Cutting Machine with Auto Feeding System/Double Heads

Reference Sample Photos

Car Block Set Co2 Laser Cutting Machine with Auto Feeding System/Double Heads

Car Block Set Co2 Laser Cutting Machine with Auto Feeding System/Double Heads

Car Block Set Co2 Laser Cutting Machine with Auto Feeding System/Double Heads

Car Block Set Co2 Laser Cutting Machine with Auto Feeding System/Double Heads

Car Block Set Co2 Laser Cutting Machine with Auto Feeding System/Double Heads

Reference Working Videos

https://www.youtube.com/watch?v=qQOd1KhDyD4&list=PLZ2SG5kTfvfOCXsQbxHpyInEaDg01cVvL&index=9

https://www.youtube.com/watch?v=uVpQFBKfjaA&t=36s&list=PLZ2SG5kTfvfOCXsQbxHpyInEaDg01cVvL&index=29

For more information, just feel free to contact us!

Jinan Upgoal Mechanical Equipment Co.,Ltd

Supplying & Servicing for CNC Router/Laser Engraving Cutting Machine/Plasma Cutting Machine/Marking Machine/CNC Wood Lathe
