3 Spindles Auto Tool Changer ATC Furniture Wood Relief CNC Machine

Application

Woodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out and simple copper aluminum plastic board, etc

Features

1.Three spindles air cylinder ATC cnc router is multi-spindles asynchronous operating cnc router, with 3 spindles alternatively working, can realize the tools changing quickly, saving the time of manual changing tools, improving the processing efficiency and precision

2. Three spindles can be used arbitrarily, 3 spindle tools for 3 kinds of pattern engraving by turns, has the function of 3 pcs tools auto changing function, Compare the linear or disc ATC cnc router, which cost is much cheaper

3. Welded steel T type structure as a whole with vibration Temper aging treatment ensures no deformation for long time.Cast iron Gantry, the structure is strong and stable.

4. Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity, high precision, smooth and steady running. Adopt imported precision ball screws, tools feeded with more accuracy.

5. Large power 5.5kw China air cooling spindle which is with stable performance and high torque, matched with high-performance Frequency Inverter.

6. Yaskawa Japan 750W servo motor and driver for XYZ-axis, high precision, fast speed and more stable, dual motor Driven Y axis with traveling speed up to more than 25000mm/min.

7. Helical gears Pinion with Racks type transmission for X and Y axis, higher running speed and efficiency, saving cost. Z- axis with precision ball screw, high precision and more durable.

8. Original PCI NcStudio control system, with high precision, low noise, showing the processing path, memory function after break point and power failure.

9. Vacuum adsorption system with 5.5kw air cooling vacuum pump, vacuum table which is divided into 6 zones,can adsorb different size materiel from small to big, saving materials load-unloaded time.
10. Semi-auto lubrication system more convenient for maintenance.

11. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.

12. With the function of Break-point memory ,power failure resuming and automatic home/orgin correction function, effectively ensure long time working precision.

Technical Parameters

Reference Parts Photos

3 pcs 5.5kw air cooling spindles air cylinder auto tool changing

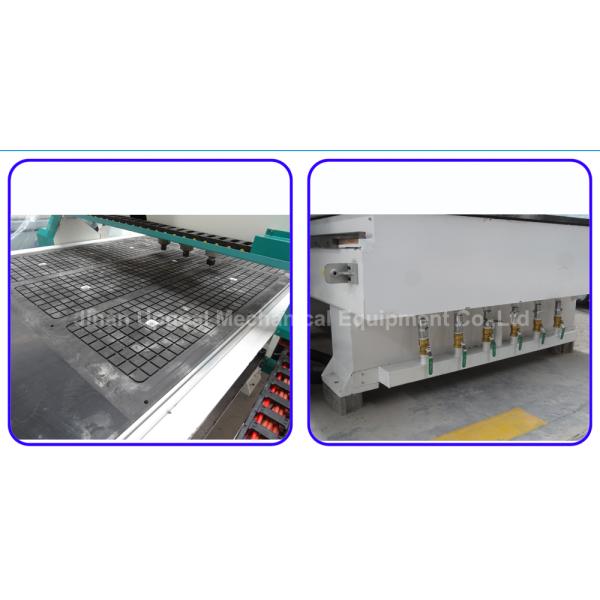

Vacuum table & Air cylinder
