130W 20mm Thickness Acrylic Co2 Laser Cutting Machine with Air Filter

Application

Application industry: Marble engraving, Advertisement, Gift Package, Model.

Application Materials: Acrylic,crystal, marble, wood, paper, cloth, leather, rubber, glass, ceramic tile.

Features

Laser Head

Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.

Laser Tube

Adopted high quality Reci W2 (rated power 90W, maximum power 100W) Co2 laser tube, long working time time and stable

Working Table

Honey Comb Table: applicable to various soft materials with good adsorption effect and low reflection ratio.

Knife Strip Table: With oxidation treatment and low reflection ratio Ensured cutting quality

Auto Lifting Table for more thickness materials

Beam Path System

Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.

Beam Path System

Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.

Motion System

Imported High precision, low friction force and stand wear and Hiwin linear square guide rails and blocks with 3M belt ensured stable transmission, lower noise

Operation System

Advanced USB port RuiDa 6442S control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .

With WIFI connection function, no need to use USB cable, convenient and improving working efficiency.

With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.

Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.

Rationalized placement of the electronic parts. Optimized heat dissipation effect.

Cooling System

Industrial chiller CW-5000, ensuring the laser tube long time continuous working.

Air filtration system

Air filter with 5 layers filtration, during the laser engraving cutting machine using, can filtering a mass of gas & smoke which are harmful to human health when engraving & cutting processing materials. Has the feature of low noise, flexible using, and cover small area.

Technical parameters

Reference Parts Photos

Co2 laser head with infrared positioning and auto focusing

​Reci W6 130W co2 laser tube

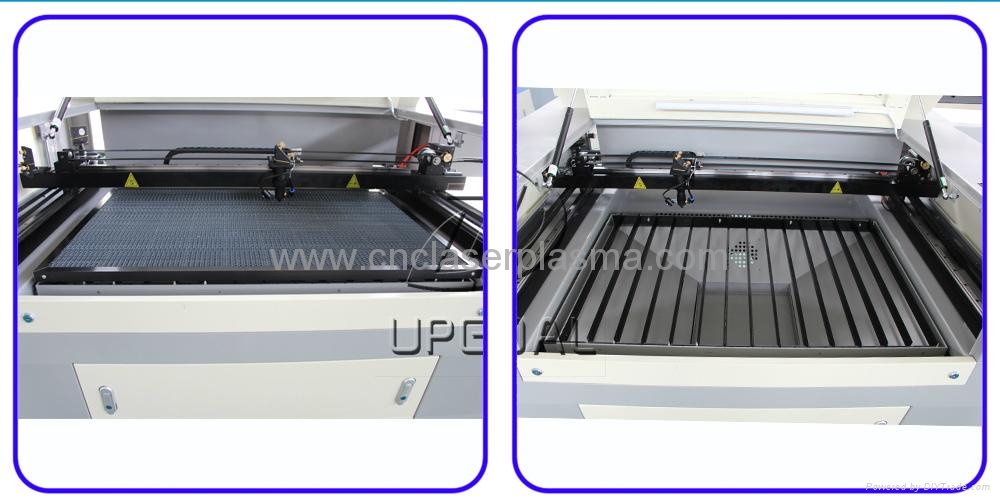

Double working table, honey comb and knife strip

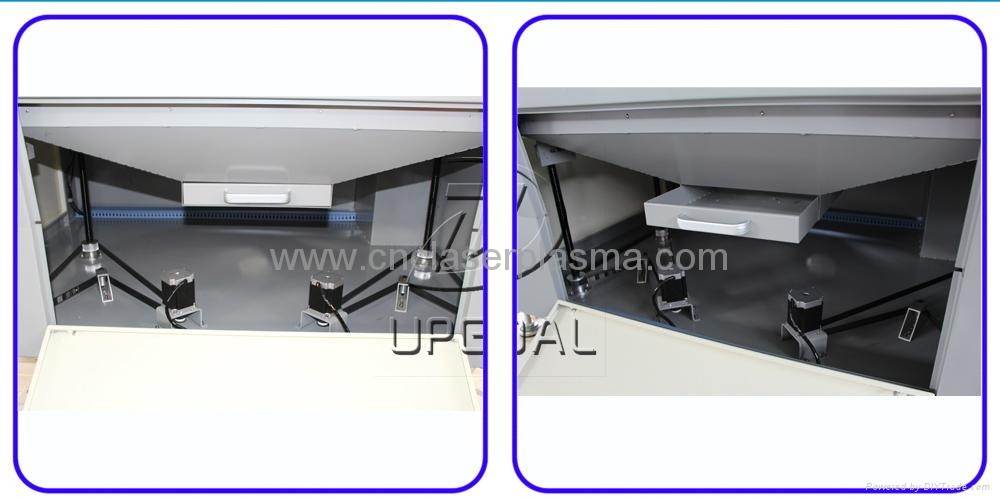

Auto lifting table, up and down 300mm

RuiDa control system

Yako three phases stepper motor and driver

Control cabinet & WIFI router

Switches for machine, E stop, light, air pump, air blower and USB port

Power Socket, Industrial chiller CW-5000 and accessories

Air filter--5 layers filtration

Packing

Reference Sample Photos

Reference Working Videos

https://www.youtube.com/watch?v=RsKkio7Ctp0

For more information, just feel free to contact us!
