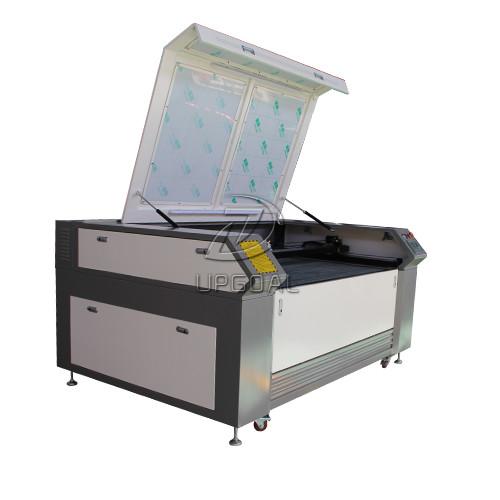

1600*1000mm High Precision Cloth Dotting Cutting Co2 Laser Cutting Machine 90W

Specifications

Brand Name :

UPGOAL

Model Number :

UG-1610L

Certification :

CE/FDA

Place of Origin :

Jinan City, Shandong Province, China

MOQ :

1 set

Price :

USD 2800-USD 3050 FOB QINGDAO

Payment Terms :

T/T, L/C, Western Union, MoneyGram, D/A, D/P

Supply Ability :

200 sets/month

Delivery Time :

Within 7 working days

Packaging Details :

One plywood case, 2270*1640*1290mm, 500KGS

Effective working area :

1600*1000mm

Laser Type :

Co2 sealed-off laser tube

Laser tube power :

Reci W2 90W

Working table :

Honey comb

Driver mode :

3 phases stepper motor and Driver, Yako brand

Guide rail :

Linear square guide rail ( Hiwin,Taiwan)

Transmission :

Belt transmission

ontrol system :

Leetro MPC 6585

Control software :

LaserCut 6.1

Control panel :

DSP offline

Type of cooling :

Industrial chiller CW-3000 cooling

Blow-off system :

Air pump for the laser head Air blower for the machine

Voltage :

AC 220V±10% 50/60Hz, single phase or AC 110V±10% 50/60Hz, single phase

Description

**1600*1000mm High Precision Cloth Dotting Cutting Co2 Laser Cutting Machine 90W**

Name: 16001000mm High Precision Cloth Dotting Cutting Co2 Laser Cutting Machine 90W
Brand: UPGOAL
Price: 2800 USD

Application

Application industry: Marble engraving, Advertisement, Gift Package, Model.

Application Materials: Acrylic,crystal, marble, wood, paper, cloth, leather, rubber, glass, ceramic tile.

Features

Laser Head

Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.

Laser Tube

Adopted high quality Reci W2 90W Co2 laser tube, long working time time and stable

Working Table

Knife Strip Table: With oxidation treatment and low reflection ratio Ensured cutting quality

Beam Path System

Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.

Motion System

Imported High precision, low friction force and stand wear and Hiwin linear square guide rails and blocks with 3M belt ensured stable transmission, lower noise

Operation System

Advanced USB port Leetro MPC 6585 DSP control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .

With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.

Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.

Rationalized placement of the electronic parts. Optimized heat dissipation effect.

Cooling System

Industrial chiller CW-3000, ensuring the laser tube long time continus working.
