Small 90W Wood Co2 Laser Cutting Machine with RuiDa Control System 500*400mm
Small 90W Wood Co2 Laser Cutting Machine with RuiDa Control System 500*400mm
Small 90W Wood Co2 Laser Cutting Machine with RuiDa Control System 500*400mm
Small 90W Wood Co2 Laser Cutting Machine with RuiDa Control System 500*400mm
Small 90W Wood Co2 Laser Cutting Machine with RuiDa Control System 500*400mm
Small 90W Wood Co2 Laser Cutting Machine with RuiDa Control System 500*400mm
Small 90W Wood Co2 Laser Cutting Machine with RuiDa Control System 500*400mm
Small 90W Wood Co2 Laser Cutting Machine with RuiDa Control System 500*400mm
Specifications
Brand Name :
UPGOAL
Model Number :
UG-5040L
Certification :
CE/FDA
Place of Origin :
Jinan City, Shandong Province, China
MOQ :
1 set
Price :
USD 2010-USD 2250 FOB QINGDAO
Payment Terms :
T/T, L/C, Western Union, MoneyGram, D/A, D/P
Supply Ability :
200 sets/month
Delivery Time :
Within 7 working days
Packaging Details :
One plywood case, 1370*890*1030mm 160KG
Control panel :
DSP offline
Effective working area :
500*400mm
Type of cooling :
Water pump cooling
Blow-off system :
Air pump for the laser head Air blower for the machine
Laser Type :
Co2 sealed-off laser tube
Laser tube power :
90W, Reci W2
Voltage :
AC220V ±10%，50/60Hz, single phase or AC110V ±10%，50/60Hz, single phase
Working table :
Honey comb and knife strip, double working table
Driver mode :
Stepper motor and Driver, Yako brand
Guide rail :
Linear square guide rail ( Hiwin,Taiwan)
Transmission :
Belt transmission
ontrol system :
RuiDa 6442
Control software :
RDWorks V8
Description

Small 90W Wood Co2 Laser Cutting Machine with RuiDa Control System 500*400mm

Application

Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.

Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc

Materials Can work With: Organic glass, acrylic board (the paulownia, lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials

Features

Laser Head

Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.

Laser Tube

Adopted famous Reci W2 90W Co2 laser tube, more powerful, long time time and stable

Working Table

Honey Comb Table: applicable to various soft materials with Good adsorption effect and low reflection ratio.

Knife Strip Table: With oxidation treatment and low reflection ratio Ensured cutting quality

Auto Lifting Table:Maximum Loading 50kgs with 180mm up-down distance.

Beam Path System

Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.

Motion System

Imported High precision, low friction force and stand wear and linear guide rails and blocks with 3M belt ensured stable transmission, lower noise

Operation System

Advanced USB port RuiDa 6442 DSP control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .

With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.

Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color manag

ement and defining the working turns with different colors , All or a part work can done in one time.

Rationalized placement of the electronic parts. Optimized heat dissipation effect.

Technical parameters

Effective working area 500*400mm
Laser Type Co2 sealed-off laser tube
Laser tube power 90W Reci W2
Working table Honey comb and knife strip
Auto lifting table Up and down 180mm automatically
Driver mode Stepper motor and Driver, Yako brand
Guide rail Linear square guide rail ( Hiwin,Taiwan)
Transmission Belt transmission
Control panel English
Laser output control 1-100% software setting
Engraving speed 0-60000mm/min
Cutting speed 0-10000mm/min
Control system RuiDa 6442
Control software RDWorks V8
Design software when delivery CorelDraw
Control panel DSP offline
Resolution accuracy < 0.01mm
Location precision < 0.01mm
Highest scanning accuracy 2500DPI
Type of cooling Water pump cooling
Water protection system Yes
Blow-off system

Air pump for the laser head

Air blower for the machine
Biggest scanning accuracy 2500DPI
Working temperature 0-45 °C
Operating humidity 5-95% (without condensed water)
Supporting picture format PLT,DST,DXF,BMP, DWG,AI,LAS,etc
Voltage

AC 220V+10% 50/60Hz, single phase or

AC 110V+10% 50/60Hz, single phase or
Certificate CE/FDA

Reference Parts Photos

Co2 laser head with infrared positioning

Small 90W Wood Co2 Laser Cutting Machine with RuiDa Control System 500*400mmReci W2 90W Co2 laser tube

Small 90W Wood Co2 Laser Cutting Machine with RuiDa Control System 500*400mm

Small 90W Wood Co2 Laser Cutting Machine with RuiDa Control System 500*400mm

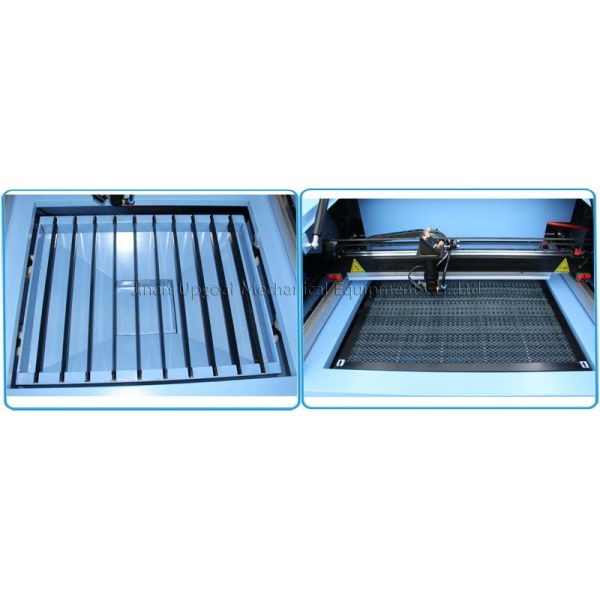

Double working table: honey comb and knife strip

Small 90W Wood Co2 Laser Cutting Machine with RuiDa Control System 500*400mm

Auto lifting table & auto focusing switch

Small 90W Wood Co2 Laser Cutting Machine with RuiDa Control System 500*400mmSmall 90W Wood Co2 Laser Cutting Machine with RuiDa Control System 500*400mm

Linear square guide rail & belt transmission

Small 90W Wood Co2 Laser Cutting Machine with RuiDa Control System 500*400mm

RuiDa 6442 control systemSmall 90W Wood Co2 Laser Cutting Machine with RuiDa Control System 500*400mm

Control cabinet

Small 90W Wood Co2 Laser Cutting Machine with RuiDa Control System 500*400mm

Power Socket & switchesSmall 90W Wood Co2 Laser Cutting Machine with RuiDa Control System 500*400mm

Dual LED & accessoriesSmall 90W Wood Co2 Laser Cutting Machine with RuiDa Control System 500*400mm

PackingSmall 90W Wood Co2 Laser Cutting Machine with RuiDa Control System 500*400mm

Reference Sample Photos

Small 90W Wood Co2 Laser Cutting Machine with RuiDa Control System 500*400mm

Small 90W Wood Co2 Laser Cutting Machine with RuiDa Control System 500*400mm

Reference Working Videos

https://www.youtube.com/watch?v=VW6r9TNq7kI
