Heavy Duty Metal Mold CNC Engraving Cutting Machine NcStudio/DSP offline Control 600*600mm

Application

Mould of Copper, Iron, aluminum, stainless steel. Shoe mould, mobile mould, Red Copper electrode, Building model, name tag, copper stamp.

Features

1.Heavy duty cast iron structure with vibration Temper aging treatment ensures no deformation for long time.

2.Cast iron Working table with platform moving type. Durable without deformation enable positioning more preciously .

3.Equipped with Hiwin Taiwan linear square guide rail for XYZ-axis, effectively improved the precision.

4.Three axis with precision ball screw transmission ensure the engraving speed and accuracy.

5.High variable speed 3.2KW water cooling spindle, big torque, longer life, strong cutting ability and continuous work for long time.

6.Leadshine hybrid servo motor and driver for XYZA-axis, compared with the stepper motor, ensuring high speed and precision working

7.Rationalized placement of the electronic parts. Optimized heat dissipation effect. Adopt high quality electronic parts, minimizing fault rate.

8.Stainless steel water slot cooling system, ensuring the cooling for the metal & hard materials, improving the processing precision.

9.Half closed cover design, and unique dust&water Proof design effectively protect the transmission parts from rust, dust &dirt.

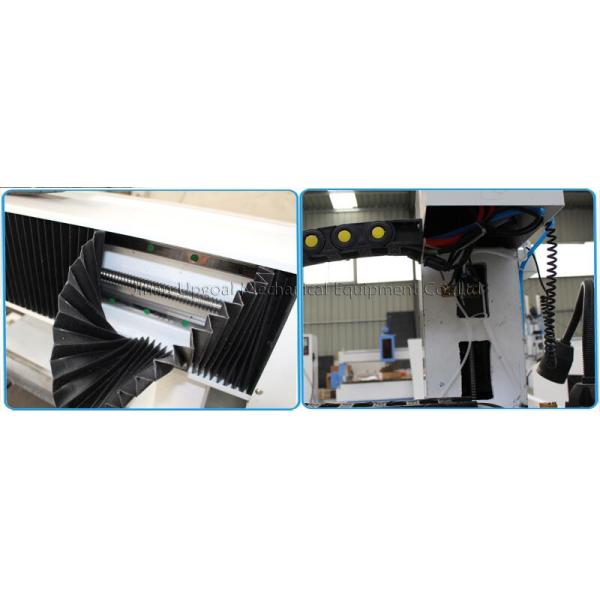

10. Elastic stainless steel Y-axis dust proof and XZ-axis has hard fiber dust proof.

11. PCI NcStudio control system, connect with the desktop computer, showing the processing path and estimate the processing time, more convenient. or DSP offline control system, when working no need computer, save the files into USB disk, more convenient and easy to operate.

12.Auto tool calibration, more convenient for operation.

13.Auto lubrication system, more convenient for machine lubricating.

14.With the function of Break-point memory ,power failure resuming and automatic home/orgin correction function.Effectively ensure long time working precision.

15.Working Pause, Speed adjust, Working depth adjust at any time while working. Preview the 2D&3D working result With simulation function. Variable Speed is suitable for various materials and industry.

16.Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.

Technical Parameters

Reference Parts Photos

3.2kw water cooling spindle

Reference Sample Photos

Reference Working Videos

https://www.youtube.com/watch?v=NqFseny9xNQ

For more information, just feel free to contact us!
