Leather Co2 Laser Engraving Machine with 90W Laser Tube/900*600mm Working Area
Leather Co2 Laser Engraving Machine with 90W Laser Tube/900*600mm Working Area
Leather Co2 Laser Engraving Machine with 90W Laser Tube/900*600mm Working Area
Leather Co2 Laser Engraving Machine with 90W Laser Tube/900*600mm Working Area
Leather Co2 Laser Engraving Machine with 90W Laser Tube/900*600mm Working Area
Leather Co2 Laser Engraving Machine with 90W Laser Tube/900*600mm Working Area
Leather Co2 Laser Engraving Machine with 90W Laser Tube/900*600mm Working Area
Leather Co2 Laser Engraving Machine with 90W Laser Tube/900*600mm Working Area
Specifications
Brand Name :
UPGOAL
Model Number :
UG-9060L
Certification :
CE/FDA
Place of Origin :
Jinan City, Shandong Province, China
MOQ :
1 set
Price :
USD 2000-USD 2050 FOB QINGDAO
Payment Terms :
T/T, L/C, Western Union, MoneyGram, D/A, D/P
Supply Ability :
200 sets/month
Delivery Time :
Within 7 working days
Packaging Details :
One plywood case,2.2CBM, 320kgs
Effective working area :
900*600mm
Laser Type :
Co2 sealed-off laser tube
Laser tube power :
Reci W2 90W
Working table :
Honey comb
Driver mode :
3 phases stepper motor and Driver, Yako brand
Guide rail :
Linear square guide rail ( Hiwin,Taiwan)
Transmission :
Belt transmission
ontrol system :
Leetro MPC 6585
Control software :
LaserCut 6.1
Control panel :
DSP offline
Type of cooling :
Water pump
Blow-off system :
Air pump for the laser head Air blower for the machine
Voltage :
AC 220V±10% 50/60Hz, single phase or AC 110V±10% 50/60Hz, single phase
Description
Leather Co2 Laser Engraving Machine with 90W Laser Tube/900*600mm Working Area

Application

A variety of fabrics can be cut into any graphics precisely which can be made into Sofas, tents, umbrellas, clothing, leather, soft cloth (cloth, leather, plush), car interior (seat covers, floor mats, cushion).

Features

Laser Head

Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.

Laser Tube

Adopted high quality Reci W2 80W Co2 laser tube, long working time time and stable

Working Table

Knife Strip Table: With oxidation treatment and low reflection ratio Ensured cutting quality

Beam Path System

Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.

Motion System

Imported High precision, low friction force and stand wear and Hiwin linear square guide rails and blocks with 3M belt ensured stable transmission, lower noise

Operation System

Advanced USB port Leetro MPC 6585 DSP control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .

With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.

Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.

Rationalized placement of the electronic parts. Optimized heat dissipation effect.

Cooling System

Water pump cooling

Technical parameters

Effective working area 900*600mm
Laser Type Co2 sealed-off laser tube
Laser tube power

W2 series, Reci, Beijing

(Rated power: 90W, max. Power: 100W)
Working table Honey comb
Driver mode 3 phases stepper motor and Driver, Yako brand
Guide rail Linear square guide rail ( Hiwin,Taiwan)
Transmission Belt transmission
Control panel English
Laser output control 1-100% software setting
Engraving speed 0-60000mm/min
Cutting speed 0-10000mm/min
Control system Leetro MPC6525A
Control software LaserCut 5.3
Design software when delivery CorelDraw
Control panel DSP offline
Resolution accuracy < 0.01mm
Location precision < 0.01mm
Highest scanning accuracy 2500DPI
Type of cooling Water pump cooling
Water protection system Yes
Blow-off system

Air pump for the laser head

Air blower for the machine
Biggest scanning accuracy 2500DPI
Working temperature 0-45 °C
Operating humidity 5-95% (without condensed water)
Supporting picture format PLT,DST,DXF,BMP, DWG,AI,LAS,etc
Voltage AC 220V+10% 50/60Hz, single phase
Certificate CE/FDA

Reference Parts Photos

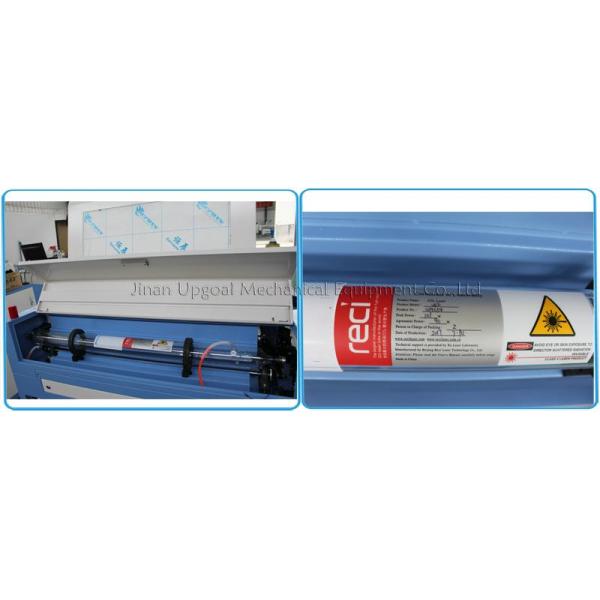

Reci W2 90W Co2 laser tube

Leather Co2 Laser Engraving Machine with 90W Laser Tube/900*600mm Working Area

Honey comb working table

Leather Co2 Laser Engraving Machine with 90W Laser Tube/900*600mm Working Area

Hiwin linear square guide rail & 3M belt transmission

Leather Co2 Laser Engraving Machine with 90W Laser Tube/900*600mm Working Area

Leetro control system

Leather Co2 Laser Engraving Machine with 90W Laser Tube/900*600mm Working Area

Swithces & power socket

Leather Co2 Laser Engraving Machine with 90W Laser Tube/900*600mm Working Area

Yako three phases stepper motor and driver

Leather Co2 Laser Engraving Machine with 90W Laser Tube/900*600mm Working Area

Accessories and packing

Leather Co2 Laser Engraving Machine with 90W Laser Tube/900*600mm Working Area

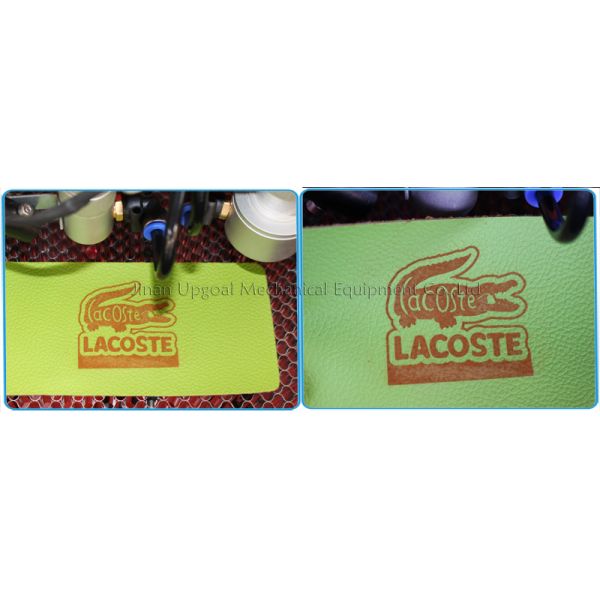

Reference Sample Photos

Leather Co2 Laser Engraving Machine with 90W Laser Tube/900*600mm Working Area

Reference Working Videos

https://www.youtube.com/watch?v=lscSO2BCFjA

For more information, just feel free to contact us!
