Max Payload 10kg FengHu VTOL Fixed Wing UAV Drone 75-100km/H Speed
Max Payload 10kg FengHu VTOL Fixed Wing UAV Drone 75-100km/H Speed
Specifications
Brand Name :
Hi-Cloud
Model Number :
FengHu VTOL Fixed Wing UAV
Certification :
ISO, others upon the requests
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 sets/month
Delivery Time :
20 working days
Packaging Details :
Transport Case
UAV weight(w/o payload) :
12kg
Maximum payload weight :
10kg
Flight speed :
75-100km/h
Control radius :
30km
Max. takeoff sea level :
4000m
Operation temperature :
-10 ~ 60℃
Description

Max. payload 10kg 75 to 100km/h speed FengHu VTOL Fixed Wing UAV max. takeoff sea level 4000m and duration 120-210min

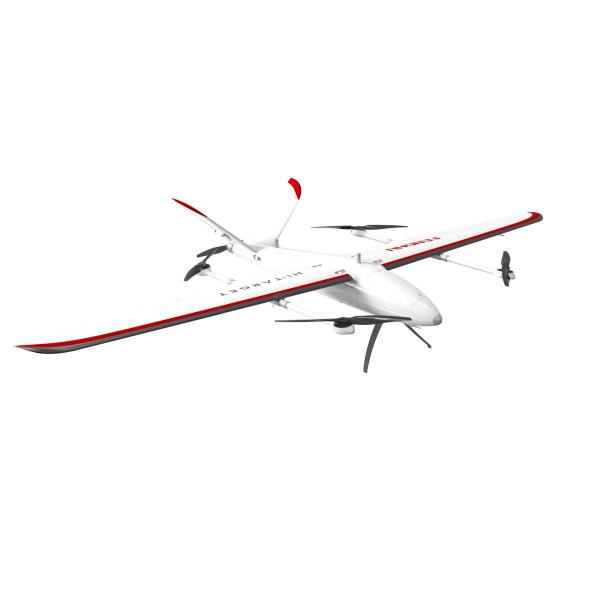

FengHu VTOL fixed wing UAV is a heavy-duty, pure electric VTOL fixed wing UAV for the application of long-range LiDAR by Wuhan Hi-Cloud Technology Co., Ltd. Its maximum load is 10kg, and the flight operation time is 2 hours when equipped with 6.5kg LiDAR. It can meet the requirements of different LiDAR sizes combined with the design of independent detachable large payload bay. The redundant power supply by dual engine which “pull forward and push backward” is adopted. With this system, it not only ensures the high reliability of flight, but also meets the requirements of large climb rate, and can easily cope with high drop terrain flight.

Specification:

FengHu VTOL Fixed Wing UAV

UAV weight(w/o payload) 12kg Duration 2h(with 6.5kg payload)
Wingspan 3.92m Max takeoff sea level 4000m
Body Length 1.92m Max wind resistance Level 6@takeoff/landing/cruise
Takeoff weight 25kg Operation temperature -10 ~ 60℃
Maximum payload weight 10kg Total duration 140~210min*
Economic cruise speed 75km/h Dimension 3914*1920*750mm
Maximum filght speed 100km/h Payload bay dimension 450*250*160mm(extendable)
Control radius 30km VTOL power source Electric
Communication distance 30km Takeoff and landing mode Fully autonomous VTOL
Max ascent speed 8m/s Level flight power source Electric
Max descent speed 5m/s Navigate mode GNSS-RTK/INS

Features:

  • High reliability: redundant power supply by dual engine; pull forward and push backward mode
  • Large climb rate: easily cope with high drop terrain flight
  • Intelligent control: pull forward and auto start-stop
  • Low current distribution: dual engine power, avoid continuous climbing, motor and ESC overheating protection
  • High cruise efficiency:operation time 2H with 6.5kg LiDAR
  • Large payload space: dimension of independent detachable payload bay 450*250*160mm
